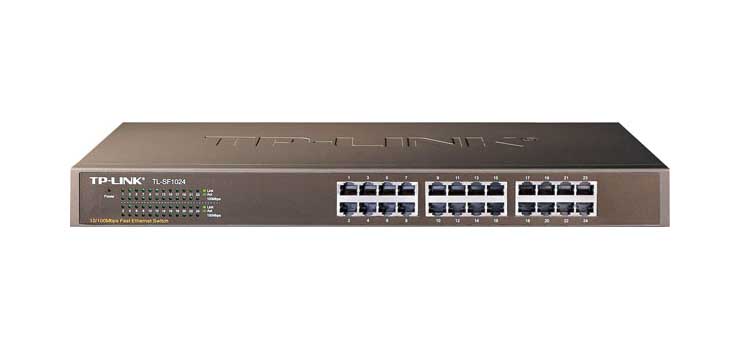

TL-SF1024 24 Port 100M Ethernet Switch

TP-Link TL-SF1024

D4189

DISCONTINUED

This item is no longer available to purchase.

Overview

This 24-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. Rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for less than 24 users environment. The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example) with the best speed. Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without a traditional hub

Features

  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
  • Supports MAC address auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity, 100Mbps
  • Standard 19-inch rack-mountable steel case
  • Internal universal power supply

Information & Downloads

  • Altronics Code: D4189
  • Manufacturer's Code: TL-SF1024
  • I/N: 3048
  • Shipping Weight: 2.99000Kg
  • Packaging Sizes
  • EACH: 1
  • CARTON: 12
  • Large Image 1

Specifications

  • Standards and Protocols: IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
  • Basic Functions:
  • - Wire-speed Performance
  • - MAC Address Auto-Learning and Auto-aging
  • - IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
  • Backbound Bandwidth: 4.8Gbps
  • MAC Address Table: 8k
  • Forwarding Rate
  • - 10BASE-T: 14880pps/port
  • - 100BASE-TX: 148800pps/port
  • Transmission Method: Store-and-Forward
  • Ports: 24 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
  • Network Media
  • - 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
  • - EIA/TIA-568 100

      • *Specifications are subject to change without notice.
