This Wi-Fi ESP32 WLED digital LED controller supports most addressable LED strips and provides the ability to customise LED lighting effects. It utilises an open source WLED control protocol compatible with popular LED strips using WS2811, WS2812B, WS2814A, SK6812, and others.

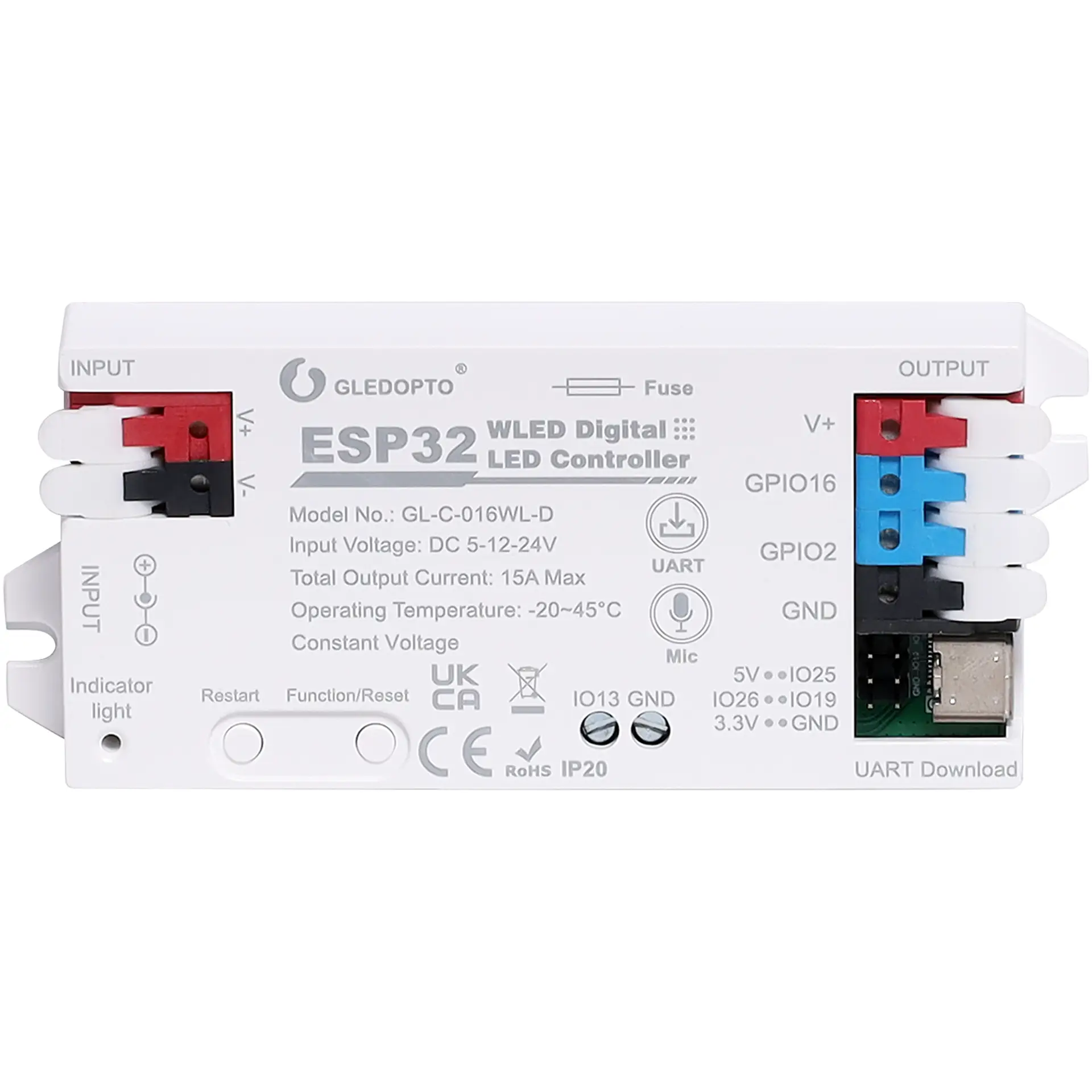

ESP32 Wi-Fi WLED Digital LED Controller

Name: ESP32 Wi-Fi WLED Digital LED Controller
SKU: X3331
Price: 35.91 AUD
Availability: InStock

SKU: X3331

The GL-C-016WL-D is a Wi-Fi ESP32 WLED digital LED controller supporting most addressable LED strips and provides the ability to customise LED lighting effects. It utilises a open source WLED firmware compatible with popular LED strips using WS2811, WS2812B, WS2814A, SK6812, and others.

$35.91

All Prices Shown are (ex GST)

Bulk Pricing

ea	$35.91
2+	$34.55
4+	$33.18

i h

Overview
Details
Warranty

Overview

This Wi-Fi ESP32 WLED digital LED controller supports most addressable LED strips and provides the ability to customise LED lighting effects. It utilises a open source WLED firmware compatible with popular LED strips using WS2811, WS2812B, WS2814A, SK6812, and others. LEDs can then be controlled and programmed using a PC or smart device (WLED app) allowing you to design your own flexible and scheduled lighting solutions for around the home or business. This model also features an in-built microphone for music light triggering. The unit is fitted with USB-C UART connection for programming. Power is provided using the terminals provided or 2.1mm DC jack socket.

Features:

Supports most addressable LED strip types (including Altronics X3222A, X3223A and X3216A).
Supports connection for two LED strips/channels.
10A max current load per channel.
Wi-Fi connection (2.4GHz).
Push button switch input.
DIY programmable lighting effects.
Stable and fast data transfer with UART download over USB C.
Microphone for music triggering.
Can be programmed and controlled via PC or smart device (WLED app).

Specifications:

Input Voltage: DC 5-12-24V
Total Output Current: 15A Max
Output Current/Channel: 10A Max
Protocol: WLED
Connectivity: Wi-Fi
Supported chips: WS2805, WS2811, WS2811F, WS2812B, WS2814A, WS2815, SK6812, SM16703, SM16703SP3, FL19038, FW1935, UCS2903B, etc
Material: Flame Retardant PC
Weight: 0.57kg
IP Rating: IP20
Size: 108x45x18mm

Details

Products specifications

Warranty	12 Months
