Circuit Breakers
A complete range of panel & flush mount breakers for both low and high current applications. Plus specialist auto blade fuse breakers, auto-reset, PCB, stud surface mount types and rocker switch breakers for protecting equipment from circuit issues. Thermal breakers provide excellent protection for equipment exposed to high temperature conditions.
S5621

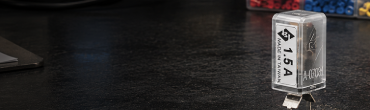

1.5A PCB Mount Auto Reset Circuit Breaker
Current Trip Rating: 1.5 Amp
All specifications at 25°C
Hold Current: 100% load indefinitely
Trip Current: Within 1 hr @ 175% load
Within 1 minute @ 200% load
Max. Voltage: 120V AC or 12V DC
Dimensions: 20.6H x 10.5L x 8.7W mm
$8.14
S5598

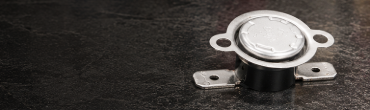

100 Degree N.O. Thermal Circuit Breaker
Self resetting. Breaks at 100C. 10 amps 250V AC. Mounting hole centres 23.5mm. Contact surface 16mm. Normally Open Contact, Auto Reset.
$5.00
S5890
100A Surface Mount IP67 Waterproof Circuit Breaker
High current weatherproof circuit breakers with manual reset switch. M6 terminal bolts.
$45.41
S5590
10A 250V Switch Circuit Breaker
This 10A illuminated panel mount circuit breaker is ideal for use in automotive circuits (both 12V and 24V DC systems) where you require the function of a circuit breaker and ON/OFF switch in the same compact package.
$8.14
S5560
10A Flush Mount Circuit Breaker
10A circuit breaker. Flush mount style. Snap-in fitting with coloured push button.
$9.32
S5510
10A Panel Mount Circuit Breaker
This 10A panel mount push button single pole circuit breaker uses a snap acting bimetal element to sense current overload. As the bimetal snaps through in response to an overload, it opens the electrical contacts and allows the reset button to pop out.
$9.32
S5630
10A PCB Mount Auto Reset Circuit Breaker
Current Trip Rating: 10 Amp
All specifications at 25°C
Hold Current: 100% load indefinitely
Trip Current: Within 1 hr @ 175% load
Within 1 minute @ 200% load
Max. Voltage: 120V AC or 12V DC
Dimensions: 20.6H x 10.5L x 8.7W mm
$8.14
S5893
150A Surface Mount IP67 Waterproof Circuit Breaker
High current weatherproof circuit breakers with manual reset switch. M6 terminal bolts.
$45.41
SX5592
15A 250V Switch Circuit Breaker
15A switch circuit breaker with spade lug connection. 15A 250V rated with 250V red neon.
$3.18
S5565
15A Flush Mount Circuit Breaker
15A circuit breaker. Flush mount style. Snap-in fitting with coloured push button.
$9.32
S5515
15A Panel Mount Circuit Breaker
This 15A panel mount push button single pole circuit breaker uses a snap acting bimetal element to sense current overload. As the bimetal snaps through in response to an overload, it opens the electrical contacts and allows the reset button to pop out.
$9.32
SX5500
15A Waterproof Circuit Breaker
Rated at 15A @ 250V AC. Screw on waterproof boot. Spade lug connection.
$3.59
S5566
16A Flush Mount Circuit Breaker
16A circuit breaker. Flush mount style. Snap-in fitting with coloured push button.
$9.32
S5894
200A Surface Mount IP67 Waterproof Circuit Breaker
High current weatherproof circuit breakers with manual reset switch. M6 terminal bolts.
$51.36
S5520
20A Panel Mount Circuit Breaker
This 20A panel mount push button single pole circuit breaker uses a snap acting bimetal element to sense current overload. As the bimetal snaps through in response to an overload, it opens the electrical contacts and allows the reset button to pop out.
$9.32
S5896
250A Surface Mount IP67 Waterproof Circuit Breaker
High current weatherproof circuit breakers with manual reset switch. M6 terminal bolts. 250A
$63.59
S5525
25A Panel Mount Circuit Breaker
This 25A panel mount push button single pole circuit breaker uses a snap acting bimetal element to sense current overload. As the bimetal snaps through in response to an overload, it opens the electrical contacts and allows the reset button to pop out.
$9.32
S5622
2A PCB Mount Auto Reset Circuit Breaker
Current Trip Rating: 2 Amp
All specifications at 25°C
Hold Current: 100% load indefinitely
Trip Current: Within 1 hr @ 175% load
Within 1 minute @ 200% load
Max. Voltage: 120V AC or 12V DC
Dimensions: 20.6H x 10.5L x 8.7W mm
$8.14
S5897
300A Surface Mount IP67 Waterproof Circuit Breaker
High current weatherproof circuit breakers with manual reset switch. M6 terminal bolts. 300A
$66.32
S5530
30A Panel Mount Circuit Breaker
This 30A panel mount push button single pole circuit breaker uses a snap acting bimetal element to sense current overload. As the bimetal snaps through in response to an overload, it opens the electrical contacts and allows the reset button to pop out.
$9.32
S5883
30A Surface Mount IP67 Waterproof Circuit Breaker
30A high current weatherproof circuit breakers with manual reset switch. M6 terminal bolts.
$45.41
S5535
35A Panel Mount Circuit Breaker
This 35A panel mount push button single pole circuit breaker uses a snap acting bimetal element to sense current overload. As the bimetal snaps through in response to an overload, it opens the electrical contacts and allows the reset button to pop out.
$9.32
S5583
3A 250V Switch Circuit Breaker
This 3A illuminated panel mount circuit breaker is ideal for use in automotive circuits (both 12V and 24V DC systems) where you require the function of a circuit breaker and ON/OFF switch in the same compact package.
$8.14
S5553
3A Flush Mount Circuit Breaker
3A circuit breaker. Flush mount style. Snap-in fitting with coloured push button.
$9.32
S5503
3A Panel Mount Circuit Breaker
This 3A panel mount push button single pole circuit breaker uses a snap acting bimetal element to sense current overload. As the bimetal snaps through in response to an overload, it opens the electrical contacts and allows the reset button to pop out.
$9.32
