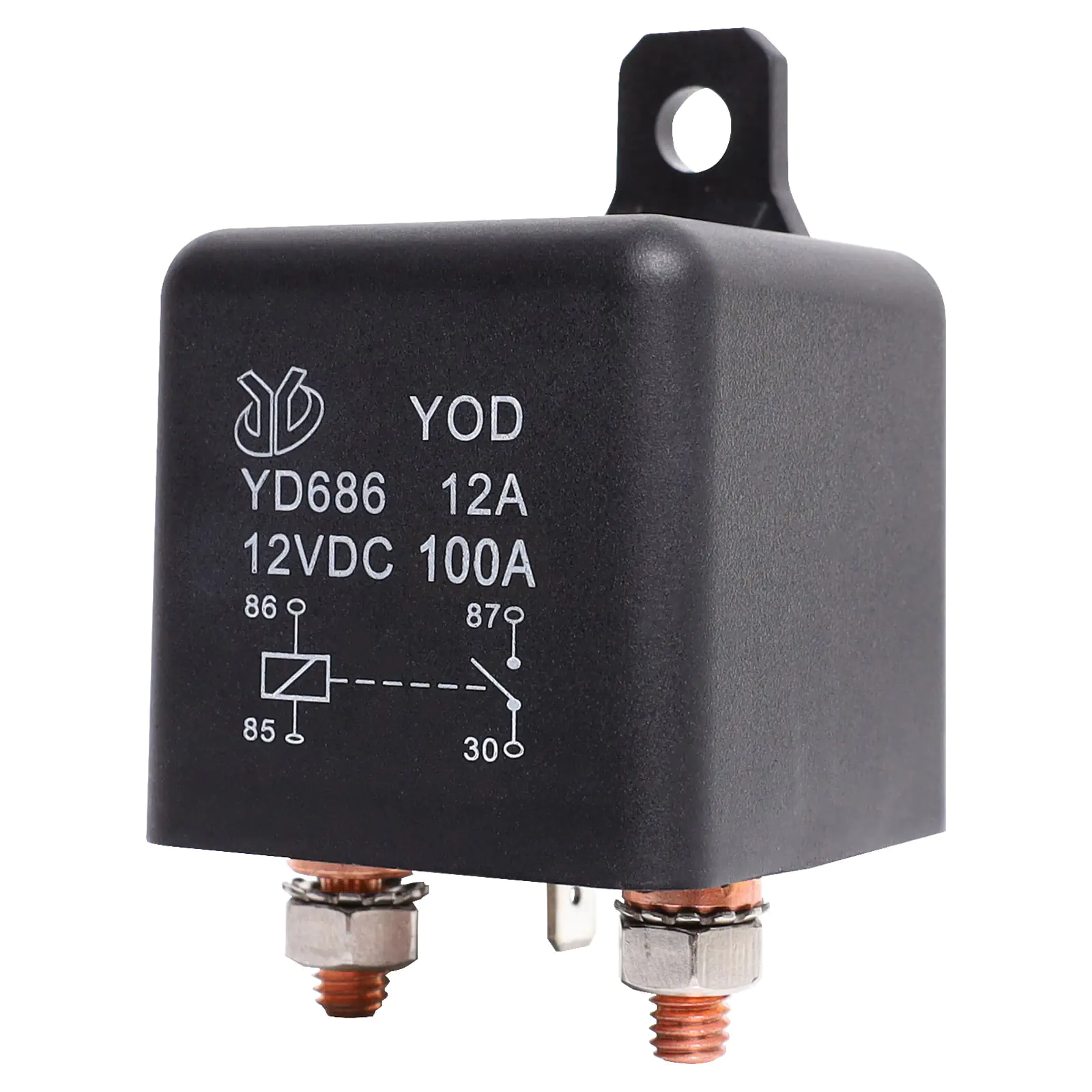

100A 12VDC High Current SPST Automotive Relay

SKU: S4345
Suitable for high current DC automotive applications. Not suitable for AC use. M6 bolt for contact load connection. 6.3mm spade terminals for contact coil connection.
$19.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $19.09
10+ $17.18
40+ $15.27
i h

Overview

Suitable for high current DC automotive applications. Not suitable for AC use. M6 bolt for contact load connection. 6.3mm spade terminals for contact coil connection.



Specifications:



Max DC switching: 40V @ 100A / 1400W

Contact material: Silver alloy

Coil resistance: 60Ω

Max coil power: 2.4W

Insulation resistance:  >100MΩ @ 500V DC

Dielectric strength (for 1 min): 500V AC between open contacts

750V AC between coil & contact

Connection: (Coil 6.3mm & M6 bolt for contact load)

Life: 100,000 operations electrical, 10 million mechanical

Dimensions: ≈ 46W x 46L x 77H mm

Details

Products specifications

Warranty 12 Months
Switches
Type Automotive
Contacts SPST

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
