ATTINY85-20PU 8 Pin DIL Atmel Microcontroller.

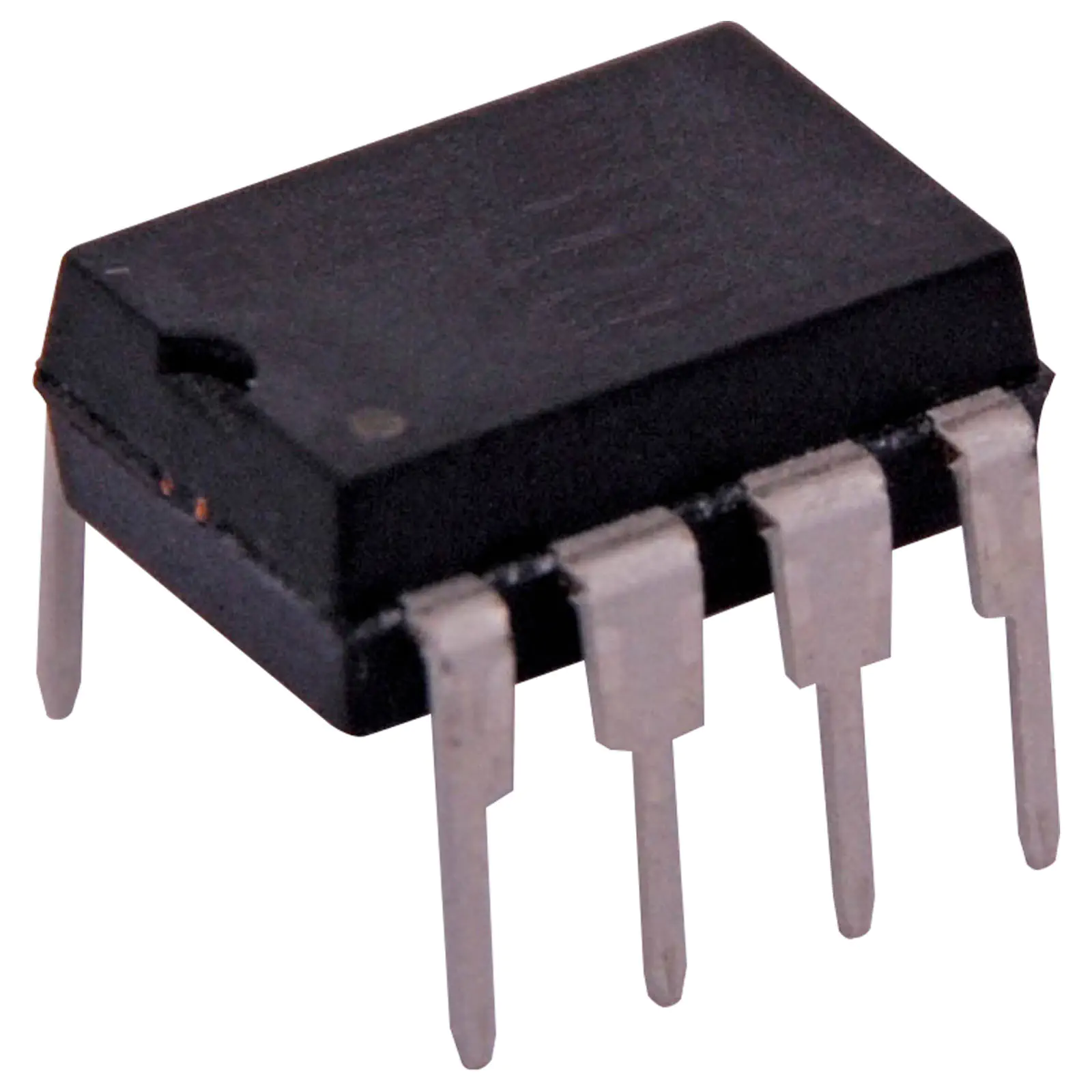

Atmel AVR ATTINY85-20PU 8 Pin

Name: Atmel AVR ATTINY85-20PU 8 Pin
SKU: Z5105
Price: 6.14 AUD
Availability: InStock

SKU: Z5105

ATTINY85-20PU 8 Pin DIL Atmel Microcontroller.

$6.14

All Prices Shown are (ex GST)

Bulk Pricing

ea	$6.14
5+	$5.68
10+	$5.41

i h

Overview
Details
Warranty

Overview

The Z 5105 is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 512B EEPROM, 6 general purpose I/O lines, 32 general purpose working registers, one 8-bit timer/counter with compare modes, one 8-bit high speed timer/counter, USI, internal and external Interrupts, 4-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, three software selectable power save modes and debugWIRE for on-chip debugging.

The device achieves a throughput of 20 MIPS at 20 MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Applications
• Building Automation
• Communications & Networking
• Consumer Electronics
• Motor Drive & Control
• Industrial
• Sensing & Instrumentation

Features

High-performance, Low-power AVR® 8-Bit Microcontroller
Advanced RISC Architecture
Non-volatile Program and Data Memories
debugWIRE On-chip Debug System
In-system Programmable via SPI Port
External and Internal Interrupt Sources
Low-power Idle, ADC Noise Reduction and Power-down Modes
Enhanced Power-on Reset Circuit
Programmable Brown-out Detection Circuit
Internal Calibrated Oscillator
0 to 20MHz at 4.5 to 5.5V Speed Grade
1MHz, 1.8V, 300µA Active Mode, 0.1µA at 1.8V Power-down Mode Low Power Consumption

Specifications

CPU Speed: 20MHz

Controller Family/Series: ATtiny

Embedded Interface Type: I2C, SPI

MCU Case Style: DIP

MSL: MSL 3 - 168 hours

No. of I/O's: 6

No. of Pins: 8

Packaging: Each

Program Memory Size: 8KB

RAM Memory Size: 512Byte

SVHC: No SVHC (15-Jun-2015)

Supply Voltage Max: 5.5V

Supply Voltage Min: 2.7V

Details

Products specifications

Warranty	12 Months
Components
Type	ATMEL AVR
