This receiver is compatible with FOB433 remotes. The receiver is small and can be easily installed into your existing automatic gate opener or garage door controls.

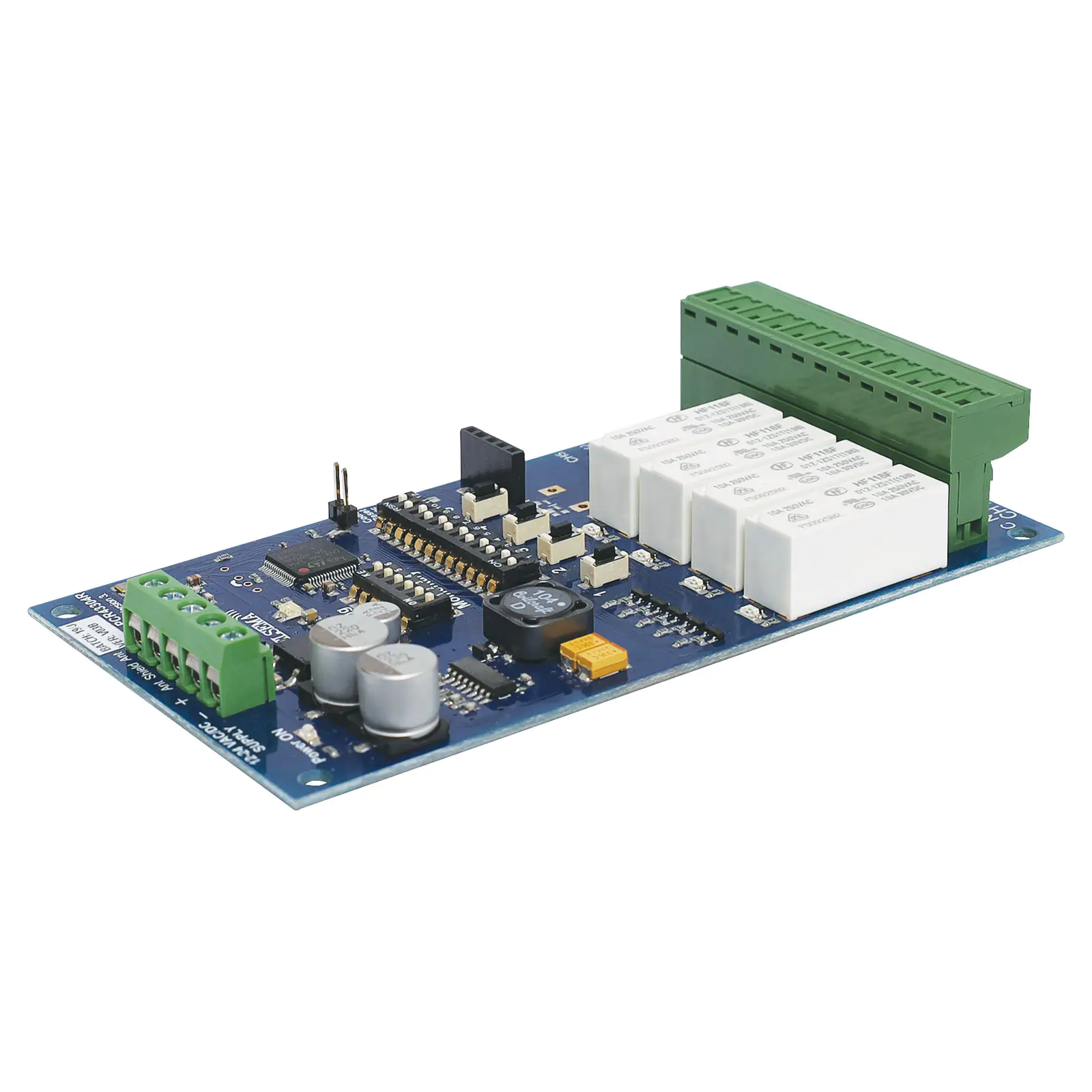

PCR43304R 433Mhz 4 Channel Receiver

Name: PCR43304R 433Mhz 4 Channel Receiver
SKU: A1029A
Price: 159.05 AUD
Availability: InStock

by: Elsema

SKU: A1029A

This receiver is compatible with FOB433 remotes. The receiver is small and can be easily installed into your existing automatic gate opener or garage door controls.

$159.05

All Prices Shown are (ex GST)

Bulk Pricing

ea	$159.05
2+	$152.27
4+	$145.41

i h

Overview
Details
Warranty
Downloads

Overview

This receiver is compatible with A1017A, A1021A and A1022A remotes. These can be found in accessories listed below. The Receiver has four relay outputs which can be switched “on” and “off ” independently. The relays are capable of switching loads of up to 10 Amps at 240Volts AC.

The PentaCODE® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

With the 12-way dip switch, just match the keyring remotes and the receiver’s dip switch and it’s coded. With the encrypted code you switch all the 12-way dip switches OFF and the remote and receiver automatically goes into the encrypted coding. Please see coding instructions for encrypted coding procedure.

Applications

Keyless access control for automatic gates and doors

Equipment and machinery control for factories and warehouses

Home automation i.e. garden lights, swimming pool control etc.

Security, lighting and automotive controls

Anywhere else you need a wireless signal to transmit a contact closure

Specifications:

Supply Voltage: 12 to 24 Volts AC or DC

Standby Current: 15 mA stand by at 24VDC

Current Consumption: 91 mA with all relays “On”

Frequency Band: 433.100 to 434.700MHz

Receiver Sensitivity: 0.316uV (-117dBm)

Operating Temperature Range: -5 to 50°C

Receiver Memory Storage: Unlimited Remotes

Decoding System: Encrypted 17 billion codes combinations or On board 12-way code switch

Outputs: 4 change over relay outputs, rated at 10 Amps 240VAC each.

Relay Contacts: Common (C) , Normally Closed (NC) & Normally Open (NO)

Connections: Supply and Antenna is a screw type terminal block, Relay outputs are plug-in type terminal block

Antenna 1: ANT433 series for long range applications. Antenna wire for short range applications

Antenna 2: Use second antenna for extended range

Operating Range: Refer to the remote control or transmitter data sheet

Dimensions: 130 x 70 x 27mm

Weight: 136g

Useable Transmitters: FOB433 series and PCK series

Features:

Frequency hopping between 433.10 to 434.70MHz
12-way DIP switch or encrypted coding
Momentary and latching modes are user selectable.
Unlimited remotes can be programmed to the receiver
Antenna diversity for robust link with extended range
Compatible with PentaFOB® and PentaCODE® remotes
Wide operating supply voltage and low current consumption
On-board diagnostic LED’s to indicate correct power, reception and relay activation

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
