These 1 channel high definition, HDMI&#8200equipped, modulation systems will allow you to distribute any HD devices (Foxtel, DVD etc) in true HD around the home or business with ease. Both models are fitted with a HDMI loop through for local playback.

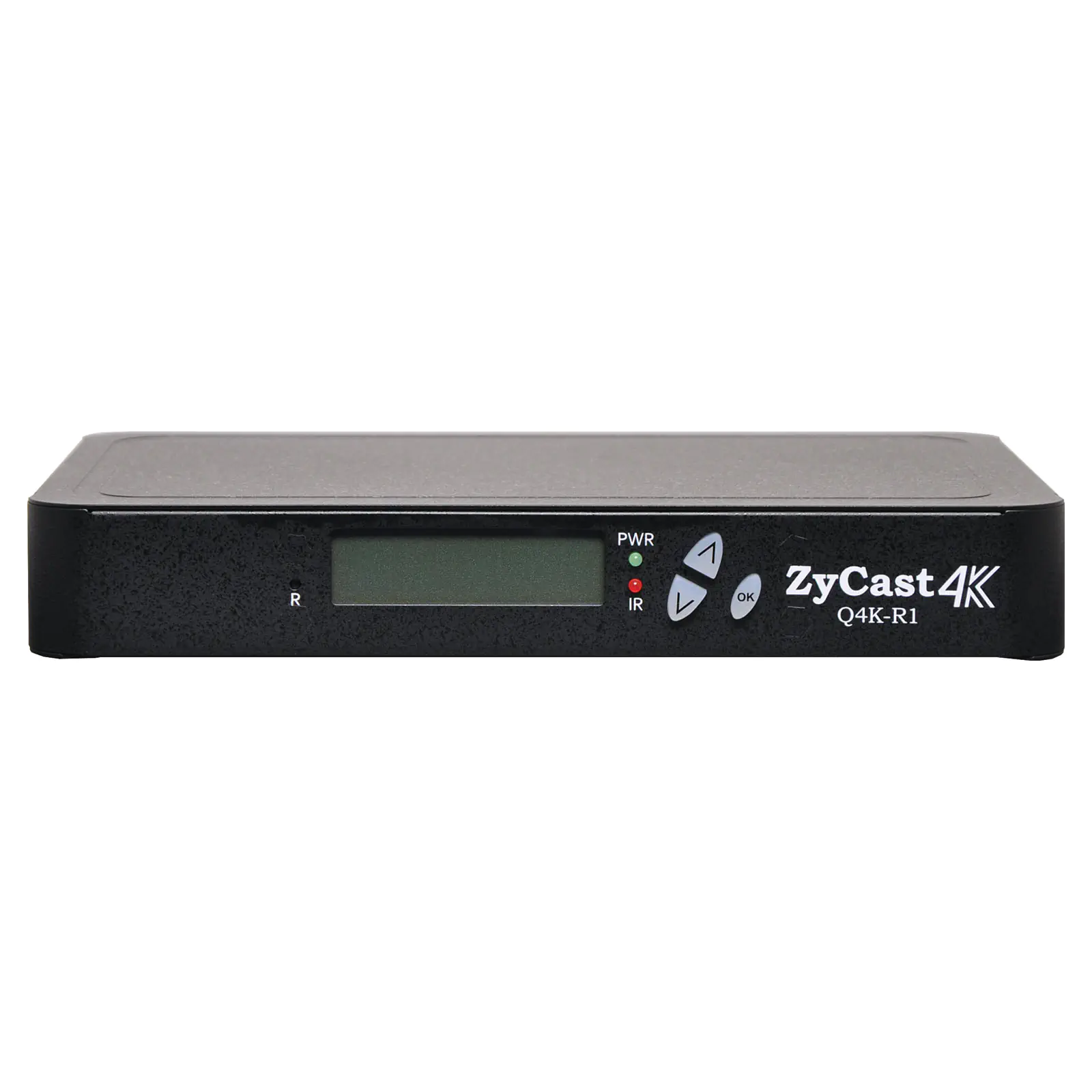

HDMI RF Digital DVB-T Loop Through 4K Modulator

Name: HDMI RF Digital DVB-T Loop Through 4K Modulator
SKU: A1125B
Price: 635.45 AUD
Availability: InStock

by: digi-MOD

SKU: A1125B

These 1 channel high definition, HDMI equipped, modulation systems will allow you to distribute any HD devices (Foxtel, DVD etc) in true HD around the home or business with ease. Both models are fitted with a HDMI loop through for local playback.

$635.45

All Prices Shown are (ex GST)

Bulk Pricing

ea $635.45

i h

Overview
Details
Warranty
Downloads

Overview

The replacement of the industry's most popular modulator,HD-1603, accepts a 4K signal and will loop-through that same signal, however modulated signal is still limited to 1080P, due to the limitations with TV tuners.

Like the HD1603, the Q4K-R1 supports Resi-linx IR targets and emitters. Resi-linx are the market leader in both IR and modulation and the only brand to have Foxtel approved product in both fields.

This unit has full menu via LCD display, improved MER resulting in higher quality picture and is configurable for New Zealand. Q4K-R1 allows you to distribute any HD source around your home/business installation over coax cable and control with ease.

Features:

Most cost effective fully featured 4K HD modulator on the market
Single input digital modulator encoding HD video and stereo audio signals to MPEG-4 only(H.264) DVB-T COFDM TV channels
Compatible input resolutions 576i/720P/1080i& 1080P/UHD/4K for high definition picture quality (ensure TV tuner is MPEG4/H.264 and 4K HDCP2.2 compatible)
HDMI input-with HDMI loop through for local connectivity
IR return path- compatible with resi-linx RL-RF380(video hub) and Rl-RF210(IR target)
Superior error rate (MER 39)
Full function front LCD display with menu driven configuration
New Zealand channel plan selectable
2K/8K carriers
Adjustment of settings available via WEB GUI
Remote management with a PC
Adjustable VHF/UHF output (6-69)
85dB launch with adjustable attenuation
Compact design
Silent operation - NO FAN NOISE!

Specifications:

Video / Audio Input:

HDMI 2.0

Connectors: Dual (One for Input ; One for Loop-through)

Audio: Embedded PCM

HDCP Compliance: 1.4 and 2.2

Resolution: 4k/UHD/1080p/1080i/720p

Output:

QAM:

Standard: DVB-T

Connector: 1x “F” Female

Frequency Range: 177.5MHz to 816.5MHz (Ch6-Ch69)

Output Level: 85 dBµV Typical, (With 20dB Range Manually Adjustable)

Flatness Across Full: ±2dB

Band MER: 39 dB Typical

Carrier (OFDM Mode): 2K/8K

Guard Intervals: 1/32

Code Rate (FEC): 7/8

Modulation: 64-QAM

Output Impedance: 75 ohm

RF Output Return Loss: 10 dB Typical

LCN: Embedded, Varies by Country Regulations

Video/ Audio Encoding Profile:

Video:

Resolution: 1080p / 1080i / 720p

Video Codecs: H.264

Audio:

Audio Codecs: MPEG1 Layer II, MPEG4 AAC

General:

Local Monitoring: LCD

IR Emitter: Single

Web GUI Supported: Firefox, Chrome, Safari

Password Protected: GUI:User Settable

Power Supply: 12VDC 1.5A

Consumption: 6.5 Watts

Operation Temperature: 0°C to +45°C

Storage Temperature: 20°C to +70°C

Dimension: 236mm x 145mm x 34mm

Language: English

Details

Products specifications

Warranty	12 Months
Audio Visual
Type	Digital Modulators

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Brochure

PDF

Instructions

PDF
