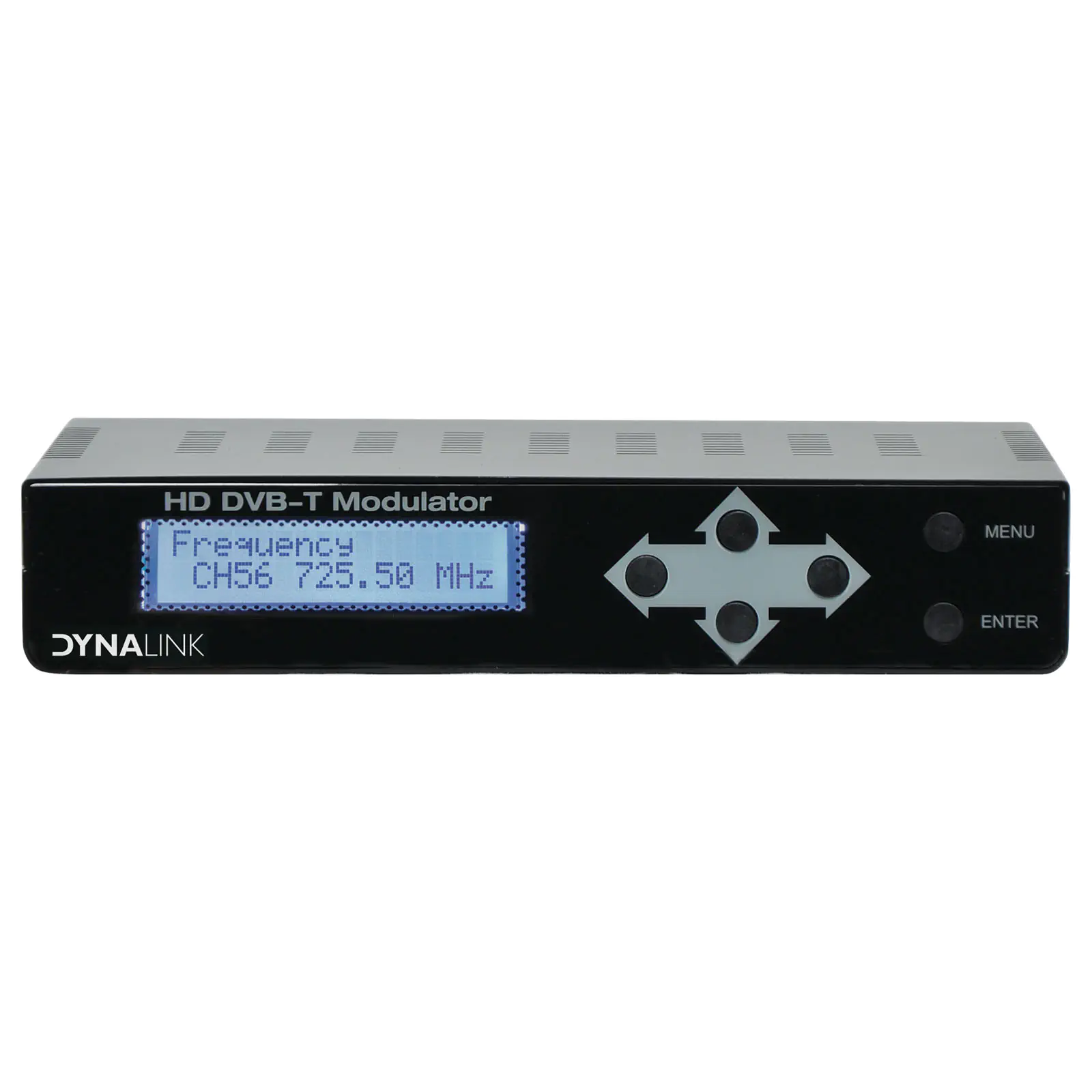

HDMI RF Digital DVB-T Modulator

by: Dynalink
SKU: A1127A
A high performance HD modulator for HDMI sources with IR return path and HDMI loop through.
$480.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $480.91
2+ $440.91
4+ $399.09
i h

Overview

A high performance HD modulator for HDMI sources with IR return path and HDMI loop through. This modulator allows you to distribute any HD device signals (Foxtel, DVD etc) in HD around the home or business with ease. Combined with infra-red targets and emitters full remote control of AV devices at the location of each television is available. Ideal for retro-fitting/upgrading older analogue modulator installations.

Package Contents:
1 x HDMI DVB-T Modulator
1 x IR Emitter
1 x IR Receiving Eye
1 x 12V Power adapter
1 x User Manual



Features:

  • 1080p modulated resolution
  • HDMI loop through
  • 1080 HDMI input
  • H.264 video compression
  • 30dB MER (typical)
  • 100BuV ±5 output level
  • RF TV antenna input
  • 38-56kHz IR frequency
  • 9V IR pass over RF
  • Includes power supply





Specifications:



Source Input:

Input Channel: 1

Video: HDMI

Video System: 480i/p, 576i/p, 720p, 1080i/p

Audio System: HDMI



Compression:

Video: H.264 Baseline Profile Level4.0

Video Resolution: 1080p 25 / 30 Max

Video Bit Rate: 12Mbps MAX

Audio: MPEG-2 / AAC

Audio Bit Rate: 192 Kbit/S

DVB insertion tables: SDT, NIT

Editable Fields: Service Name, Network Name, Provider Name, TS ID, Network ID, Original NET ID, LCN, NIT Version, Private Data, Country



RF Output:

Type: 1 Multiplex DVBT with a digital TV service

Frequency: 177 – 858 MHz

MER: 30dB Typically

Output Level: 100dBuV ±5

RF Level Adj: 0dB~20dB

Attenuation Step: 1dB per step



Connections:

HDMI IN: HDMI IN

HDMI OUT: HDMI Pass Through

RF Output: RF output (providing accessory power supply 9 volts DC for IR pass)

DC Switch: Power supply 9 volts DC for IR Pass

RF Input: RF Combiner

USB: Firmware Upgrade

IR Out: IR Emitter Output

Modulation: Standard: DVBT (ETSI EN 300 744)

Constellation: QPSK, 16QAM, 64QAM

Guard Interval: 1/4, 1/8, 1/16, 1/32

Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8

FFT Carriers Mode: 2K, 8K

Bandwidth: 6MHz, 7MHz, 8MHz, 7-8MHz

Power Supply: 12V Adapter

Display: LCD panel @ 2 x 16 characters (on front panel).

Environmental for operating: Temperature range: 5°C - 40°C, Relative Humidity: 80% @ 30°C



IR Receiving Eye:

Freq. range: 100 -900 MHz

Insertion loss: 3.0dB Typical

Return path signal freq: 7.0MHz

IR freq.: 20-60KHz

Impedance: 75ohm

Power Consumption: 9mA
