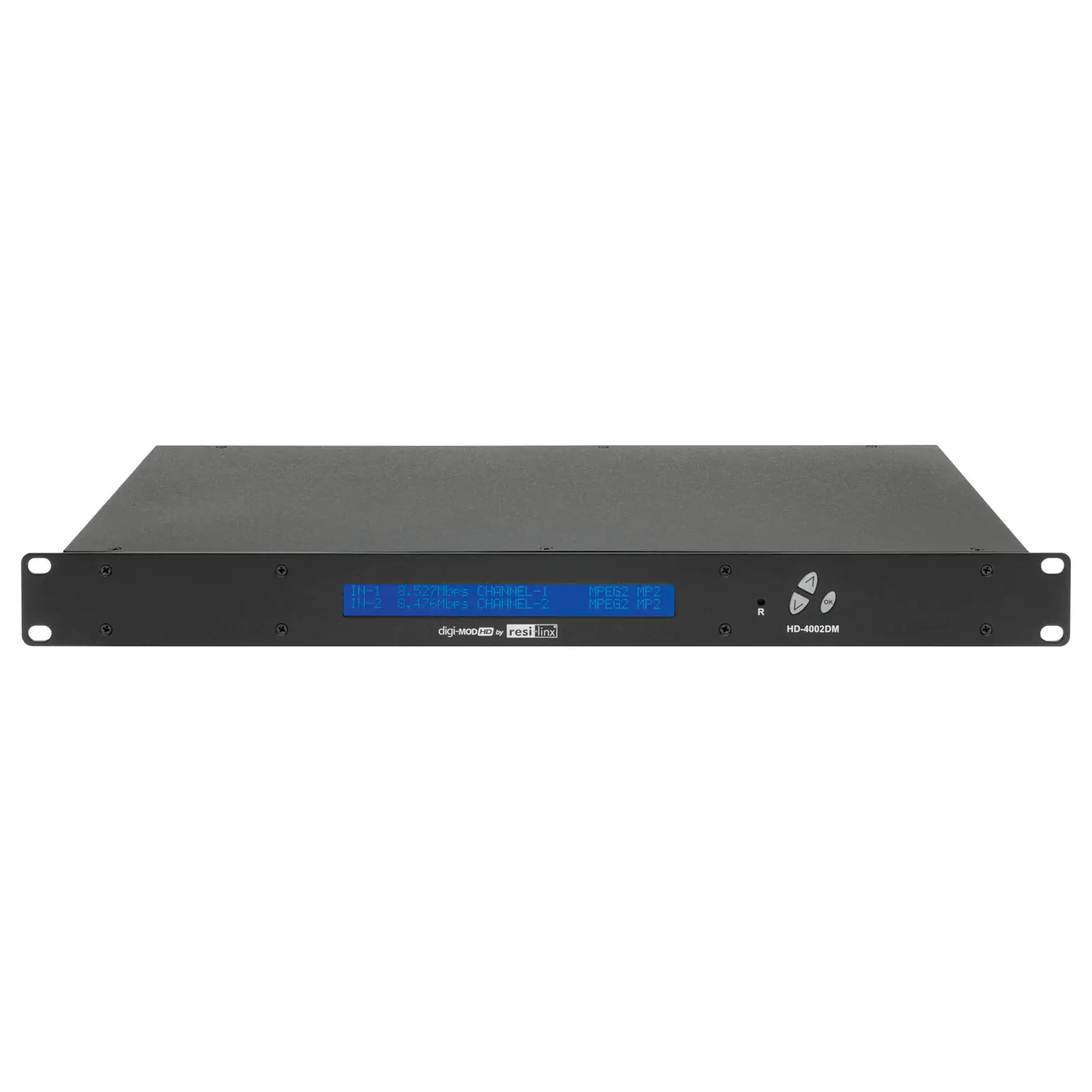

HD-4002DM Quad Input HDMI DVB-T HD Digital Modulator

by: digi-MOD
SKU: A1130
Quad input high definition DVB-T modulator that converts HD video and audio signals to digital COFDM DVB-T channel. HD-4002DM
$5,453.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $5,453.64
i h

Overview

This new high definition, HDMI equipped, modulator system will allow you to distribute any HD devices (Foxtel, Austar, DVD etc) in true HD around the home or business with ease. Transmit sources to secondary locations over a single 75Ω coaxial cable. Each AV input can be assigned its own dedicated TV channel. It allows the connected sources to be viewed at multiple locations simultaneously, depending on the splitters used. Selecting the desired source is as simple as changing channels on your TV. Ideal for retro-fitting/upgrading older analogue modulator installations. Includes power supply.

All Digi-MOD HD and IP products support HDCP.



Features:

  • Quad Input High Definition DVB-T Modulator that converts HD video and audio signals to digital COFDM DVB-T Channel
  • Dual Mode - MPEG-2 & AVC (MPEG-4) Encoding
  • Distributes 576i / 720P / 1080i / 1080P picture quality (1080P only available on AVC)
  • HDMI, Component, CVBS & Analogue Audio Inputs
  • Programmable; Channel, Network Names and LCN
  • Full function front LCD display for adjustments
  • Remote Access and control GUI via Web browser
  • Emergency Announcement System control (EAS) input
  • Internal FAN Cooling System for Long Life Span
  • 2K/8K Carriers
  • Adjustable VHF / UHF Output (6-69)
  • 20 dB Adjustable Attenuation (98dB launch)
  • 1RU Rack Mountable
  • Distributes on any new or existing RF cable
  • Most Affordable Price Point for HD distribution
  • Installed within minutes – plug n play technology





Specifications:

Video Inputs (Video by Priority):

HDMI: 1.4V

Component: YprPb (RCA)

Composite: CVBS (RCA)



Audio Inputs:

Audio Inputs: L/R (RCA)



Video Encoder:

Mode: MPEG-2, MPEG-4(AVC)

Video Resolutions: 1080p (AVC Only), 1080i, 720p, 576p, 576i, 480p, 480i



Audio Encoder:

Audio Compression: MPEG-1 Layer II, AAC, AC-3 (Optional), AC-3 Pass Through



RF DVB-T Support:

Frequency: Channel Plan - Varies by Country

RF Channel Output: 4 multiplexed on to 2 RF Output

Constellation: 64QAM (16QAM)

Bandwidth: 7 MHz

RF Level Output: 100dB

MER: >40dB Typical

FEC: 1/2, 2/3, 3/4, 5/6, 7/8

Guard Interval: 1/4, 1/8, 1/16, 1/32

OFDM: 8K (2K)

Attenuation: 1-20dB (1dB steps)

RF Output: "F" - Female 75 ohm

Closed Captioning Control: By Selection (use of CVBS Input)



EAS Support:

Connection: Terminal Type

Video Input: CVBS (RCA)

Audio Input: L/R (RCA)



ASI Support:

Connection: 75Ω (BNC)

Output: TS Multiplexed

IP Output: - not available

Management / Control:

Front Panel LCD Control: Full Support (Up/Down/OK Buttons)

GUI: IE9, Firefox, Chrome, Safari

Password Protected: Front Panel, GUI



General:

Rack Mountable (1RU): 482.7mm x 240mm x 44.4mm - 19" EIA Standard

Internal Fan Cooled: Dual Internal

LCD Front Panel: Dual Line, Scrolling Display

Details

Products specifications

Warranty 12 Months
Audio Visual
Type Digital Modulators

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
