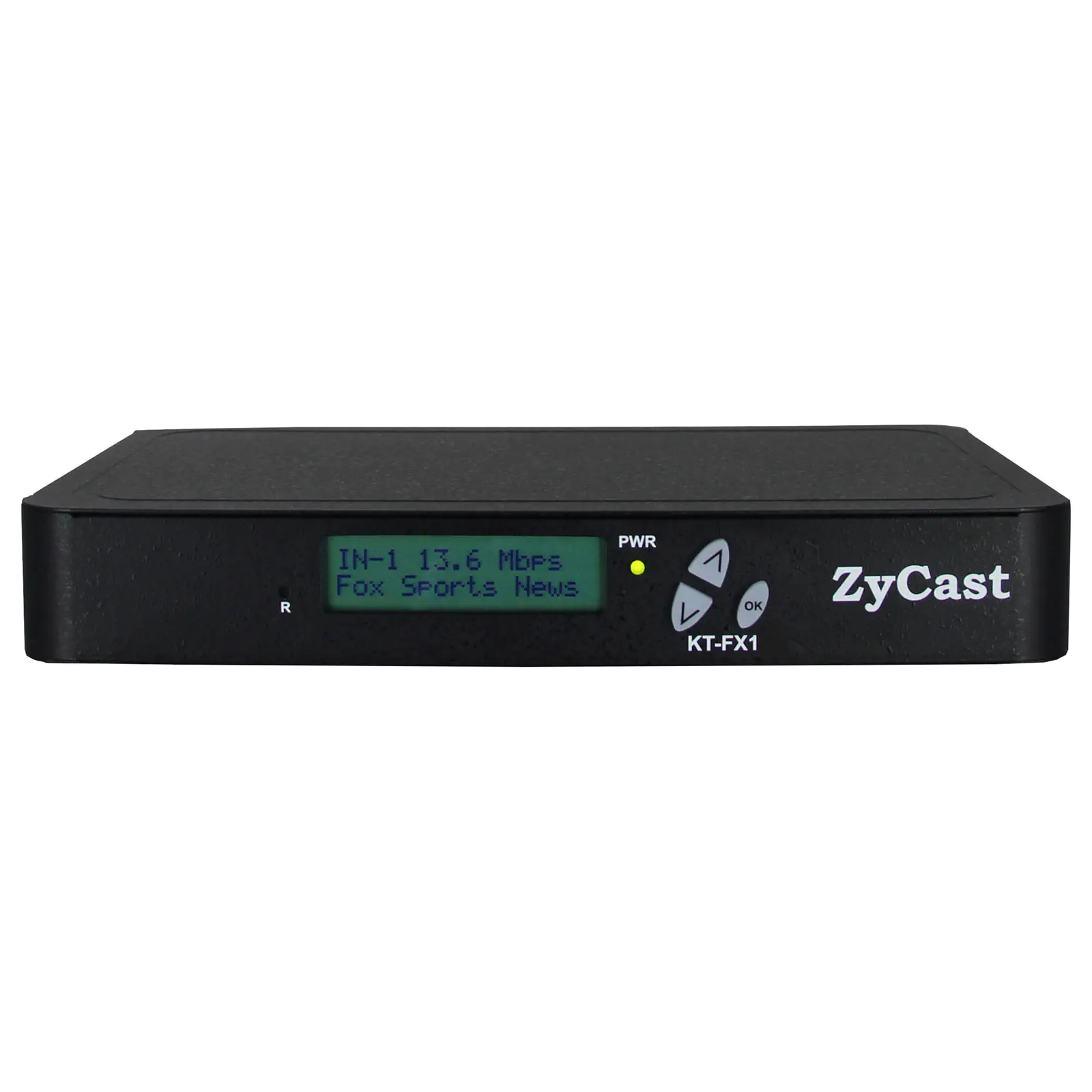

KT-FX1 HDMI RF 1 Channel DVB-T HD Digital Modulator

by: digi-MOD
SKU: A1160
Developed specifically for the commercial AV distribution market and the only Foxtel approved modulator on the market. Encodes HDMI signal to any DTV channel, providing an easy way to distribute AV signals throughout buildings.
$1,327.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $1,327.27
i h

Overview

The digi-MOD KT-FX1 is developed specifically for the commercial AV distribution market and the only Foxtel approved modulator on the market. Encodes HDMI signal to any DTV channel, providing an easy way to distribute AV signals throughout buildings. Pre-programmed with a Foxtel-approved channel listing and with an output level of 90dB and MER of >38dB, the KT-FX1 makes use of video compression via H.264 AVC (MPEG-4) and audio compression via MPEG Layer II/AAC to distribute a crystal-clear HD picture over new or existing coaxial cable. Can be programmed via front panel or easy to use web based user interface. A 1161 adds HDMI loop through connection and delay adjustable audio output for connection to local PA system.





Specifications:



Input:

Number of inputs: 1

Video Input: HDMI

Video Input Level: 0.7 - 1.4V (Peak to Peak)

Video mode: PAL

Audio input: Stereo

Audio input level: 0.4 to 4.8V (Peak to Peak)



Output:

Frequency Range: 177.5 MHz to 816.5 MHz (6 to 69)

HDMI loop through: No

Output level: 85dB

MER: >38dB



Delayed Audio:

Delayed audio output: No

Delay: -

Connection type: -



Modulation:

Video Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video compression: H.264 AVC (MPEG-4)

Audio compression: MPEG Layer II / AAC

Video bitrate SD: 1Mbps to 9Mbps (Default 5Mbps)

Video bitrate HD: 12Mbps to 24Mbps (Default 24Mbps)

LCN: AU (APN)

Carrier: 2K/8K

GI: 1/32

FEC: 7/8

Constellations: 16 QAM/64 QAM



Management / Programming:

Front LCD: Yes

Web GUI: Yes



General:

Power supply type: External

Power supply: 12VDC 1.5AMP

Redundant PSU: No

Operating temperature: 0°C to +45°C

Storage temperature: 0°C to +60°C

Dimensions: 236mm x 145mm x 34mm

Weight: 0.88kg

Details

Products specifications

Warranty 12 Months
Audio Visual
Type Digital Modulators

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
