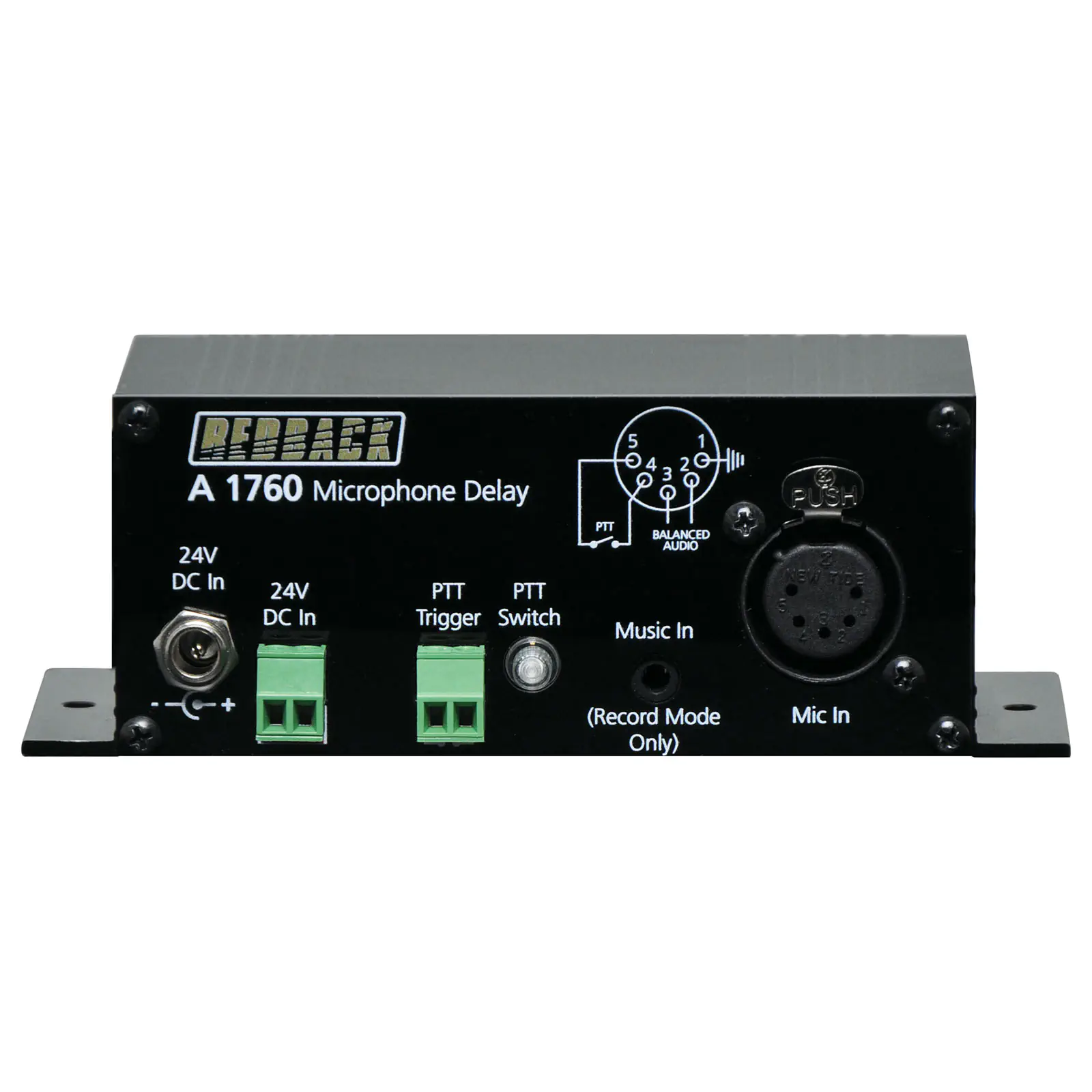

Microphone Delay/Mic-Line Recorder

by: Redback
SKU: A1760
This unit has three modes of operation, determined by DIP switches, which include an Audio Delay, a Microphone Recorder and an Audio Recorder.
$362.73

All Prices Shown are (ex GST)
Bulk Pricing
ea $362.73
2+ $335.45
i h

Overview

Designed to be connected in-line between a microphone and an amplifier to remove feedback issues which arise when paging is executed in close proximity to the output speakers. This is achieved by delaying the output audio. The audio into the mic input will be recorded while the PTT contacts are closed. Once the PTT contacts open, the message will be played back. It can also operate as a mic or line input recording device. In this mode the recordings are activated/deactivated by a momentary closure of PTT contacts. In this mode there is no delayed audio playback. All recordings are stored on the Micro SD card. Up to 999 recordings can be stored on the card before they are overwritten automatically.



Features:

  • Australian designed & manufactured
  • Helps eliminate feedback issues in paging installations
  • 5 pin XLR input
  • Micro SD card recording
  • Audio delay or recording modes
  • PTT recording activation
  • Selectable ON/OFF audio output
  • Optional pre-announcement chime (custom MP3, OGG or WAV)
  • 24V DC input





Specifications:



Frequency Response:

Mic input : 50Hz - 12kHz, -3dB

Music input: 50Hz - 15kHz, -3dB



Input Sensitivity:

5 pin XLR Mic input: 3mV

3.5mm Music input: 1V



Input Connectors:

Mic Input: 5 pin XLR balanced

Music Input: 3.5mm stereo socket

24V DC power: Screw terminals

24V DC power: 2.1mm DC Jack

PTT Trigger: Screw terminals



Output Sensitivity:

3 pin XLR Mic output: 3mV



Output Connectors:

Output Active closing contact: Screw terminals

Mic output: 3 pin XLR



General:

PTT Activitation: PTT via 5 Pin XLR microphone switch or PTT Screw terminals or PTT switch

Controls: LED Indicator: Ready, Recording, Busy, Playing, No SD Card

Audio File Formats: mp3, .ogg or .wav

Power Supply: 24V DC 1Amp

Current Draw: 40mA @ 24V DC

Dimensions: 134mm(L) x 75mm(D) x 46mm(H)

Weight: 0.2kg





10 year warranty

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

australian made

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.
