Australian Made

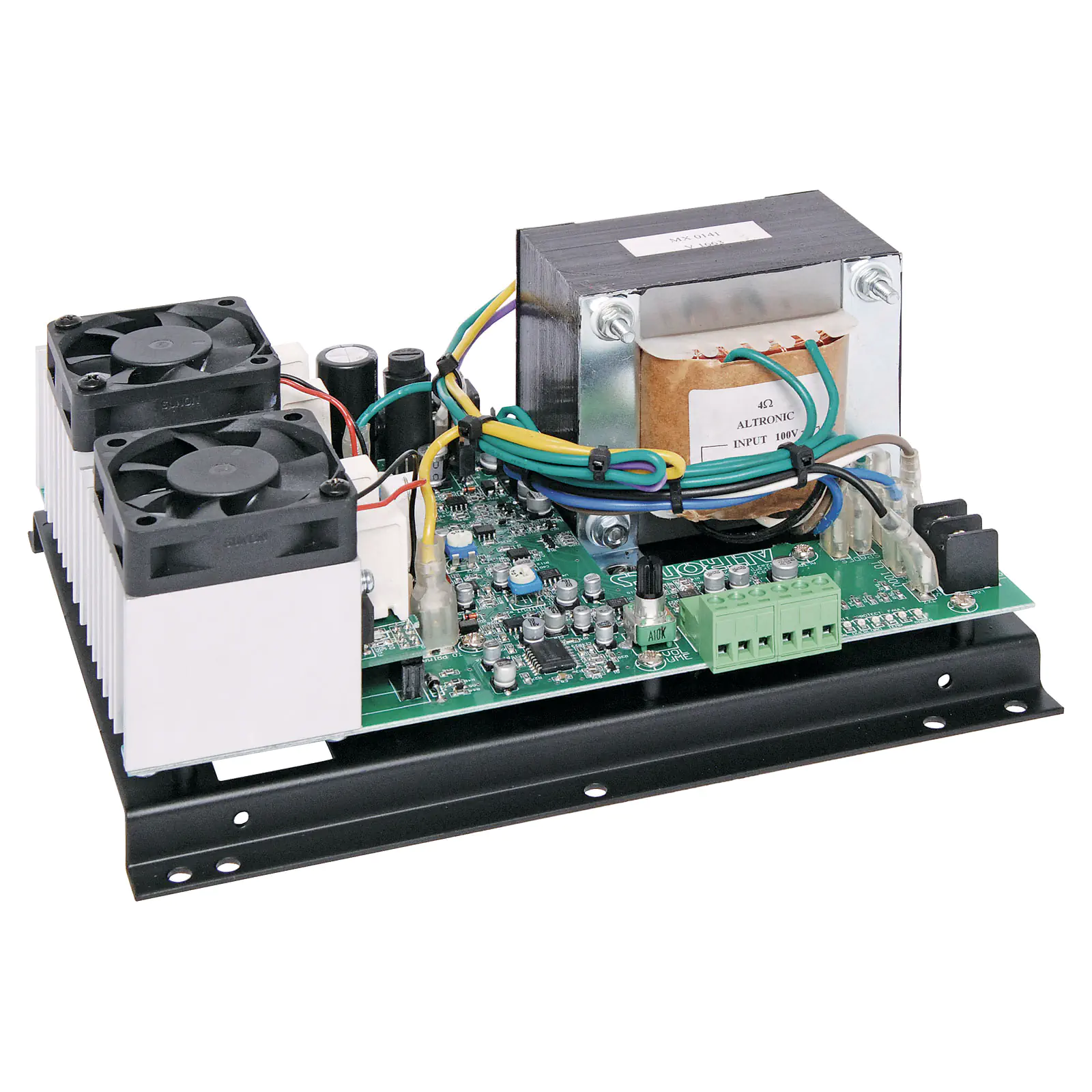

PA Amplifier Module 120W

by: Redback
SKU: A1932A
This module is designed for use in emergency evacuation systems and is powered by an external 24V DC source. It accepts a line level audio input and produces a 100V line output via a transformer.
$495.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $495.45
2+ $463.64
i h

Overview

This module is designed for use in emergency evacuation systems and is powered by an external 24V DC source. It accepts a line level audio input and produces a 100V line output via a transformer. It also features short circuit, overload and thermal cutout protection, and is constructed on a steel chassis. Designed with reliability and robust performance in mind, it is the ideal audio power source for evacuation systems, or any application which requires a DC powered 100V line amplifier.



Features:

  • Powered by nominal 24V DC
  • 100V line audio output
  • Line level audio input - 600mV
  • Short circuit, overload, and thermal cutout protection
  • Bolt-in chassis construction
  • Australian designed and assembled





Specifications:

Output Power: 120W RMS

Current Draw: 8A at full load, 220mA Quiescent

Freq. Response: 50Hz - 12kHz

Distortion: < 0.6%

Signal to Noise Ratio: -91dB

Sensitivity: 600mV RMS

Fuse Rating and Type: 7.5A M205

Dimensions: 210W x 170D x 87Hmm





10 year warranty

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

australian made

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Details

Products specifications

Warranty 10 Years
Professional Audio
Type Power PA Amplifiers
Output 100 Volt Line Amplifiers

Warranty

WARRANTY

We offer 10 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
.pdf
Brochure
PDF
