Australian Made

Attenuator Volume Control 5 Zone Evac 40W / 100V Line

by: Redback
SKU: A2347
May be configured to either five single inputs to five outputs or one input to five outputs. Each zone has a 40W and 100W load capacity respectively, with a total panel capacity of 200W and 500W.
$377.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $377.27
2+ $327.27
i h

Overview

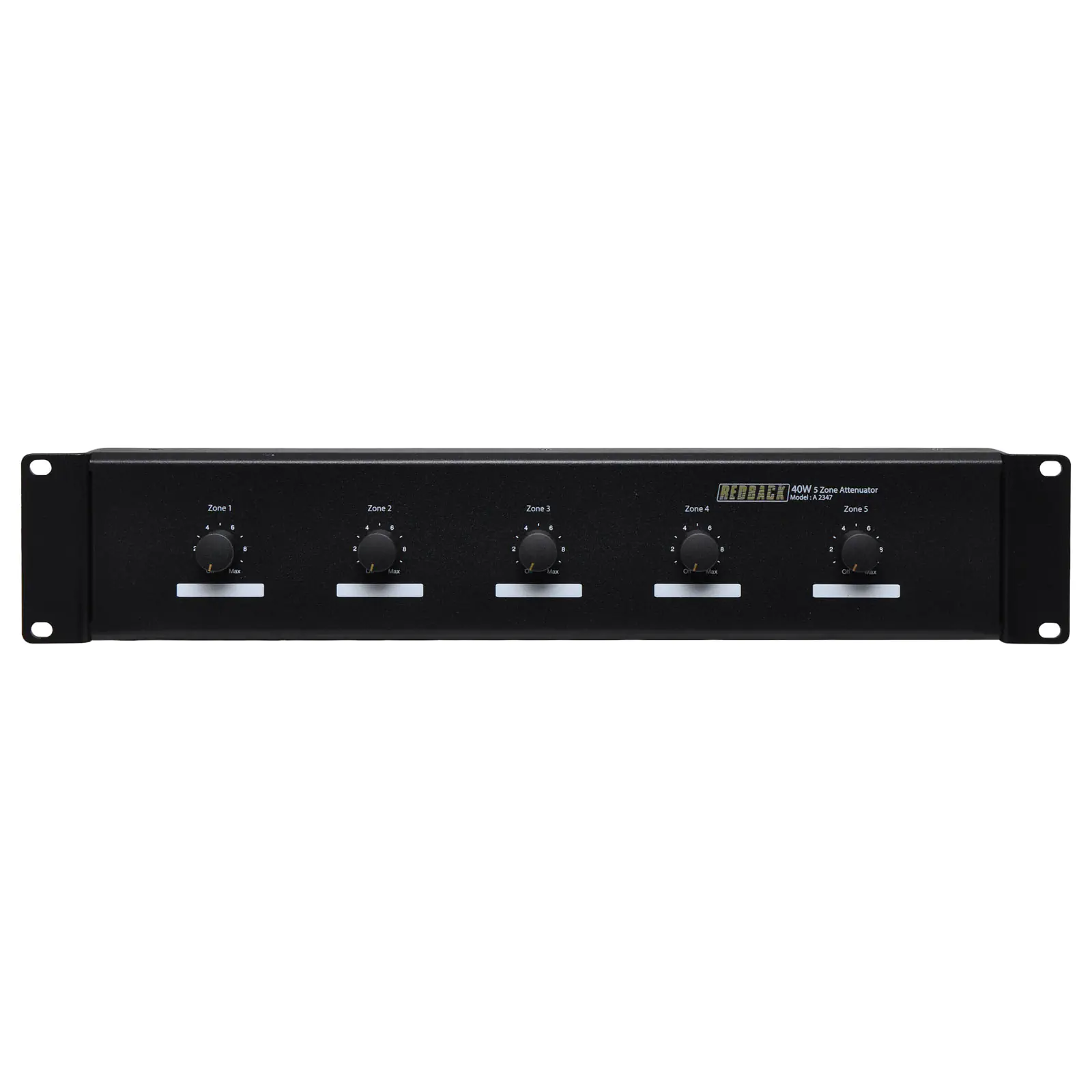

This Attenuator Volume Control 5 Zone Evac 40W / 100V Line can be configured as either five single inputs to five outputs or one input to five outputs. Each zone has a 40W load capacity, with a total panel capacity of 200W. This model has six settings plus off. The input and outputs are connected via heavy duty screw terminals on the rear panel. They are housed in a 2 unit rack panel and are supplied with an engraving strip to label the speaker zones. Suitable for 100V line commercial PA systems only.



Specifications:

Power rating: 200W (40W per zone)

Relay override operation voltage: 24V DC

Dimensions: 484W x 50D x 88H mm

Weight: 2.3kg












10 year warranty

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

australian made

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Details

Products specifications

Warranty 10 Years
Professional Audio
Type 100V Line Volume Controls

Warranty

WARRANTY

We offer 10 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
.pdf
Brochure
PDF
