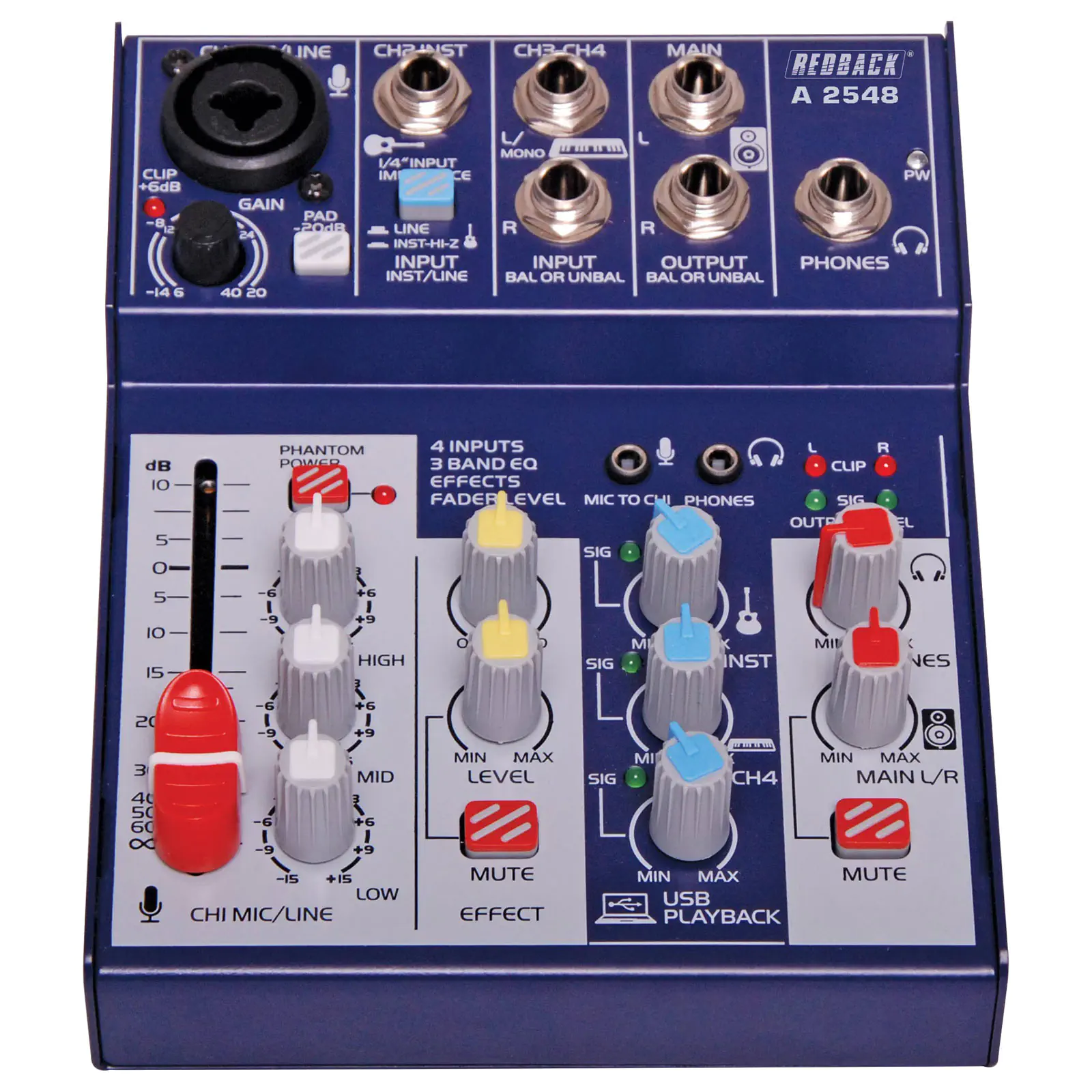

A perfect little mixer companion for your PC/laptop for home recording. Measuring only 124mm wide it takes up very little desk space whilst still offering features found on mixers twice the size - such as fader level control, three band EQ and effects.

4 Channel Mixer With USB Output & Effects

Name: 4 Channel Mixer With USB Output & Effects
SKU: A2548
Price: 90.00 AUD
Availability: InStock

by: Redback

SKU: A2548

Save $36.36 $90.00 ~~$126.36~~

All Prices Shown are (ex GST)

Bulk Pricing

ea	$90.00 $126.36
2+	$90.00 $113.64

i h

Overview
Details
Warranty
Downloads

Overview

A perfect little mixer companion for your PC/laptop for home recording. Measuring only 124mm wide it takes up very little desk space whilst still offering features found on mixers twice the size - such as fader level control, three band EQ and effects. The low noise mic preamp offers excellent performance for small home studios or use in the field. Powered by USB (5V DC @ 0.5A min). Type ''B'' connection

Please Note: This mixer includes a USB cable for external USB 500mAh power source. You can also use M 8861C if required.

Features:

Ultra compact design with USB PC interface
Windows & Mac OSX compatible
Powered via USB
High/low/mid 3 band EQ
Fader level control
48V phantom power button
Mute buttons
3.5mm headphone output and mic input
Channel -14dB to +40dB gain control
Signal input and clip indicators
-20dB pad switch

Specifications:

Inputs:

Ch 1: Mic/Line -14 to +14dB

Ch 2: Inst/Line (impedance switching)

Ch 3/4: Line

Equalisation:

Low: 80Hz ±15dB

Mid: 2.5kHz ±15dB

High: 12kHz ±15dB

General:

Output: USB/3.5mm Headphones

Signal LED: -3dB

Sampling frequency: 48kHz 16-bit

Power: 5V DC @ 0.5A

Dimensions: 124W x 157D x 40Hmm

Weight: 600g

Details

Products specifications

Warranty	12 Months
Professional Audio
Type	Mixer Desks

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Instructions
