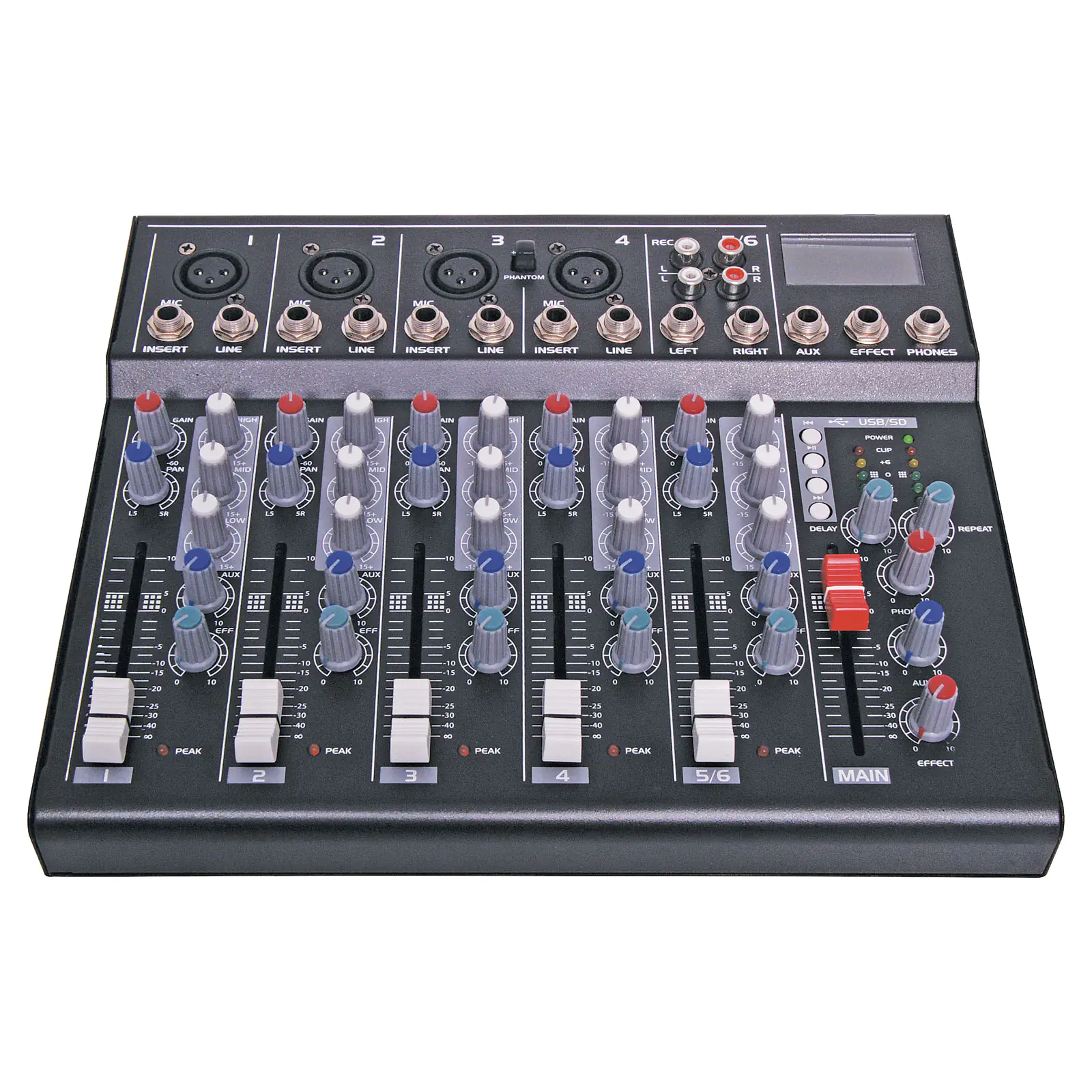

6 Channel Mixing Desk With USB Playback

by: Redback
SKU: A2651
This compact high performance desk mixer is ideal for live/stage sound mixing in small applications such as theatre, bands, function centres and venues. It offers added flexibility for audio playback with a USB and SD card input on the rear panel.
Save $90.91 $180.91 $271.82

All Prices Shown are (ex GST)
Bulk Pricing
ea
$180.91 $271.82
2+
$180.91 $240.91
i h

Overview

This compact high performance desk mixer is ideal for live/stage sound mixing in small applications such as theatre, bands, function centres and venues. It offers added flexibility for audio playback with a USB and SD card input on the rear panel. Playback is controlled via the transport controls located next to the dual VU meters.
Channels 1 to 4 are identical and feature:
- balanced XLR, unbalanced 6.35mm and insert input for external effects
- separate high, mid, low frequency controls
- gain, effects level and left/right pan.

Channels 5 and 6 are combined on the single fader and feature the same adjustments. Dual 6.35mm outputs (L & R) are provided for connection to amplifier. Includes power supply

Important: USB/SD & channel 5/6 are a combined input, if used simultaneously, this will result in a mixed output



Features:

  • All inputs top mounted for easy access
  • Dual 6.35mm TRS outputs
  • LED VU meters
  • USB/SD card MP3 playback with transport controls
  • Repeat and delay effects
  • External effects send & return
  • Phones/monitor output & level
  • Selectable phantom power
  • Gain, monitor, effect, pan, high, mid & low levels controls on all channels
  • Record RCA output
  • LCD readout for USB playback





Specifications:

Mic: +14dB to +60dB (120dB SNR)

Line: -6dB to +38dB (95dB SNR)

Stereo: -8dB to 15dB (96dB SNR)

Equalisation

Low: 50Hz ±15dB

Mid: 700Hz ±15dB

High: 10KHz ±dB

Main outputs: +28dB bal / +22dB unbal.

Frequency response: 20Hz - 20KHz

Power: 12V AC

Dimensions: 270W x 235D x 68Hmm

Weight: 2kg

Details

Products specifications

Warranty 12 Months
Professional Audio
Type Mixer Desks

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
