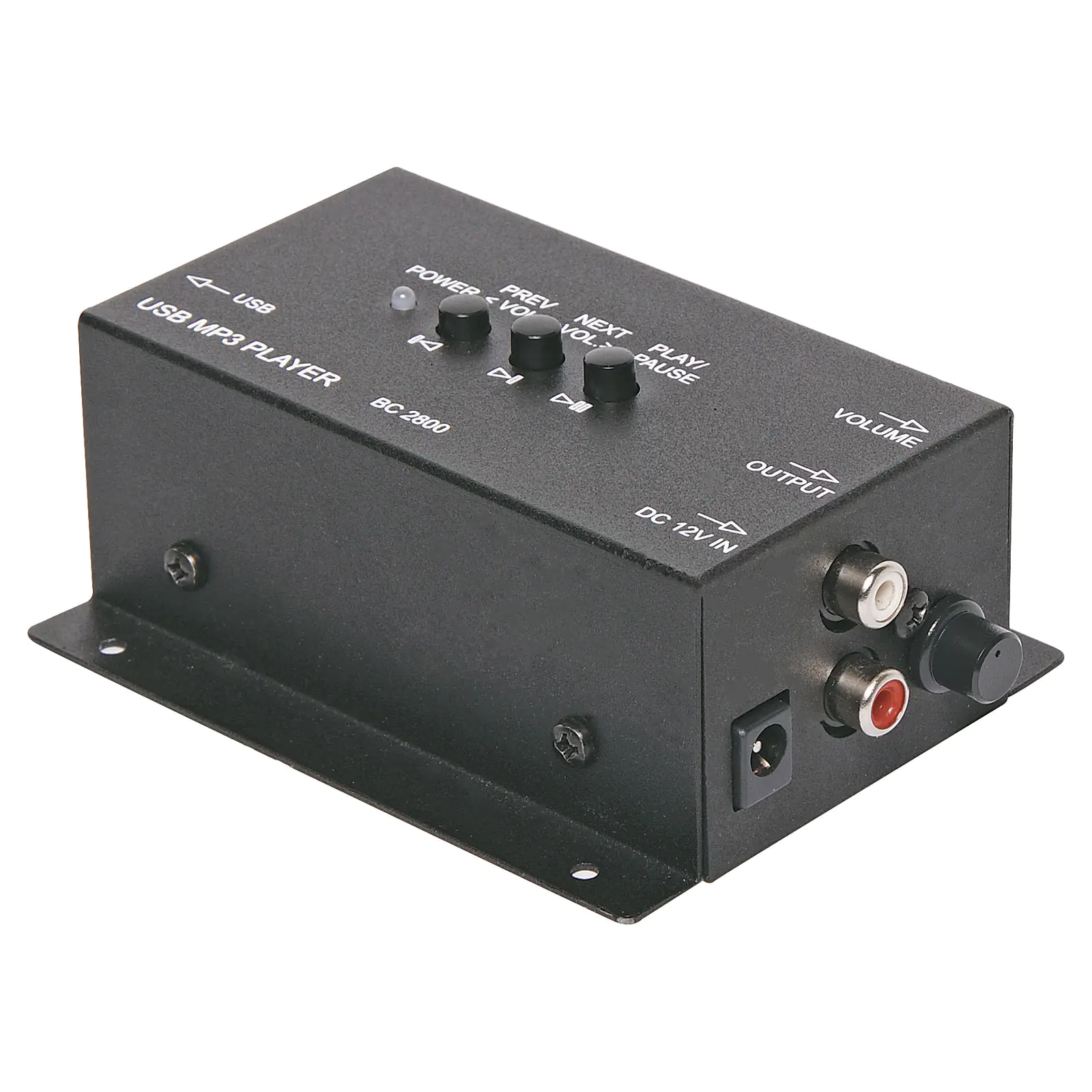

USB MP3 Audio Player For BGM Systems

by: Redback
SKU: A2710
Designed for BGM systems in commercial installations requiring audio playback from a USB memory stick. Alternatively it can be used to add MP3 playback to any domestic audio system. Simply connects to an amplifiers RCA input and provides typical CD player.
$90.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $90.00
2+ $80.91
i h

Overview

Designed for BGM systems in commercial installations requiring audio playback from a USB memory stick. Alternatively it can be used to add MP3 playback to any domestic audio system. Simply connects to an amplifiers RCA input and provides typical CD player style functionality ie: play/pause & track skip. Tracks will automatically loop providing a constant source of background music for PA systems. Line output level volume is adjustable via the side panel. Suitable for use with USB memory sticks or SD/SDHC/CF cards when used in conjunction with a card reader. Requires 12VDC plug pack. Dimensions: 80W x 40H x 54D mm

Requires FAT32 formatted card



Features:

  • Accepts USB stick, SD an CF memory FAT32 format up to 32Gb
  • Supports MP3 folder hierarchy structure ie: will browse music inside folders on stick
  • Compact size
  • Line level volume adjustment
  • Simple plug and play operation
  • Box flange allows mounting to any surface
  • Automatic playback looping
  • Starts playback immediately once USB is plugged in
  • If power is lost, playback will play from the start of the last played track.





Specifications:

Output Impedance: 10K ohms.

Gain: Line: 0 db.

Distortion: < 0.05%

S/N Ratio (IEC-A): >100db .

Frequency Response (+/- 1db) :20Hz-20KHz.

Dimensions: 80W x 40H x 54D mm

Weight: 300g (Net).

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
