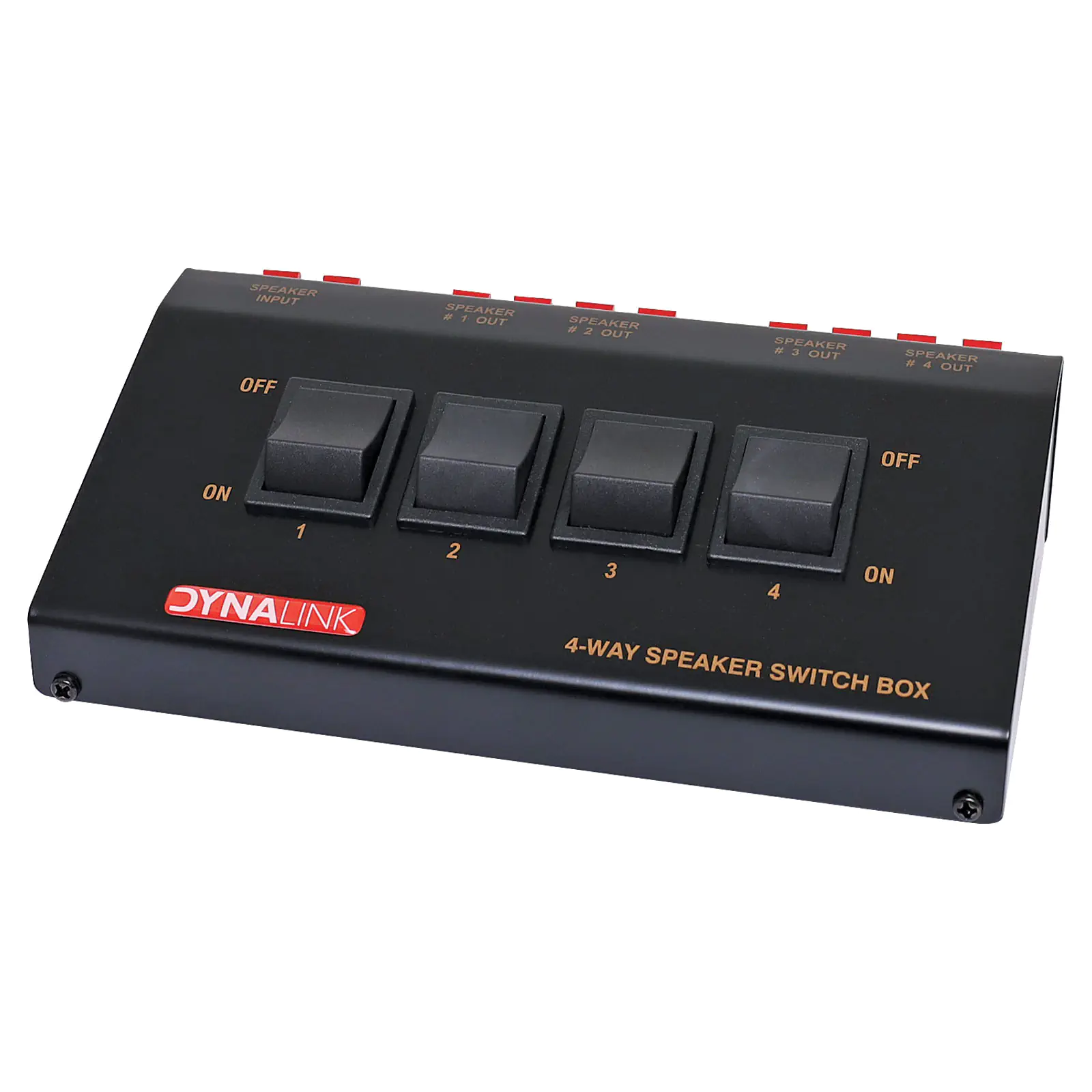

4 Way Switch Box Speaker

by: Dynalink
SKU: A3026A
Suitable for switching multiple sets of speakers on a single amplifier eg: to switch between lounge and patio speakers. Incorporates 4 independent stereo speaker switches acting as a speaker signal splitter. Allows selection of a combination of speakers, or all speakers on at once.
$42.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $42.68
2+ $38.64
4+ $34.50
i h

Overview

4 way audio speaker switch box for switching between four pairs of speakers eg: to switch between lounge and patio speakers. Incorporates 4 independent stereo speaker switches. Allows selection of a combination of speakers, or all speakers on at once. Maintains correct impedance load for the amplifier (4Ω minimum).

Operation Note: If you have only one pair speakers, you have to connect the speakers to the terminals marked SPK #1. If you have two pair speakers, you have to connect the speakers to the terminals marked SPK #1 and SPK #2 or the unit will not operate ie: Terminals 3 and 4 wont function until the preceding terminals are connected.



Features:

  • Sturdy steel case construction
  • Spring loaded speaker wire connection terminals
  • Connection for two pairs of stereo speakers
  • Suits standard low impedance speakers
  • Recommended impedance for speakers: 8 ohms
  • Select any or all zones (see operation note)
  • No power required to operate





Specifications:

Audio power handling: 50 watts rms/per channel.

Frequency response: ±0.1 dB , from 20 Hz to 20K Hz

Power rating (max): 200W

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Datasheet
PDF
