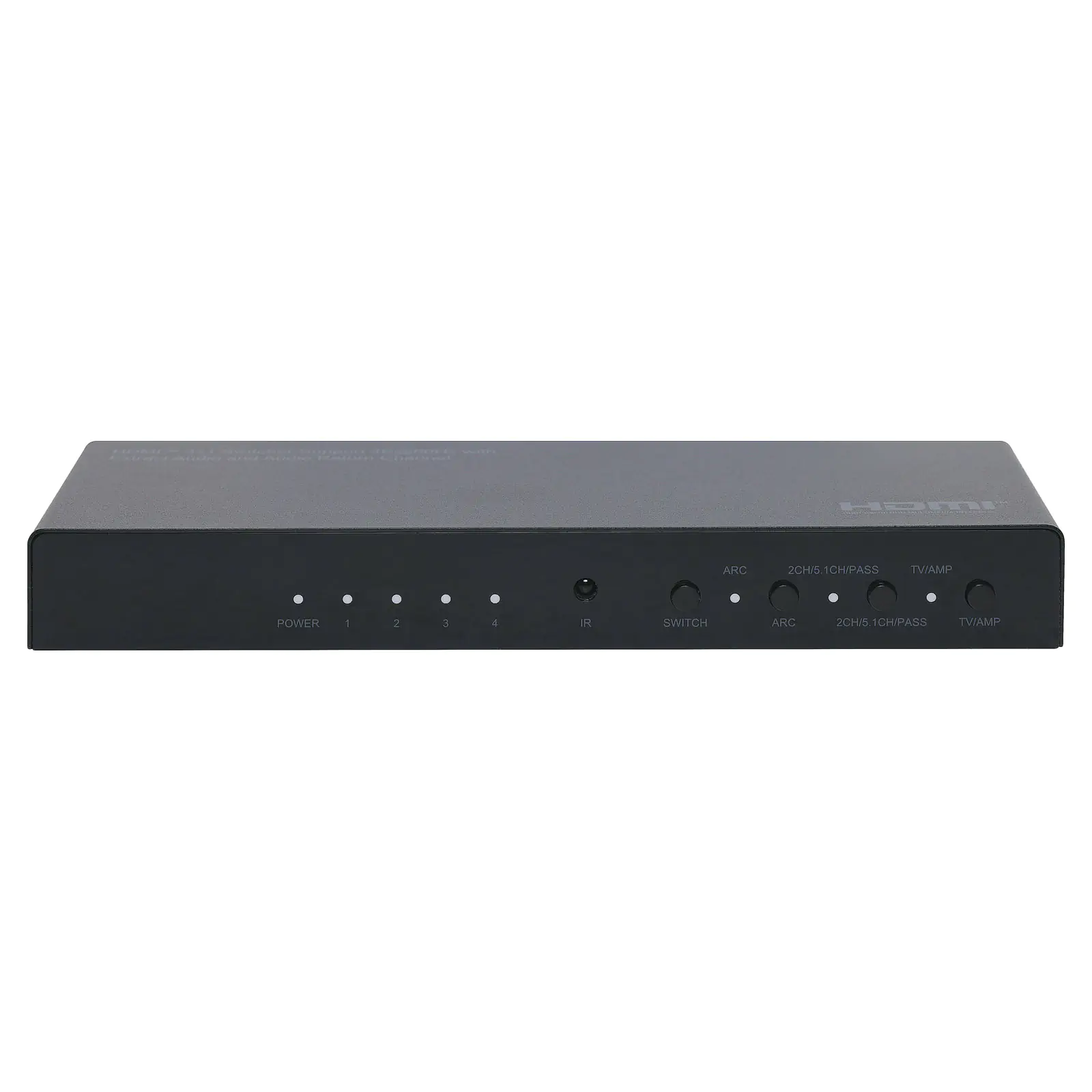

18Gbps 4 Way HDMI Switcher

SKU: A3081F
The 4 port HDMl 4K switch lets you share a display with four HDMl™-enabled A/V devices.
$177.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $177.27
2+ $162.73
4+ $144.55
i h

Overview

The 4 port HDMl 4K switch lets you share a display with four HDMl™-enabled A/V devices. The switch features four independent inputs that each support 4K resolution and 7.1 surround sound audio. You'll be amazed at how this video switch maintains Ultra HD picture quality. 4K is supported by the latest A/V devices imd delivers four times the resolution of 1080p. Plus, because the switch is backward compatible with high-definition 1080p, you can assure any video source will look great in your digital signage application. Also, the audio embedded in HDMI™ can be extracted via HDMI, Toslink or Coaxial and the switch can return the audios to AV receivers with audio return channel (ARC) function.

Package Contents:
1x Main unit
1x Remote control
1x 5V DC power adapter
1x User manual

Note: This product contains a CR2025 button cell battery.







Features

  • Support manual control and remote control
  • Enables the most recently activated video source to be displayed automatically
  • Support digital audio output simultaneously: Audio-H (HDMI only for audio), Stereo, Toslink and Coaxial
  • Support resolution up to 4K@60Hz 4:4:4
  • Support High Dynamic Range (HDR) video
  • Support 600MHz l6Gbps per channel (18Gbps all channels) bandwidth
  • Support 12bit per channel (36bit all channels) deep colour
  • Support HDCP2.2
  • Support uncompressed audio such as LPCM 7.1
  • Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio and Dolby TrueHD)
  • Support Audio Return Channel



Specifications

Input Ports: 4x HDMI

Output Ports: 1x HDMI, 1x Audio-H, 1x Stereo, 1x Coaxial, 1x Toslink

Vertical Frequency Range: 60/60Hz

Video Amplifier Bandwidth: 6.0Gbps/600MHz per channel (18Gbps all channels)

Interlaced (50&60Hz): 480i, 576i, 1080i

Progressive (50&60Hz): 480p, 576p, 720p, 1080p, 4K @ 60Hz

Limited Warranty: 1 year parts and labour

Operating Temperature: 0°C to 70°C

Storage Humidity: 5% to 90% RH non condensation

Power Supply: 5V DC

Power Consumption (Max): 5W

Switcher Unit Cert: CE, FCC, RoHS

Power Supply Cert: CE, FCC, RoHS

Power Adapter Standard: US, EU, UK, AU

Dimensions: 211L x 66W x 26H mm

Net Weight: 356g

Material: Metal

IR Remote Control: CR2025 3V Lithium coin cell battery





THIS PRODUCT CONTAINS A BUTTON BATTERY.

  • If swallowed, a lithium button battery can cause severe or fatal injuries within two hours.
  • Keep batteries out of reach of children.
  • If you suspect your child has swallowed or inserted a button battery, immediately call the 24-hour poisons information centre on 13 11 26 (within Australia) and seek medical attention.
button battery inside warning



Details

Products specifications

Warranty 12 Months
Audio Visual
Type HDMI Switchers

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
