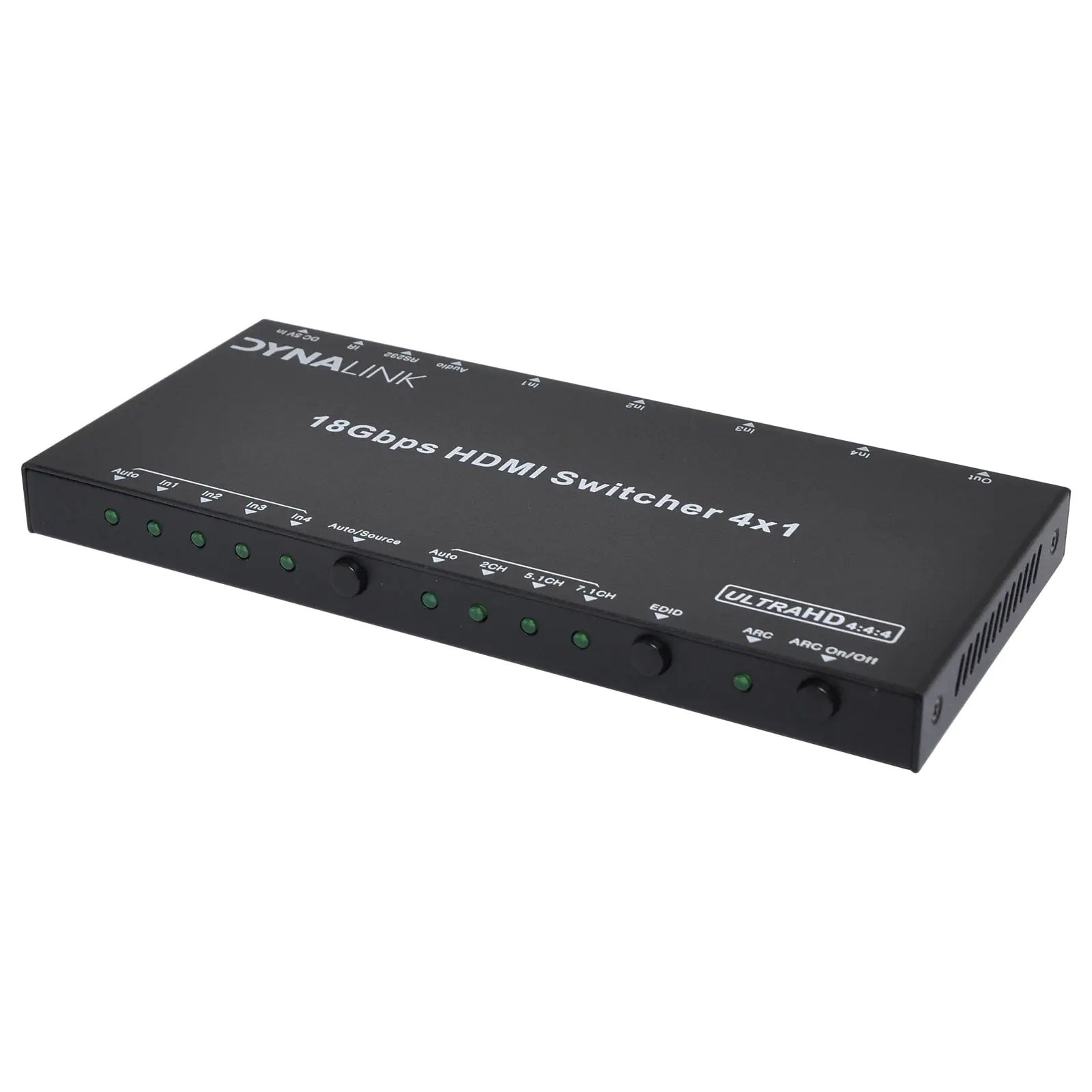

4 Way 4K HDMI Switcher With Audio Extractor & RS232

by: Dynalink
SKU: A3082
This compact 4-way HDMI switcher features manual & infra-red remote control for switching up to 4 sources to a single display supporting resolutions up to 4k 60Hz.
Save $72.73 $95.45 $168.18

All Prices Shown are (ex GST)
Bulk Pricing
ea
$95.45 $168.18
2+
$95.45 $153.64
4+
$95.45 $135.45
i h

Overview

This compact 4-way HDMI switcher features manual & infra-red remote control for switching up to 4 sources to a single display supporting resolutions up to 4k 60Hz. Ideal for home theatres, showrooms, boardrooms & lecture theatres. Includes power supply & remote control. Analog and digital audio signals can be split from the HDMI signal. Audio EDID is selectable to 2.0, 5.1 and 7.1 modes. ARC function allows the audio from the selected display to be sent to the outputs provided. Automatically switches to last used input on power up.


Features

  • RS-232 port for remote control.
  • Video formats up to 4Kx2K@60Hz.
  • Compliant with HDMI 2.0a, DVI 1.0.
  • Digital and analog extracted audio output.
  • HDCP 2.2 and HDCP 1.4 compliant.
  • Support PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH.
  • Switches 4 HDMI sources to a single HDMI output.



Specifications

HDMI Compliance: 2.0a

HDCP Compliance: 2.2 / 1.4

Video Bandwidth: 18Gbps

Video Resolution: Up to 4K 60Hz 4:4:4

Audio Output: PCM 2.1, 5.1, 7.1, Dolby 5.1, DTS 5.1,

Dolby True HD, DTS, HD

Audio Return Channel (ARC) support: Yes

Inputs: HDMI x 4

Outputs: HDMI x 1, 3.5mm jack (analog & digital optical - adaptor included)

Case Dimensions: 180W x 85D x 12H

Power Supply: 5V DC 1A (included)





THIS PRODUCT CONTAINS A BUTTON BATTERY.

  • If swallowed, a lithium button battery can cause severe or fatal injuries within two hours.
  • Keep batteries out of reach of children.
  • If you suspect your child has swallowed or inserted a button battery, immediately call the 24-hour poisons information centre on 13 11 26 (within Australia) and seek medical attention.
button battery inside warning



Details

Products specifications

Warranty 12 Months
Audio Visual
Type HDMI Switchers

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Rs232 Code List
PDF
.pdf
Instructions
PDF
