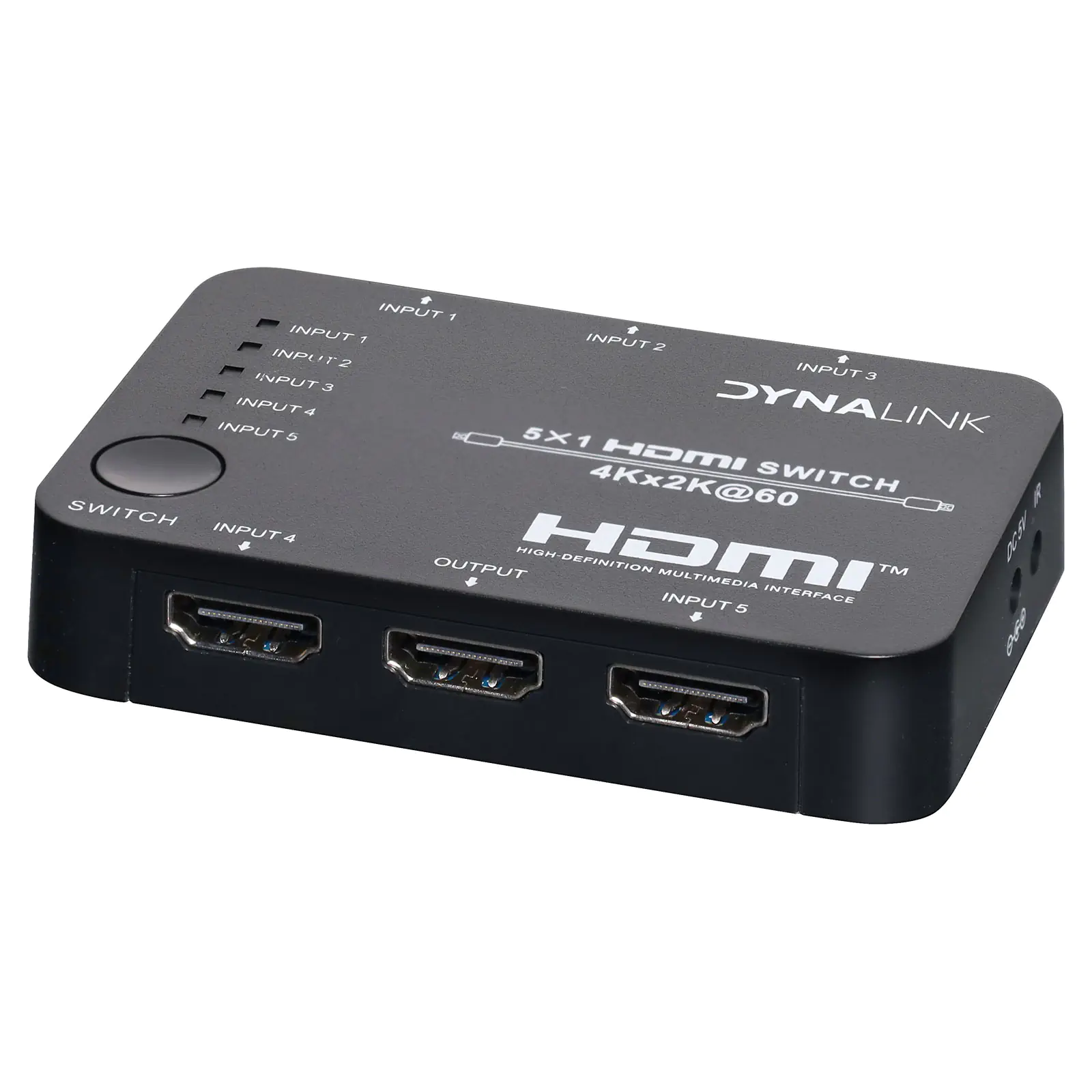

18Gbps 5 Way HDMI Switcher

by: Dynalink
SKU: A3089A
Switch between 5 HDMI AV sources with this professional 4K ready HDMI switcher.
$69.05

All Prices Shown are (ex GST)
Bulk Pricing
ea $69.05
2+ $61.82
4+ $54.55
i h

Overview

Switch between 5 HDMI AV sources with this professional 4K ready HDMI switcher. Includes an IR remote control and receiver unit, which allows the switcher to be mounted behind the TV or inside a cabinet. Supports 12-bit deep colour, 6.0Gbps high speed, full UltraHD 4K. Maximum distance between TV and HDMI source ˜25m. Supports HDR, HDR10, Dolby Vision and HLG. Dimensions: 87W × 59.5D × 19H mm. Remote requires 2 x AAA batteries (included).

Please Note: Requires USB power supply either from a peripheral equipment source (TV/Amp) or an M 8861A

Package Contents
1 x HDMI 5×1 Switcher
1 x IR Receiver Cable
1 x 5V USB Power Cable
1 x Remote Control
1 x User Manual
2 x AAA Batteries



Features

  • Supports 18Gbps video bandwidth
  • HDR, HDR10, Dolby Vision and HLG are supported
  • Supports video resolution up to 4K2K@50/60Hz YCbCr 4:4:4
  • Supports 3D video format
  • Low power consumption
  • IR remote control and panel button control
  • Compact design for easy and flexible installation





Specifications

Technical

HDCP Compliance: HDCP 2.2/1.x

Video Bandwidth: 18Gbps

Video Resolution: Up to 4k2k@60Hz

Colour Depth: 8-bit (4K60Hz)

Colour Space: RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4

HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio

Connection

Input Ports: 5×HDMI Type A (19-pin female), 1×IR IN [3.5mm Stereo Mini-jack]

Output Ports: 1×HDMI Type A (19-pin female)

Mechanical

Housing: Plastic Enclosure

Silkscreen Colour: Black

Weight: 60g

Power Supply Input: 5V/1A

Power Consumption: 1.5W

Operation Temperature: 0°C ~ 40°C

Storage Temperature: -20°C ~ 60°C

Relative Humidity: 20~90% RH (non-condensing)





THIS PRODUCT CONTAINS A BUTTON BATTERY.

  • If swallowed, a lithium button battery can cause severe or fatal injuries within two hours.
  • Keep batteries out of reach of children.
  • If you suspect your child has swallowed or inserted a button battery, immediately call the 24-hour poisons information centre on 13 11 26 (within Australia) and seek medical attention.
button battery inside warning



Details

Products specifications

Warranty 12 Months
