8K 48Gbps 2 Way HDMI Switcher

by: Dynalink
SKU: A3104
Offering 8K @ 60Hz resolution switching, this 2 way HDMI source selector is ready for the latest high resolution AV sources.
$72.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $72.68
2+ $65.41
4+ $58.14
i h

Overview

Offering 8K @ 60Hz resolution switching, this 2 way HDMI source selector is ready for the latest high resolution AV sources. It supports video resolutions up to 8K @ 60Hz 4:4:4 and is ideal for display signage, video conference, security monitoring, home theatre and domestic or commercial AV systems.  It's also well suited to modern gaming consoles achieving 4K @ 120Hz on TVs or HDMI enabled monitors.

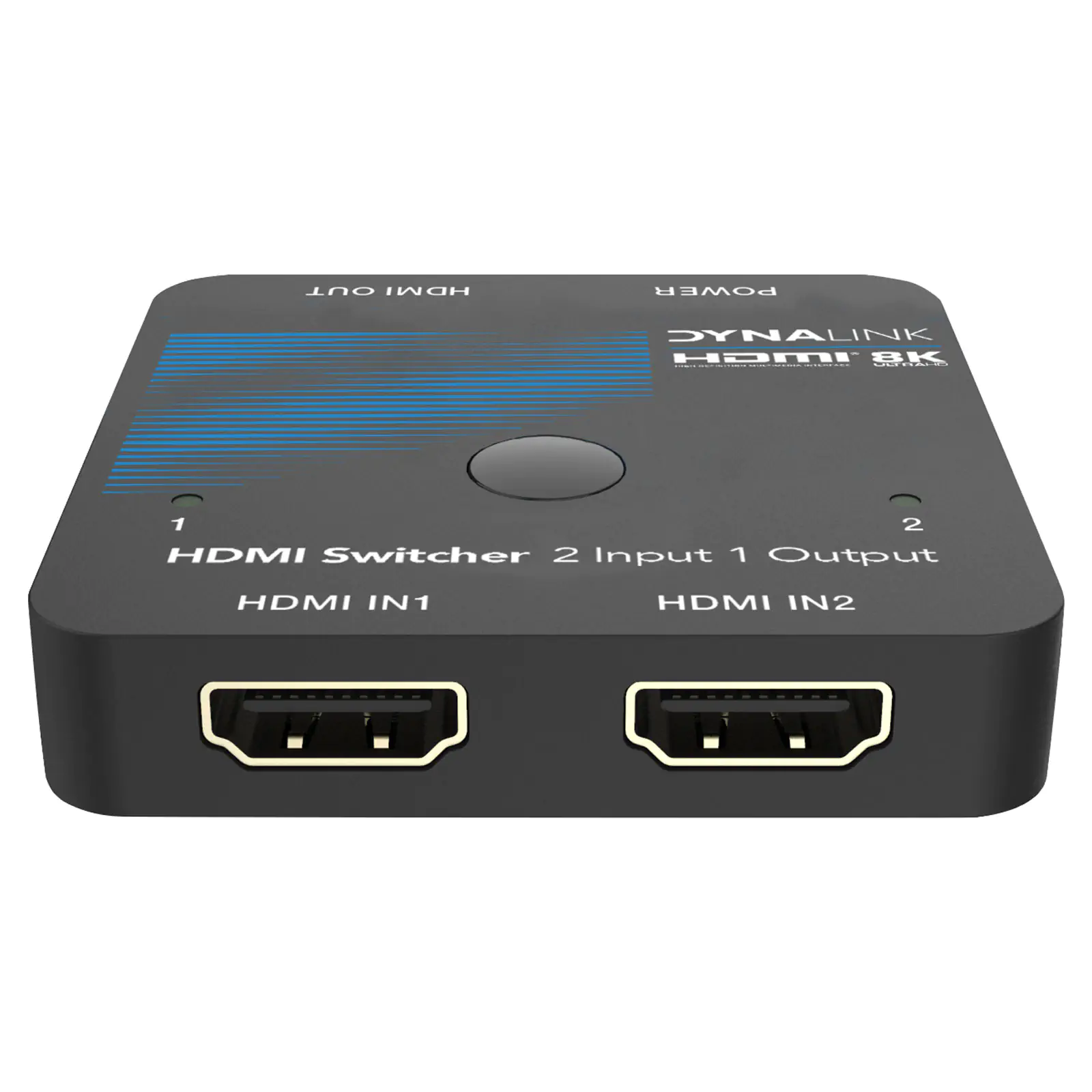

By using this HDMI 8K switcher, you can connect from HDMI IN1 and HDMI IN2 ports to two HDMI source devices via an individual HDMI cable, then connect from HDMI OUT port to your external monitor (such as HDMI projector, HDMI TV or HDMI ordinary display). You can switch between two sources by pressing the switch button on the top panel of the switcher.  Note that this switcher is not bi-directional, it is designed for two sources and a single display (2 in to 1 out). Requires USB power (USB cable included).

Box contents
1 × 8K Two-Input HDMI Switcher
1 × Micro USB Power Cable
1 × User Manual



Features

  • HDMI 2.1 and HDCP 2.3 compliant
  • 48Gbps video bandwidth
  • Supports resolutions up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
  • Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
  • VRR, FVA, ALLM supported
  • Supports HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio.
  • 2x1 switch output, auto switch supported
  • Built-in Equalizer and Driver
  • Auto EDID management
  • Compact design for easy and flexible installation





Specifications



Technical

HDMI Compliance: HDMI 2.1

HDCP Compliance: HDCP 2.3

Video Bandwidth: 48Gbps

Video Resolution: Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz  4:4:4 10-bit

Colour Depth: 8-bit,10-bit,12-bit

Colour Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0



Connection

Input Ports: 2×HDMI IN Type A (19-pin female)

Output Ports: 1×HDMI OUT Type A (19-pin female)



Mechnical

Housing: Plastic Enclosure

Silkscreen Colour: Black

Dimensions (mm): 60W × 60D × 12H

Weight: 31g

Power Supply: 5V USB

Power Consumption: 1.25W (Max)

Operation Temperature: -0°C to 40°C

Storage Temperature: -20°C ~ 60°C

Relative Humidity: 20~90% RH (non-condensing)

Details

Products specifications

Warranty 12 Months
Audio Visual
Type HDMI Switchers

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
