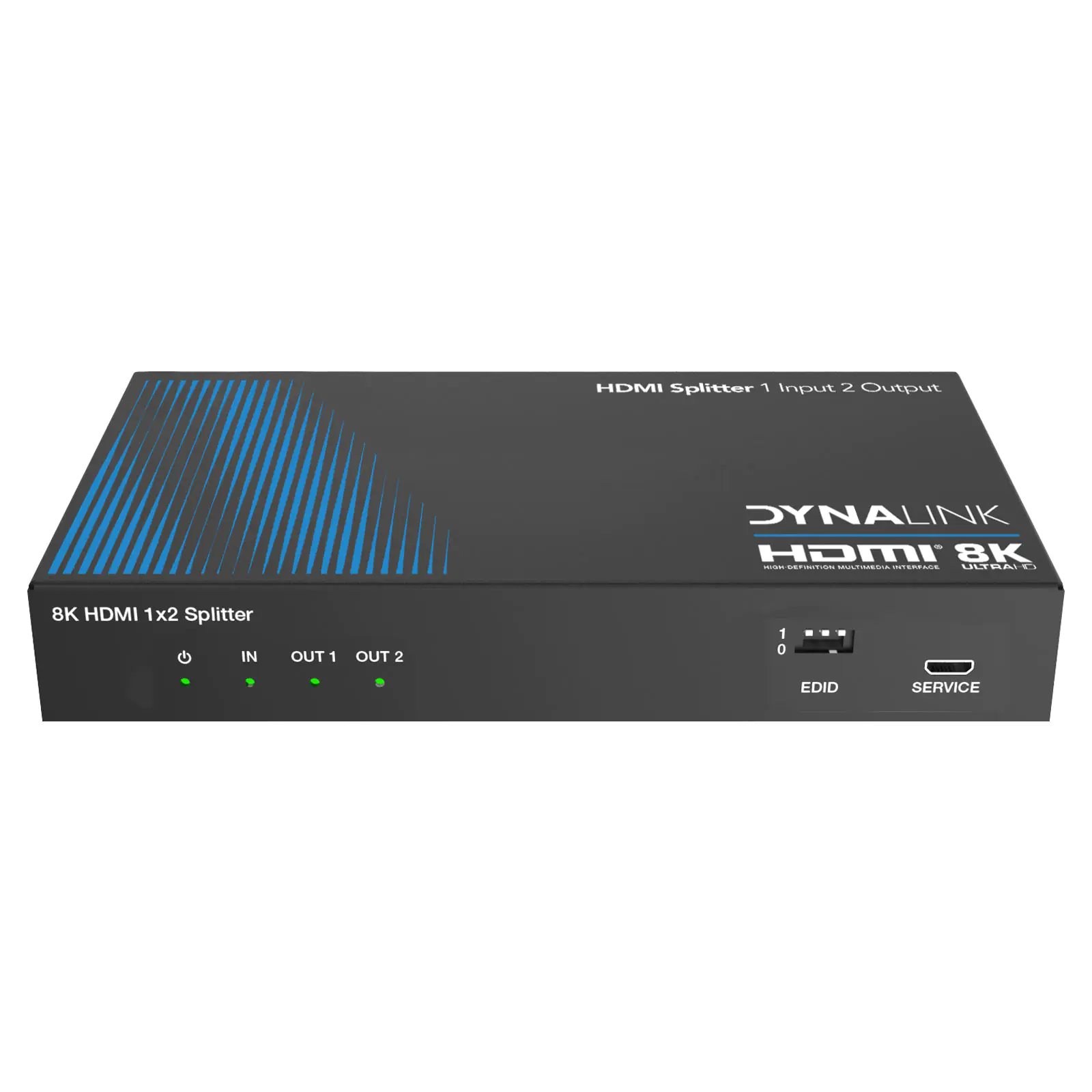

8K HDMI 2 Way Splitter

by: Dynalink
SKU: A3106
This splitter can distribute one HDMI source signal to any two display devices. It supports video resolution up to 8K@60Hz 4:2:0.
$253.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $253.64
2+ $231.82
4+ $204.55
i h

Overview

This splitter can distribute one HDMI source signal to any two display devices. It supports video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID management and audio de-embedding function (output through the optical and analog port). This multi-functional product can be widely applied in scenarios of demonstration, video conferencing, multi-media teaching and other occassions requiring for multi screen display.

Box Contents
1 x 8K HDMI 1x2 Splitter
1 x 5V/2A Power Supply
1 x User Manual



Features

  • HDMI 2.1 and HDCP 2.3 compliant
  • 40Gbps video bandwidth
  • Supports video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4
  • 10bit, 4K@120Hz 4:4:4 10bit
  • VRR, FVA, ALLM supported
  • Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
  • Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • Built-in Equalizer, Retiming and Driver
  • Advanced EDID management
  • Support audio de-embedding function (output through the optical and analog port)
  • Compact design for easy and flexible installation for two HDMI outputs
  • HDMI daisy chain several splitters - up to 4 levels.





Specifications



Technical

HDMI Compliance: HDMI 2.1

HDCP Compliance: HDCP 2.3

Video Bandwidth: 40Gbps

Video Resolution: Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz  4:4:4 10-bit

Audio Formats: HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH, Analog: PCM 2.0

Colour Depth: 8-bit,10-bit,12-bit

Colour Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0

ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)



Input Ports

1 x HDMI IN Type A (19-pin female)



Output Ports

2 x HDMI OUT (Type A, 19-pin female)

1 x OPTICAL (S/PDIF)

1 x L/R (3.5mm Stereo Mini-jack)

Control: 1 x SERVICE (Micro USB, Update port)



Mechanical

Housing: Metal Enclosure

Silkscreen Colour: Black

Dimensions (mm): 145W × 68D × 17H

Weight: 258g

Power Supply: 5V 2A DC

Power Consumption: 4.15W (Max)

Operation Temperature: -0°C to 40°C

Storage Temperature: -20°C ~ 60°C

Relative Humidity: 20~90% RH (non-condensing)
