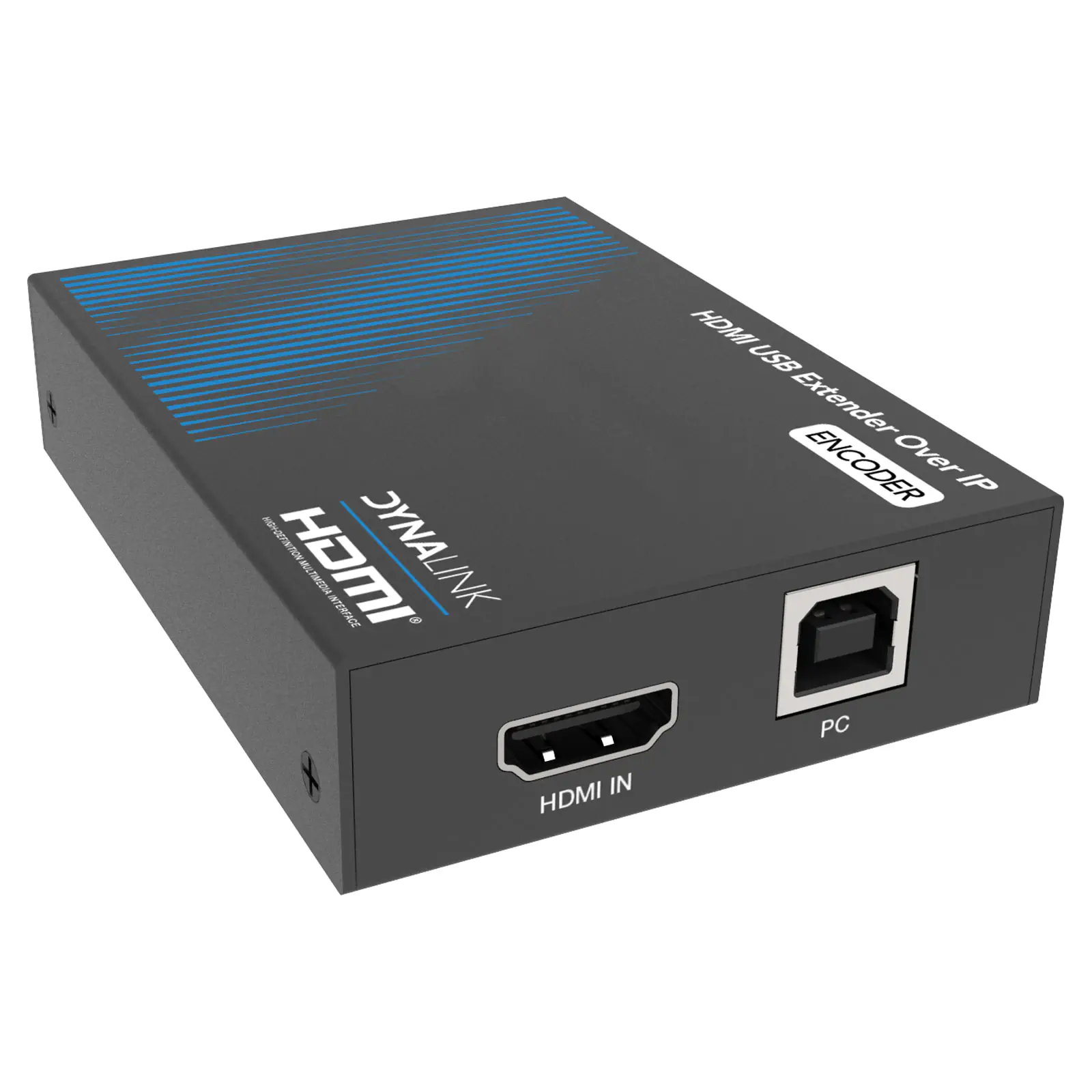

HDMI USB KVM Over IP Extender  - Encoder

by: Dynalink
SKU: A3110
Designed to extend HDMI and USB peripherals' signals over distances up to 150m using Cat6/6a cabling.
$168.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $168.18
2+ $150.91
4+ $134.55
i h

Overview

Designed to extend HDMI signals over distances up to 150m using Cat6/6a cabling. In addition, it also allows USB peripherals to control a connected computer from the receiver end. Infra-red control is relayed via the included IR emitter and target. The cable bandwidth allows for zero-delay operation with HDMI resolutions up to 1080p @ 60Hz. Power is via the included power supply.

Designed to be used with single or multiple A3111 HDMI Over IP Decoders - see accessories listed below. Only a single encoder can be used on a network.

Box Contents:
1× HDMI over IP Extender (Encoder)
1× IR Blaster cable (1.5ms)
1× 20-60KHz IR Receiver cable (1.5m)
1× 5V/1A Power Supply
1× User Manual



Features:

  • Extend both HDMI signal plus IR control & USB peripherals
  • Transmission up to 150m over Cat6/6a UTP cabling
  • Ideal for remote operation of PC equipment
  • HDCP 1.4 compliant
  • 6.75Gbps video bandwidth
  • H.265 encoding/decoding
  • Supports USB 1.1 KVM pass-through
  • Supports standard 1000MBps network switch/router

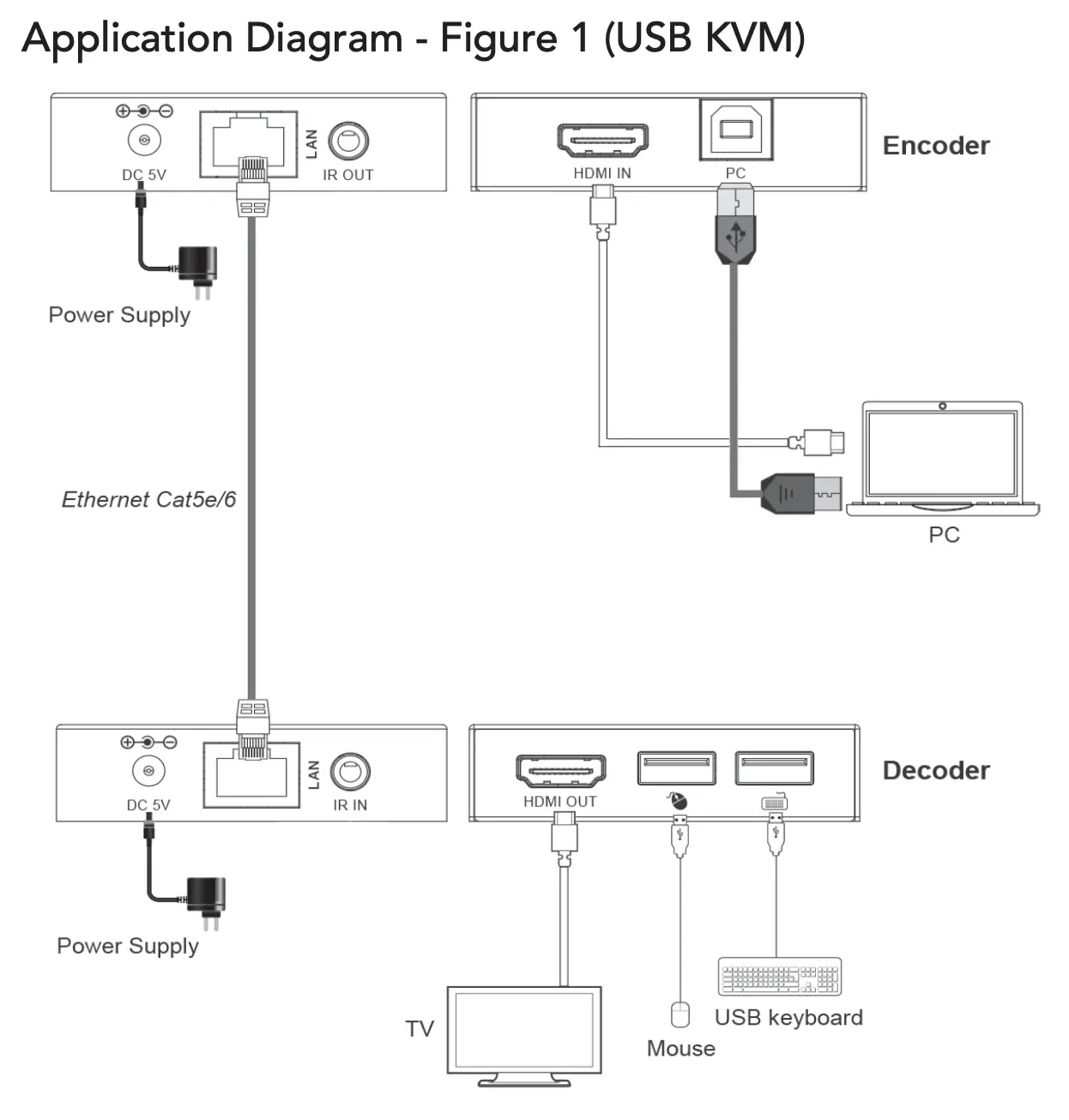

A3110 Application

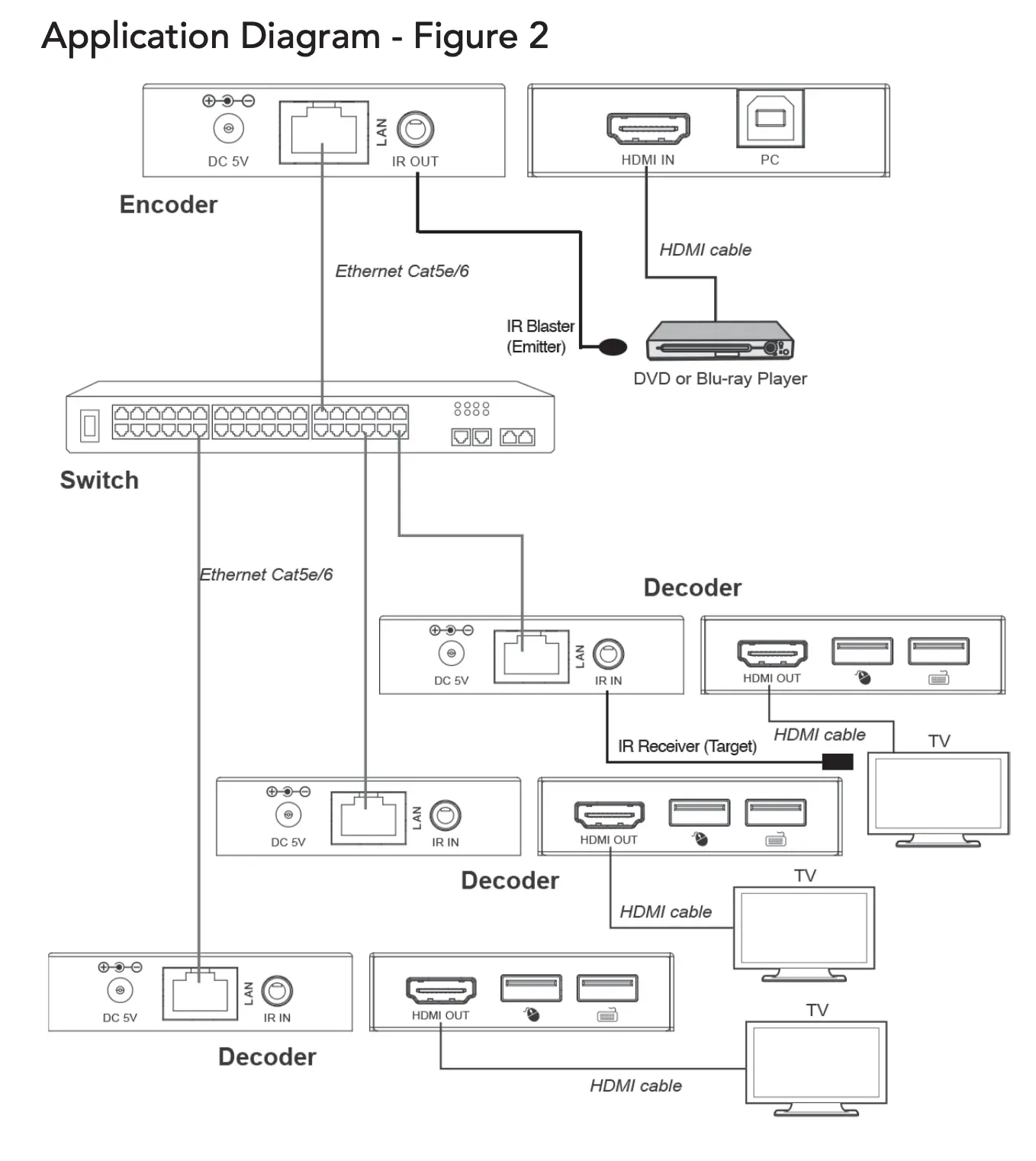

A3110 USB KVM diagram



Specifications:



Technical:

HDCP Compliance: HDCP 1.4

USB Version: USB 1.1

Video Bandwidth: 6.75Gbps

Resolution/Distance: 1920x1200 @60Hz  CAT 5e/6 cable 150 meters

Resolution/Cable Length :  1920x1200 @60Hz HDMI IN / OUT 15 meters



Video Resolution:

Input: Up to 1920×1200@60Hz

Output: Up to 1080P@60Hz



Audio Formats:

Input: LPCM 2.0CH 32KHz/44.1KHz/48KHz

Output: LPCM 2.0CH 48KHz

IR Frequency:  20Hz ~ 60KHz

Compression Technology: H.265

Request for Switcher/Router: Support 1Gbps, Support DHCP

Colour Depth: 8-bit,10-bit,12-bit

Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2

ESD Protection:  Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)



Connection:

Inputs: 1×HDMI IN (Type A, 19-pin female)

Outputs: 1×LAN (RJ45 connector)

Control: 1×IR OUT (3.5mm Stereo Mini-jack), 1×USB (USB-B, female)



Mechanical:

Housing:  Metal Enclosure

Dimensions: 67W × 91.5D × 17.5Hmm

Weight: 150g

Power Supply Input: AC100 - 240V 50/60Hz Output: DC 5V/1A

Power Consumption: 2.9W

Operation Temperature: -10°C to 50°C

Storage Temperature: -20°C to 60°C

Relative Humidity : 20 to 90% RH (non-condensing)

Details

Products specifications

Warranty 12 Months
Audio Visual
Type HDMI Extenders

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
