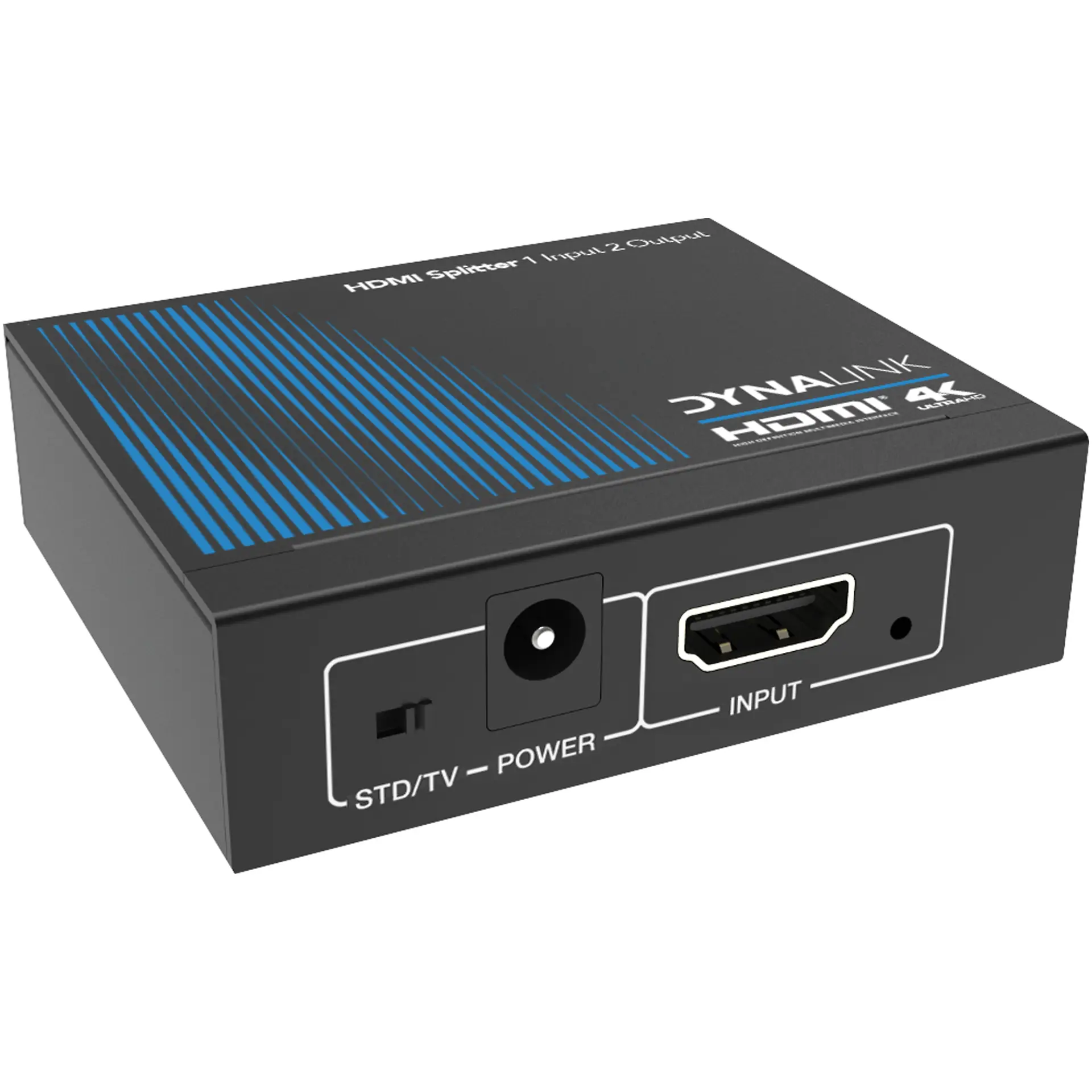

4K 1x2 HDMI Splitter 18GBps Bandwidth

by: Dynalink
SKU: A3134H

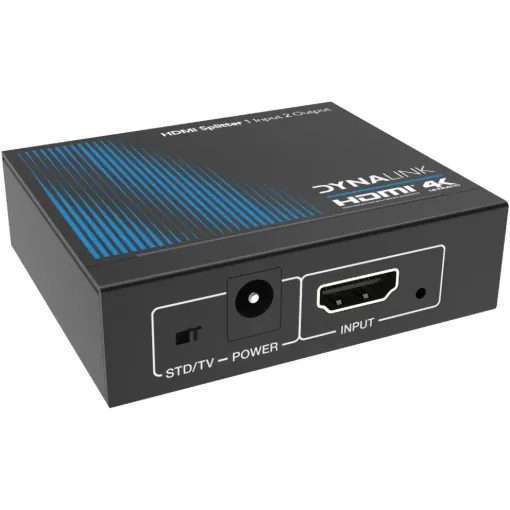

This HDMI 1x2 Splitter designed with 1x HDMI input and 2x HDMI output, can distribute 1x HD source signal to 2x display devices simultaneously and quickly.
$63.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $63.59
3+ $57.23
6+ $50.86
i h

Overview

This HDMI 1x2 Splitter designed with 1x HDMI input and 2x HDMI output, can distribute 1x HD source signal to 2x display devices simultaneously and quickly. Video resolution is up to 4K2K@60Hz YCbCr 4:4:4, and digital audio format is up to LPCM 7.1CH. It supports advanced EDID management.

Each signal is designed in strict accordance with industry standards to prevent cross-talk between signals and minimize signal attenuation. This ensures the high-quality output of every HD signal after distribution, achieving perfect transmission.

The device is widely used in multimedia conference halls, television teaching, large-screen display and other applications.

Box Contents

1× 4K60 1x2HDMI Splitter

1× 5V/1A Power Supply

1× User Manual



Features

  • HDCP 2.3/2.2/1.4 and DVI 1.0 compliant
  • Video resolution is up to 4K2K@60Hz YCbCr 4:4:4
  • Audio format up to 7.1CH: LPCM, Dolby TrueHD, DTS-HD Master Audio
  • Support HDR and 3D audio format
  • Advanced EDID management
  • Compact design for easy and flexible installation





Specifications

Technical

HDMI Compliance: HDMI 2.0b

HDCP Compliance: HDCP 2.3/1.4

DVI Compliance: DVI 1.0

Video Bandwidth: 18Gbps

Video Resolution: Up to 4K2K@60Hz 4:4:4

Colour Depth: 8-bit, 10-bit, 12-bit

Colour Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0

HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG

Audio Formats: LPCM 2.0/5.1/7.1CH, DD, DD+, DTS, Dolby True HD, and DTS-HD Master

Sample Rate: 44.1KHz/48KHz/88.2KHz/96KHz/176.4KHz/192KHz

ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) &±4kV (Contact discharge)


Connection

Input: 1× HDMI IN [Type A, 19-pin female]

Output: 2× HDMI OUT [Type A, 19-pin female]


Mechanical

Housing: Metal Enclosure

Colour: Black

Dimensions: 70W × 60D × 20.5Hmm

Weight: 118g

Power Supply: DC 5V/1A

Power Consumption: 1.41W (Max)

Operating Temperature: 0°C ~ 40°C

Storage Temperature: -20°C ~ 60°C

Operating Humidity 20%~80% relative humidity, non-condensing

Storage Humidity: 10%~90% relative humidity, non-condensing


Recommended HDMI Cable

Resolution: 4K60 = 5m Length

Resolution: 4K30 = 10m Length

Resolution: 1080p = 15m Length

The use of “Premium High Speed HDMI” cable is highly recommended.
