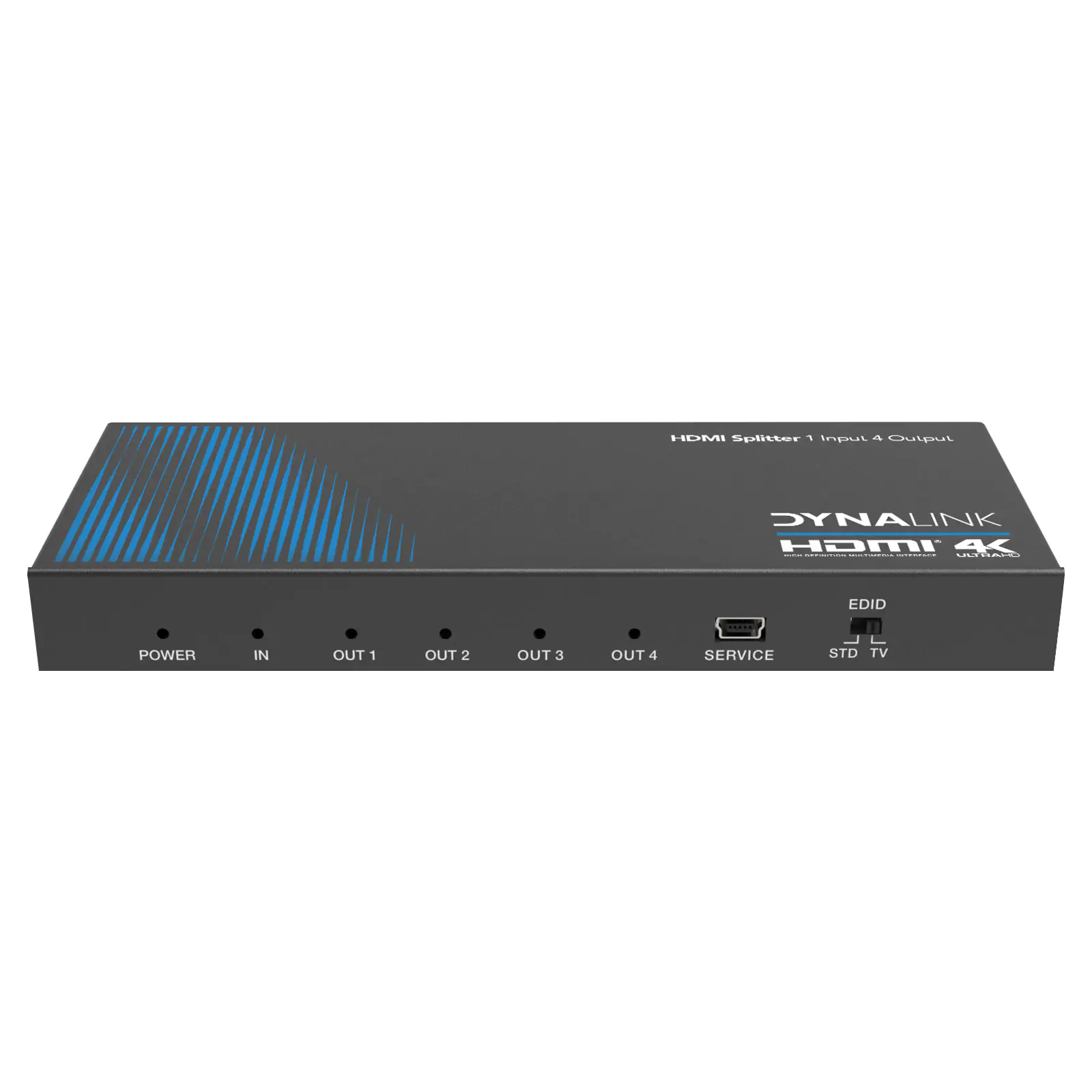

4K 1x4 HDMI Splitter 18GBps Bandwidth

by: Dynalink
SKU: A3135G
This is a high performance 1x HDMI input to 4x HDMI output switcher which is powered via a USB port.
$58.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $58.14
i h

Overview

This is a high performance 1x HDMI input to 4x HDMI output switcher which is powered via a USB port. The system supports all 3D TV formats in addition to all HDTV formats up to 4K Ultra HD (3840 x 2160p) @60Hz video. It also supports HDCP 2.2 compatibility.



Features

  • Simultaneously displays an UItra Hi-Def source on up to four UItra HD displays
  • Video Resolutions up to UItra HD 4Kx2K (3840x2160p)@60Hz YUV 4:4:4.
  • Three kinds of EDID handling abilities
  • HDCP2.2/1.4 Compliant
  • 36 bit Deep Color
  • LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio
  • Bandwidth 18Gbps
  • Supports HDR





Specifications

Video Bandwidth: 600MHz/18Gbps

Output Resolution: 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz

ESD Protection: Human Body model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Input Ports: 1 x HDMI Type A [19-pin female]

Output Ports: 4 x HDMI Type A [19-pin female]

Chassis Material: Metal

Colour: Black

Dimensions: 63mm (W) × 163mm (D) × 16mm (H)

Weight: 260g

Power Supply: 5V/1A DC (US/EU standards,CE/FCC/UL certified)

Power Consumption: 2W

Operating Temperature: 0°C ~ 40°C

Storage Temperature: -20°C ~ 60°C

Relative Humidity: 20~90% RH (non-condensing)

Details

Products specifications

Warranty 12 Months
