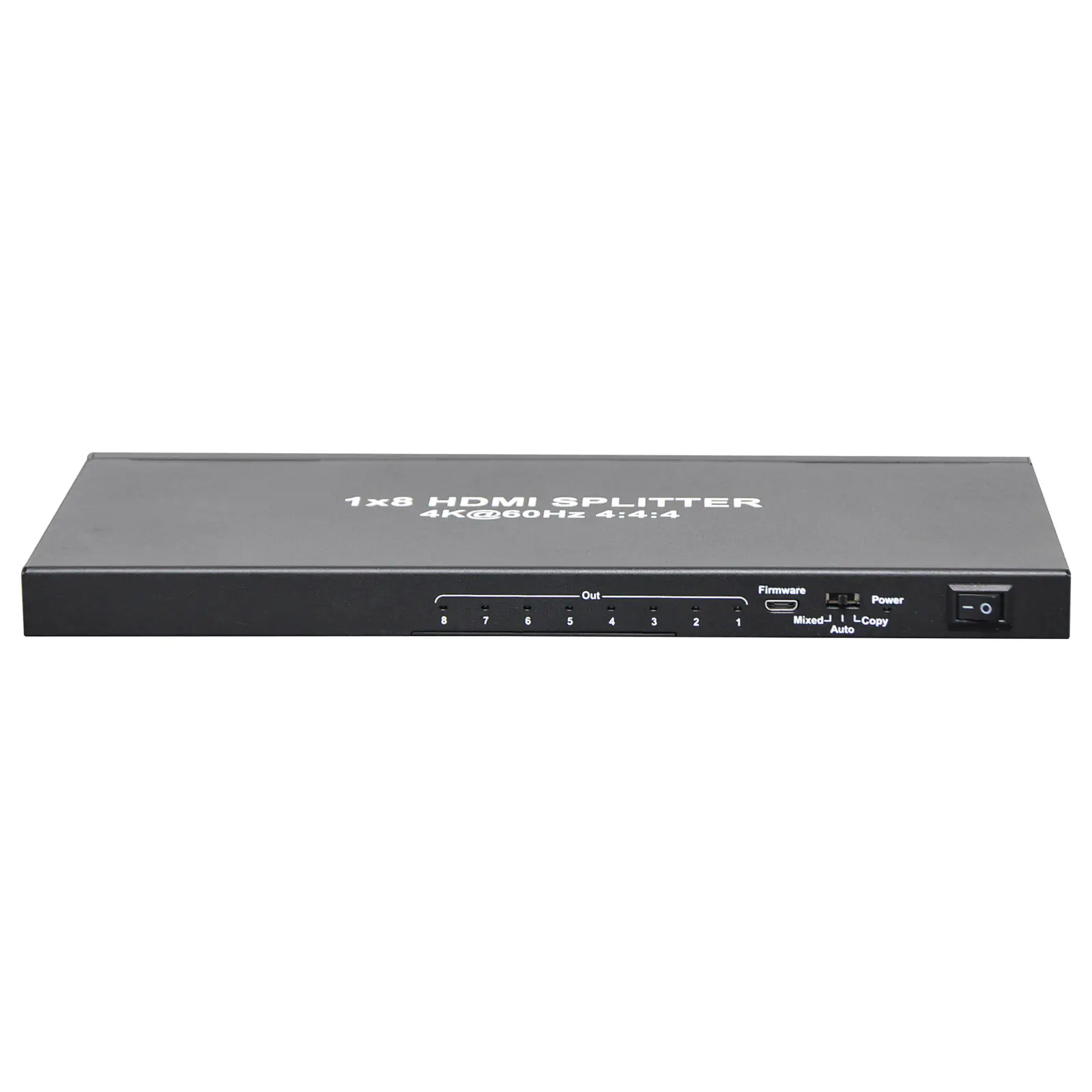

8 Way HDMI Splitter 18GBps Bandwidth

SKU: A3136C
Allows the connection of multiple HDMI displays to a single HDMI source with no loss of signal quality. This splitter is ideally used for conference centres, sports bars, concerts, board rooms and other distributed AV applications where multiple displays are required.
$271.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $271.82
2+ $244.55
4+ $217.27
i h

Overview

Allows the connection of multiple HDMI displays to a single HDMI source with no loss of signal quality. This splitter is ideally used for conference centres, sports bars, concerts, board rooms and other distributed AV applications where multiple displays are required. Three units may be daisy chained together for connection to 22 displays.

Package Contents
1 x HDMI Splitter
1 x 5V/1A DC Adapter
1 x User Manual

Note: In mixed EDID mode, this splitter allows for mixed resolution displays. For instance, a 4K input source is connected to the splitter, two outputs are connected to a 4K television and a 1080p television. The 4K television will display 4K and the 1080p television will display 1080p.



Features

  • Simultaneously displays an UItra Hi-Def source on up to eight UItra HD displays
  • Supports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:4:4)
  • Supports three kinds of EDID handling abilities.
  • Supports HDCP2.2/1.4 Compliant
  • Supports 36 bit Deep Color
  • Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio.
  • Supports 3D
  • Bandwidth 18G
  • Supports HDR
  • Supports online firmware upgrade via Micro USB Port





Specifications

Operating Temperature Range: -5 to +40°C(+23 to +104°F)

Operating Humidity Range: 5 to 90%RH (No Condensation)

Bandwidth frequency: 18Gbps

HDCP: HDCP2.2

Input ports: 1xHDMI(female)

Output ports: 8xHDMI outputs(female)

Resolution outputs: up to 4Kx2K(3840x2160@60Hz YUV 4:4:4)

Dimensions(LxWxH): 247.2x110x17mm

Power consumption: 5W(MAX)

Transmission Distance: 15m(Maximum)over standard HDMI cable/26AWG

Net Weight: 610g

Details

Products specifications

Warranty 12 Months
Audio Visual
Type HDMI Splitters

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
