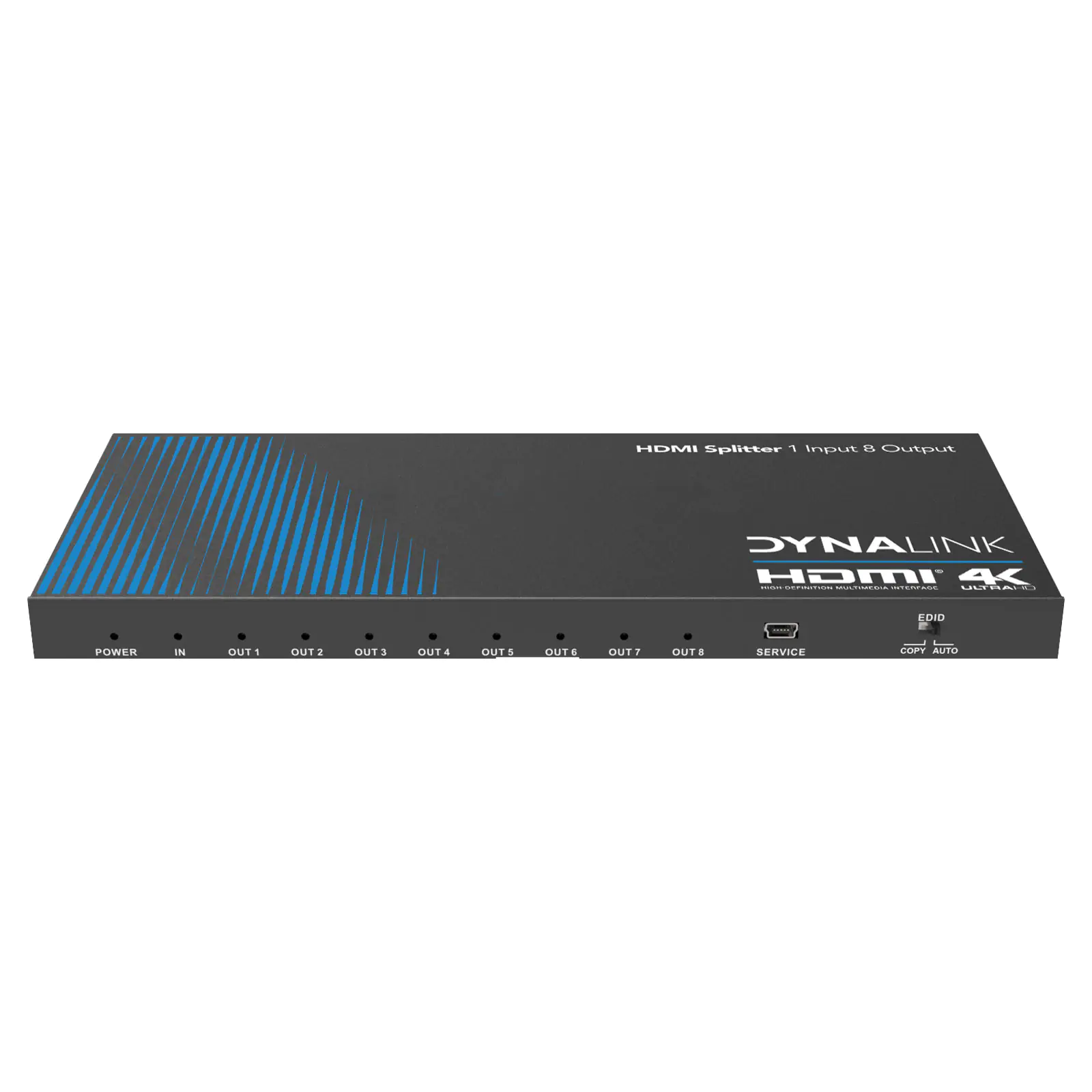

8 Way HDMI Splitter 18GBps Bandwidth

by: Dynalink
SKU: A3136D
Allows the connection of multiple HDMI displays to a single HDMI source with no loss of signal quality.
$226.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $226.36
2+ $203.64
4+ $180.91
i h

Overview

Allows the connection of multiple HDMI displays to a single HDMI source with no loss of signal quality. This splitter is ideally used for conference centres, sports bars, concerts, board rooms and other distributed AV applications where multiple displays are required.

Package Contents
1× 8 Way HDMI Splitter
1× 5V/1A Power Supply
1× User Manual



Features

  • HDCP 2.2 compliant
  • Supports 18Gbps bandwidth
  • Supports resolution up to 4K@60Hz 4:4:4
  • Supports HDR function
  • Supports COPY/AUTO EDID control via dialling the DIP switch
  • Compact design for easy and flexible installation





Specifications



Technical

HDMI Compliance: HDMI 2.0b

HDCP Compliance: HDCP 2.2

Video Bandwidth: 594MHz/18Gbps

Video Resolution: 480i ~1080p50/60Hz, 4K2K@30Hz, 4K2K@60Hz

HDMI Audio Formats: PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X

ESD Protection: Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)



Connection

Input Ports: 1×HDMI Type A (19-pin female),  1×SERVICE (Micro USB, Update port)

Output Ports: 8×HDMI Type A (19-pin female)



Mechanical

Housing: Metal Enclosure

Dimensions: 243W × 102D × 16Hmm

Weight: 572g

Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A

Power Consumption: 6.15W

Operation Temperature: -10°C to 50°C

Storage Temperature: -20°C to 60°C

Relative Humidity: 20 to 90% RH (non-condensing)

Details

Products specifications

Warranty 12 Months
Audio Visual
Type HDMI Splitters
