This HDMI transmitter and receiver system can be used as a simple point to point extender or integrated into an existing home or business ethernet system enabling several receivers to be connected to one transmitter.

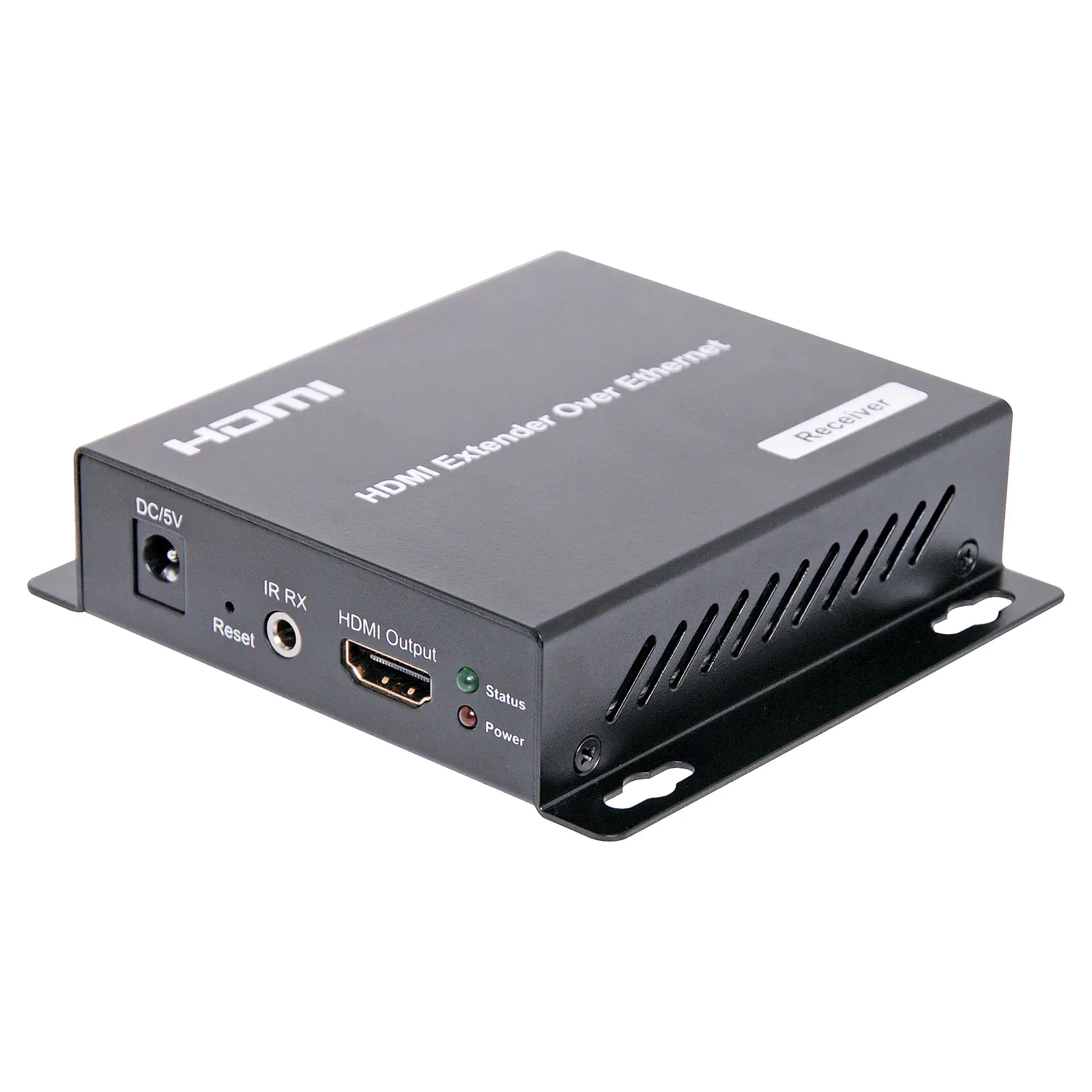

HDMI Over Ethernet UTP Balun Receiver

Name: HDMI Over Ethernet UTP Balun Receiver
SKU: A3141
Price: 117.27 AUD
Availability: InStock

by: Dynalink

SKU: A3141

This HDMI transmitter and receiver system can be used as a simple point to point extender or integrated into an existing home or business ethernet system enabling several receivers to be connected to one transmitter.

Save $32.73 $117.27 ~~$150.00~~

All Prices Shown are (ex GST)

Bulk Pricing

ea	$117.27 $150.00
2+	$117.27 $135.45
4+	$117.27 $126.36

i h

Overview
Details
Warranty
Downloads

Overview

This series of balun components has an important difference to most HDMI balun products on the market in that it can send HDMI signals over ethernet switches, allowing HDMI sources and displays to be connected in an expandable network. It can also be used as a simple point to point extender. Simply connect via Cat5e/6 UTP cable to your switch, router or patch panel and enable the transmission of a single HDMI AV source to multiple receivers up to 120m away. The system offers full HD 1080p transmission without loss of signal quality. It also allows an infra-red signal path back to the source equipment for remote control at the receiver location. Ideal for use in distributed AV systems, shopping & convention centre video signage and other multi-screen environments. HDCP compliant. Power supply included with each unit. Transmitter includes IR emitter. Receiver includes IR target.

It is recommended that systems utilise a dedicated switch for HDMI transmission rather than connecting to a network already being utilised for data. Whilst the system will operate this way, data network performance will be significantly effected.

Dimensions: 103 x 93 x 24mm.

Transmitters sold separately

Features:

Compliant HDCP 1.2
Uses off-the-shelf gigabit IP switches for extension and distribution
Extends 1080p HDMI signals up to 120m over a single UTP Cat5e/6 cable
Flexible and scalable HDMI 1080p Video Wall Broadcasting with Gigabit Ethernet LAN
Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth loading
Support Point-to-Point, Point-to-Many and Many-to-Many network configuration
With IR Control function ,it allows you control back the source at the end of destination
Maximum 3 layers of ethernet switches could be passed through
Foxtel/IQ compatible

Specifications:

Input video signal: 0.5-1.0 Volts P-P

Input DDC signal: 5 volts p-p(TTL)

Supported video formats: DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P

Video output: HDMI

Transmission distance: 1080P 8-bit 120m(Maximum) over single CAT5E/6 /24AWG/Solid

Power consumption: TX:3watts;RX:3watts((Maximum)

IR wave length & frequency: Wave length: 940nm, frequency 38kHz

Dimensions: 103.5L x 93.5W x 24.6H mm

Net Weight: 220g

Operating Temperature Range: -5 to +35℃(+23 to +95℉)

Operating Humidity Range: 5 to 90%RH (No Condensation)

TX:

Default IP address:192.168.168.55

MAC address:00:0b:78:00:60:01

RX:

Default IP address:192.168.168.56

MAC address:00:0b:78:00:60:02

Details

Products specifications

Warranty	12 Months
Audio Visual
Type	HDMI Extenders

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Instructions

PDF

Connection Diagram

PDF
