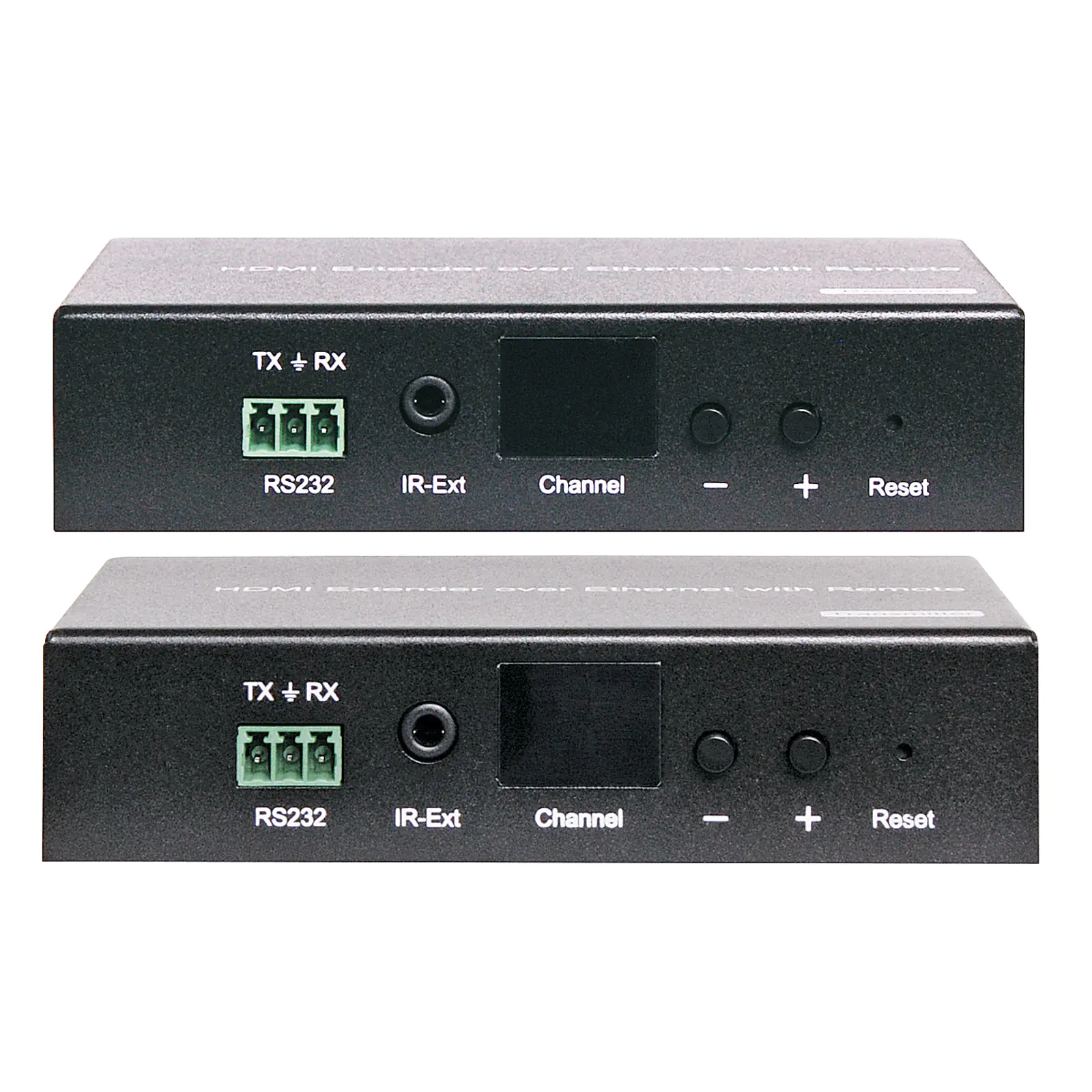

HDMI Over IP UTP Balun System With POE IR And RS232

SKU: A31489
This HDMI over IP Extender uses advanced H.264 compression type which transfers signal using lower bandwidth thus transmit more smoothly. It supports 120m over single Cat5E/6 cable at point to point. Includes transmitter and receiver.
Save $181.82 $362.73 $544.55

All Prices Shown are (ex GST)
Bulk Pricing
ea
$362.73 $544.55
2+
$362.73 $490.00
4+
$362.73 $435.45
i h

Overview

Converts a HDMI signal into a H.264 encoded stream (maximum 1080p @ 60Hz) and sends it over Cat5e/6 cable using internet protocol (IP) over a distance of 120 metres. The advantage of this method is a reduced network load without sacrificing signal quality. It also allows for data to be streamed over Wi-Fi. Each device in the system can be individually addressed with support for IGMP and DHCP automatic addressing.

Importantly, PoE (802.3af) has also been included, allowing for the transmitter and receiver to be powered directly from a PoE equipped switch, eliminating the need for individual plug packs. It also allows an infra-red signal path back to the source equipment for remote control at the receiver location. These units are ideally suited for multi source, multi screen environments such as clubs, pubs, convention centres, venues etc. Requires CR2025 battery.

SOLD AS A MATCHING PAIR FOR POINT TO POINT SYSTEMS - LIMITED STOCKS AVAILABLE.



Features:

  • 1080p @ 60Hz over 120m Cat5e/6
  • H.264 compression for reduced network load
  • Wi-Fi streaming compatible
  • Individually addressable RX & TX
  • Powered by PoE 802.3af
  • Wide-band IR pass 38KHz - 56KHz
  • RS-232 pass through
  • HDMI loop output
  • HDCP compliant.
  • LPCM audio support
  • Up to 256 RX/TX units per system
  • Addressable groups (up to 64)
  • Supports DHCP
  • Works with standard ethernet an PoE switches
  • Access network streams via VLC on PC/tablet etc.
  • Includes power supply
  • 15Mbps streaming





Specifications:



Performance:

Protocol: H.264 encoder over TCP/IP

Video Format: 480i/480p/576i/576p/720o/1080p@60Hz

Audio Format: LPCM, Audio sampling rate 48kHz

Bit Rate: 15Mbps

HDCP: Yes

IR Frequency: 38-56 kHz

RS232 Baud Rate: Default 2400bps-8 options

IR: supports 38kHz



IP Setting & Group ID Setting:

Default IP: TX: 192.168.1.11; RX: 192.168.1.12

Group ID: Group 00-Group 63



Receiver Connections:

Input: 1x RJ45 input

Output: 1x HDMI socket

RS232: Phoenix RS232 port



Transmitter Connections:

Input: 1x HDMI socket

Output: 1x RJ45 output, 1x HDMI looping output

RS232: Phoenix RS232 port



General:

Power Supply: DC 5V 1A

Power Consumption: Max 3 watt

Dimensions: 119 x 79.5 x 28mm





THIS PRODUCT CONTAINS A BUTTON BATTERY.

  • If swallowed, a lithium button battery can cause severe or fatal injuries within two hours.
  • Keep batteries out of reach of children.
  • If you suspect your child has swallowed or inserted a button battery, immediately call the 24-hour poisons information centre on 13 11 26 (within Australia) and seek medical attention.
