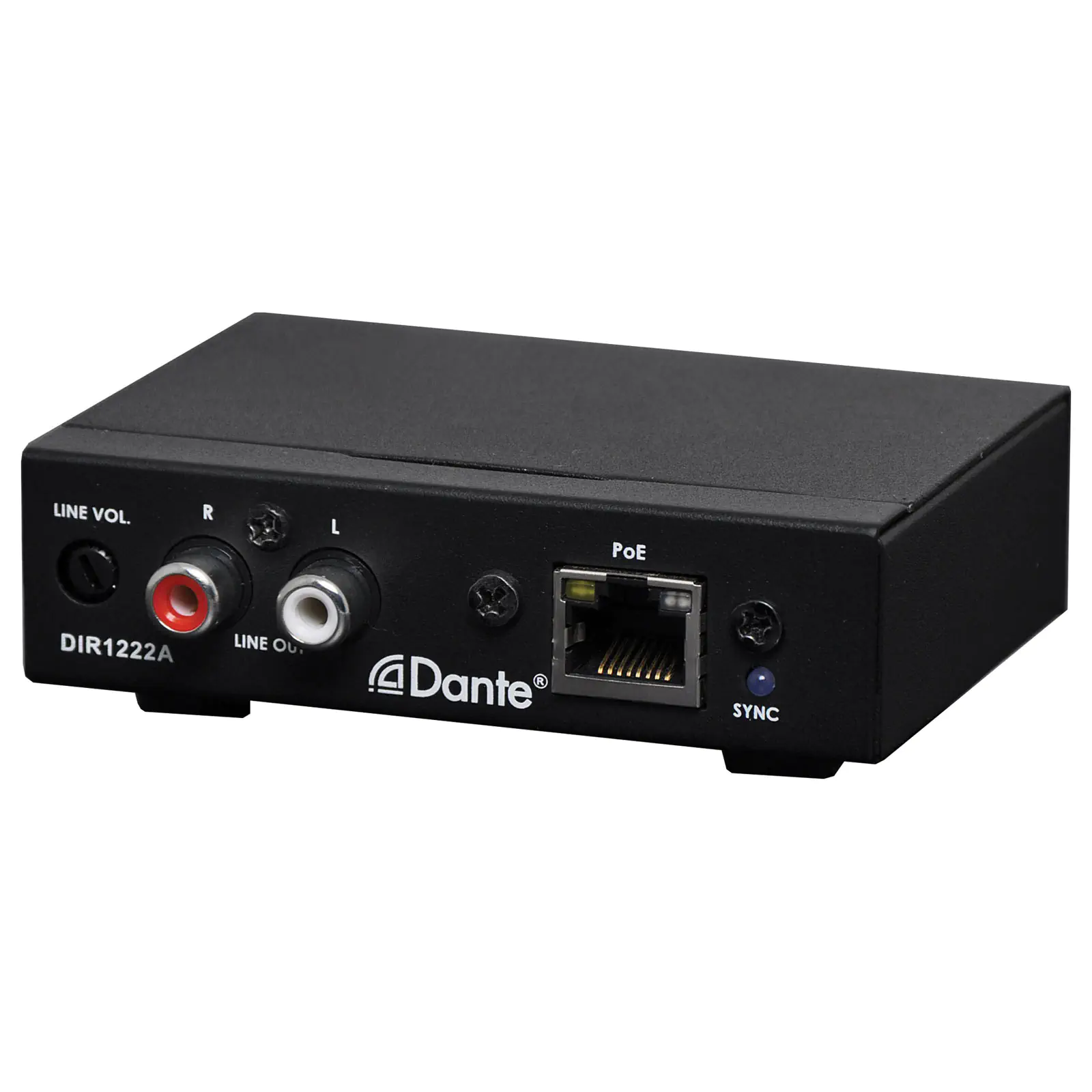

Audio Over IP Dante POE Receiver

SKU: A3164
This device is designed to receive two channels audio signal from the Dante network, and converts to analogue RCA outputs. Simply use Cat5 UTP cable to connect the RJ45 port to an Ethernet switch, and using "Dante controller" to receive the low latency of signal from other devices which already connected on the same Dante network.
$453.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $453.64
2+ $409.09
i h

Overview

These quality Dante interface boxes allow for conversion of analog audio signals into Dante channels for sending audio over IP. These allow for high quality audio signals to be transferred over very long distances without signal loss using economical UTP cabling. Each device is PoE enabled allowing easy powering from a standard 802.3af compliant PoE switch. Balanced input is provided via euro block connection on the receiver (A 3165), whilst RCA stereo line output is provided on the transmitter (A 3164).



Features:

  • Dante Interface for Audio Input.
  • RCA output Jacks on front panel.
  • Converts Dante Audio Signal to Unbalanced Line Level.
  • Selectable Dante Sample Rates: 44.1 kHz ~ 96 kHz.
  • High Resolution Digital to Analog Conversion
  • Power over Ethernet (PoE).
  • Excellent Audio quality





Specifications:

Line Out: RCA, Unbalanced

Output Impedance: 40 Ω

Output Level: -10 dBu nominal

Output Level: +10 dBu Maximum

Output Voltage: +20dBu (@ 0dB output gain)

Frequency Response: 20Hz to 20KHz (+/- 0.5 dB)

THD+N: <0.1 %

Noise: <-75dB

Crosstalk: <-70dB



Dante channel:

Transmitters/Receivers: 2/2

Transmission rate: 100 Mbps

Resolution: 16/24/32 Bit

Sampling rate: 44.1 KHz, 48 KHz, 88.2 KHz, 96KHz.

Dante interface: RJ45 jack

Power supply: PoE IEEE 802.3af



General:

Dimensions: 92.5mm(W) × 25.2mm(H) × 68.2mm(D)

Weight: 190 g

Details

Products specifications

Warranty 12 Months
Professional Audio
Type Dante Products

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
