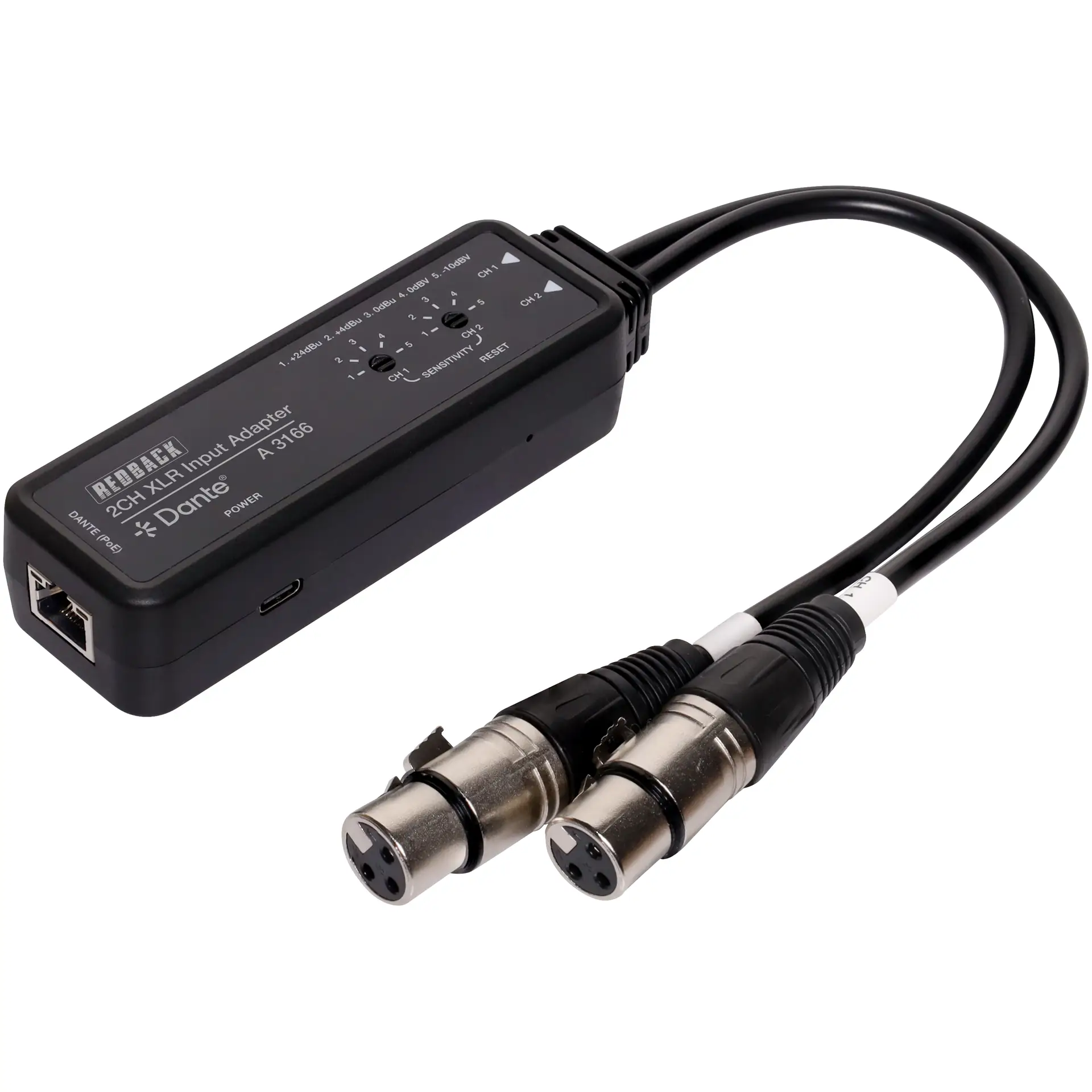

2Ch XLR Input to Dante Output Adapter

SKU: A3166
This adapter converts two-channel balanced/unbalanced XLR analog audio into Dante 2CH digital audio, then transmits the audio to the receiving end through network (Dante).
$259.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $259.09
2+ $245.45
i h

Overview

This Dante 2CH XLR Input Adapter is an audio transmitter based on the Dante Ultimo 2x2 solution. It converts two-channel balanced/unbalanced XLR analog audio into Dante 2CH digital audio, then transmits the audio to the receiving end through network (Dante). Analog audio input supports 5-level sensitivity adjustment. The adapter supports local USB-C port power supply and PoE function.



Features:

  • Two-channel XLR analog audio to Dante 2CH digital audio
  • Balanced/unbalanced XLR analog audio input
  • Dante audio sampling rate supports 44.1/48/88.2/96KHz@24bit
  • Dante audio delay supports 1/2/5ms (configurable)
  • Analog audio input supports 5-level sensitivity adjustment (+24dBu, +4dBu, 0dBu, 0dBv, -10dBv)
  • Compatible with AES67 input and output.
  • Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
  • Compact design for easy and flexible installation





Specifications:

Technical:

Input: Two-channel balanced/unbalanced XLR analog audio

Output: Dante 2CH digital audio

Control Method: Dante Controller

Video Network Bandwidth: 100M

Audio Latency: Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller)

Audio Formats: XLR IN [Analog audio input, Balanced/unbalanced 2CH, Max input level +24dBu] DANTE OUT [Digital audio output, PCM 2CH 44.1K-96KHz 16/24bit]

Transmission Distance: 100m (CAT6/6A/7)

ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)



Audio Parameters:

XLR Analog Audio In

Input Impedance: 20k Ohm balanced, 10k Ohm unbalanced

Line Input Level (Maximum): +24dBu (12.28Vrms) @balanced audio, +18dBu (6.15Vrms) @unbalanced audio

Frequency Response: 20Hz to 20kHz (-/+0.5dB)

Dynamic Range: >100dB@0dBu, 1kHzA-weighted

Audio S/N Ratio: >100dB@0dBu, 1kHzA-weighted

Audio THD+N: < 0.01% at +4dBu, 1KHz

Audio Output Sync Delay: <10ms



Connection:

Input port: 2x CH1/CH2 XLR IN [XLR female plug, with 30cm cable], 1x POWER [USB-C power and firmware update port, 12-pin female]

Output port: 1x DANTE [RJ45 connector, PoE]

Others: 1x RESET button [System reboot button], 2x SENSITIVITY knob [5-level dip switch]



Mechanical:

Housing: Plastic Enclosure

Colour: Black

Dimensions: 115mm [W] x 40mm [D] x 28 mm [H]

Weight: 173g

Power Supply: USB input: 5V/500mA, PoE input: PoE IEEE802.3af Class 0

Power Consumption: 2W (Max)

Operating Temperature: 0°C ~ 40°C

Storage temperature: -20°C ~ 60°C

Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)

Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing)
