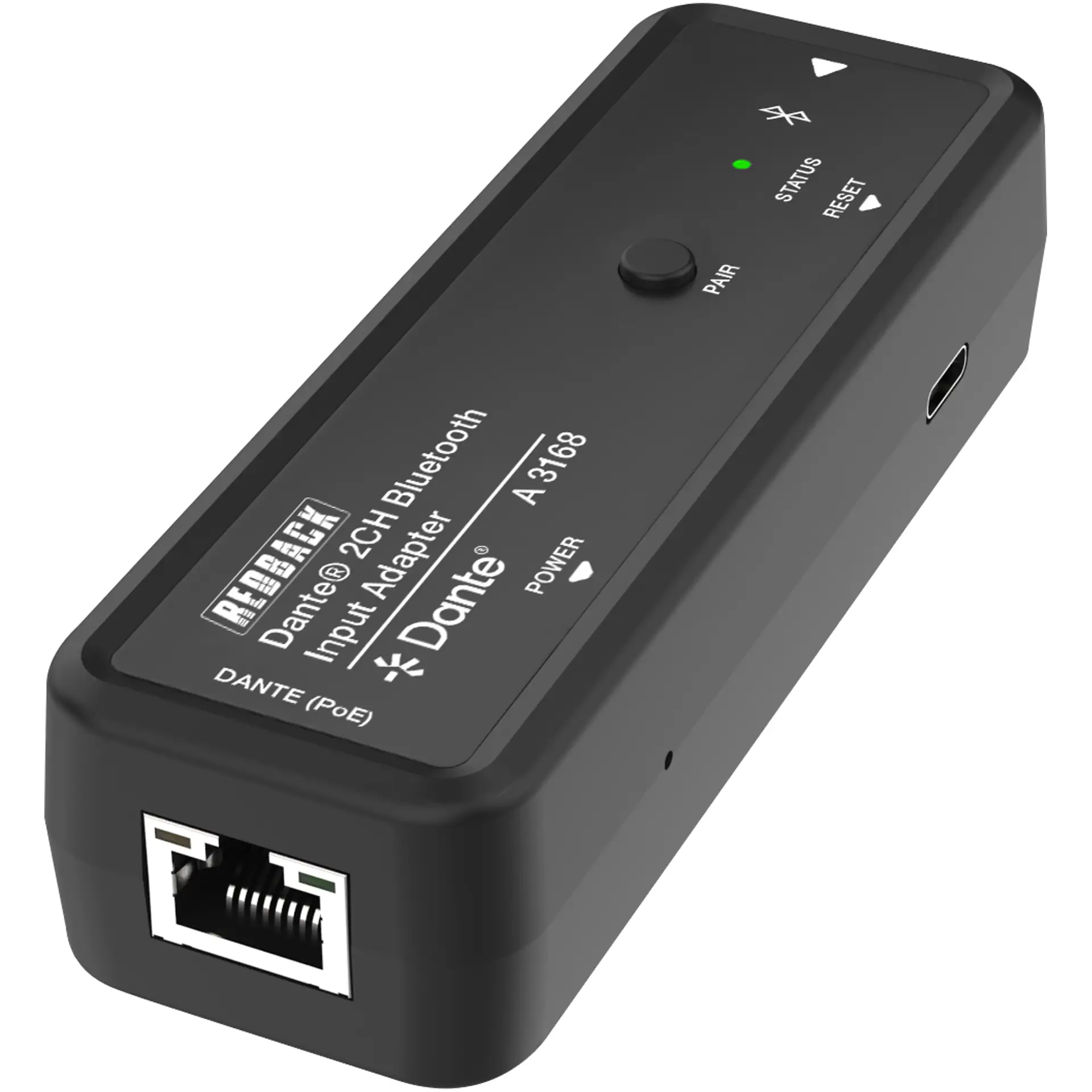

Bluetooth to Dante Output Adapter

SKU: A3168
This adapter converts two-channel Bluetooth audio into Dante 2CH digital audio, then transmits the audio to the receiving end through network Dante.
$259.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $259.09
2+ $240.91
i h

Overview

This Dante® 2CH Bluetooth Input Adapter is an audio transmitter based on the Dante® Ultimo 2x2. It converts two-channel Bluetooth audio into Dante® 2CH digital audio, then transmits the audio to the receiving end through network (Dante®). The adapter supports local USB-C port power supply and PoE function.



Package Contents

1x Dante® 2CH Bluetooth Input Adapter

2x Hook & Loop Ties

1x User Manual



Features:

  • Two-channel Bluetooth audio to Dante® 2CH digital audio
  • Supports Bluetooth V5.1, SBC/AAC/APTX/APTX-LL/APTX-HD, up to 192KHz@24bit
  • Dante® audio sampling rate supports 48KHz@24bit
  • Dante® audio delay supports 1/2/5ms (configurable)
  • Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
  • Compact design for easy and flexible installation



Specifications:

Technical:

Input: Two-channel bluetooth audio

Output: Dante® 2 channel digital audio

Control Method: Dante Controller

Video Network Bandwidth: 100M

Audio Latency: Configurable Dante® device latency (Supports 1, 2 or 5ms configurable using Dante® Controller)

Audio Formats: Bluetooth IN [Digital audio input, PCM 2CH 44.1K-192KHz 16/24bit]. DANTE OUT [Digital audio output, PCM 2CH 48KHz 16/ 24bit]

Transmission Distance: 100m (CAT6/6A/7)

ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)



Audio Parameters:

Input Impedance: N/A

Line Input Level (Maximum): N/A

Frequency Response: 20Hz to 20kHz (-/+0dB)

Dynamic Range: >100dB@2Vrms, 1kHzA-weighted

Audio S/N Ratio: >100dB@2Vrms, 1kHzA-weighted

Audio THD+N: < 0.01% at 0dBV, 1KHz



Connection:

Input port: 1x POWER [USB-C port, 12-pin female] 1x Bluetooth Input [Wireless]

Output port: 1x DANTE [RJ45 connector, PoE]

Others: 1x RESET button [System reboot button]  1x PAIR button 1x STATUS LED



Mechanical:

Housing: Plastic Enclosure

Colour: Black

Dimensions: 115W x 40D x 28Hmm

Weight: 93g

Power Supply: USB input: 5V/500mA, PoE input: PoE IEEE802.3af Class 0

Power Consumption: 0.65W (Max)

Operating Temperature: 0°C ~ 40°C

Storage temperature: -20°C ~ 60°C

Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)

Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing)

Details

Products specifications

Warranty 12 Months
