This extender can send HD video/audio signal and IR control up to 70m@1080p, and 40m@4K30 resolution via a single CAT5e/6 cable with zero-delay and uncompressed transmission. The HDMI loop output can be cascaded to the next extender, supporting resolution up to 4K@30Hz.

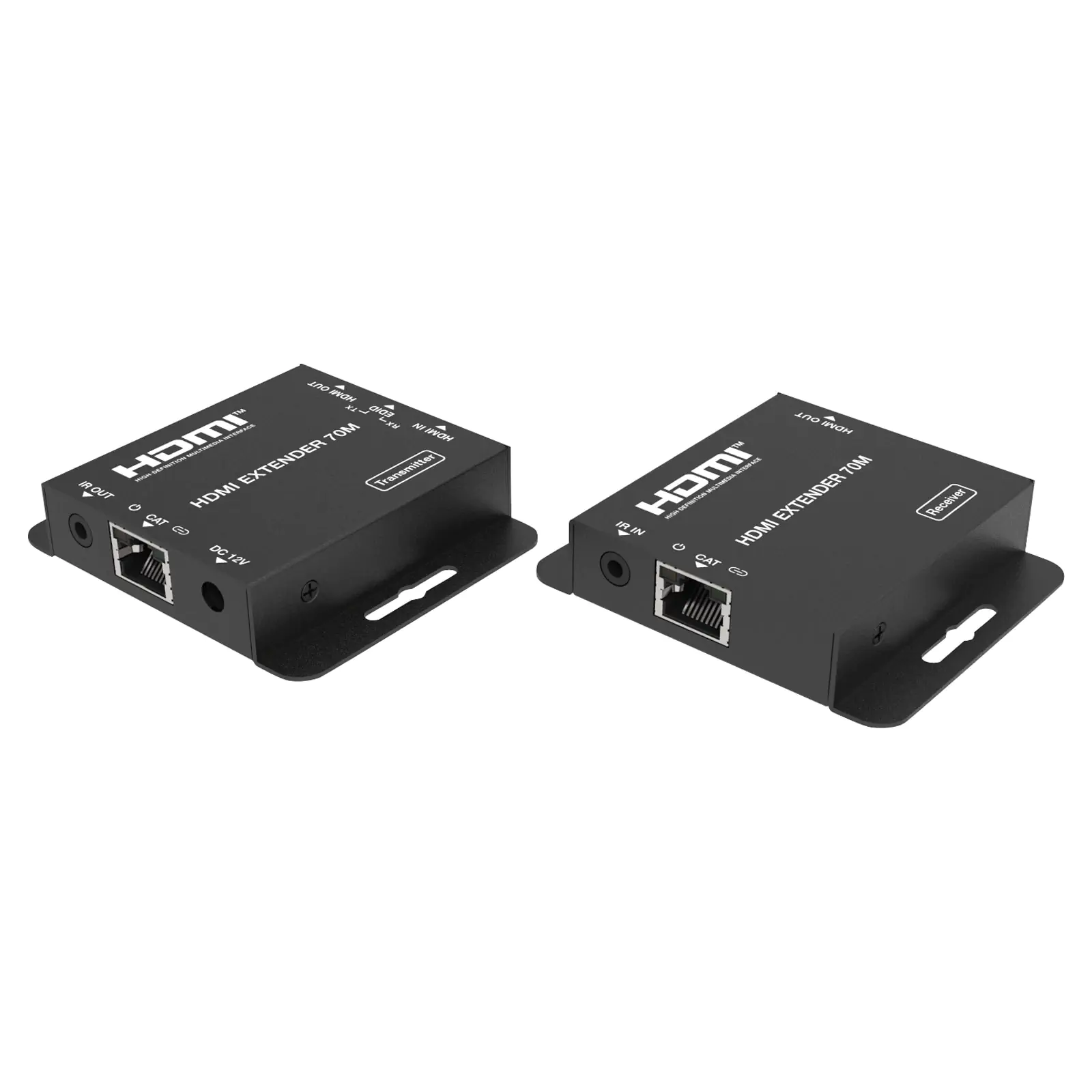

HDMI & Infra-Red Cat5e/6 Extender UTP Balun

Name: HDMI & Infra-Red Cat5e/6 Extender UTP Balun
SKU: A3217D
Price: 90.00 AUD
Availability: InStock

by: Dynalink

SKU: A3217D

Save $27.27 $90.00 ~~$117.27~~

All Prices Shown are (ex GST)

Bulk Pricing

ea	$90.00 $117.27
3+	$90.00 $104.55
6+	$90.00 $90.91

i h

Overview
Details
Warranty
Downloads

Overview

This extender can send HD video/audio signal and IR control up to 70m@1080p, and 40m@4K30 resolution via a single CAT5e/6 cable with zero-delay and uncompressed transmission. The HDMI loop output can be cascaded to the next extender, supporting resolution up to 4K@30Hz. Supports EDID copy function (you can choose local or remote EDID) and audio formats up to PCM7.1, Dolby True HD, DTS HD. Perfect for use in homes, conference rooms and education spaces. Dimensions: 79.5W x 69D x 16.5Hmm.

Package includes:
1 × HDMI Transmitter
1 × HDMI Receiver
1 × IR Blaster Cable (1.5m)
1 × IR Receiver Cable (1.5m)
1 × 12V/1A DC Power Adapter
1 × User Manual

Features:

Transmits up to 70m without signal loss
One-way IR signal transmission
HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
Compact design for discrete and flexible installation
Supports cascading via additional HDMI loop out
Supports video resolution up to 4k2k@30Hz YUV 4:4:4
Supports copying EDID from receiver display or loop out display
Supports Power over Cable (from transmitter to receiver)

Specifications:

Technical:

HDCP Compliance: HDCP 1.4

HDMI Compliance: HDMI 1.4

Video Bandwidth: 10.2Gbps

Video Resolution: Up to 4K @ 30Hz

Audio Support: Up to 7.1CH HD audio/Dolby True HD/DTS HD

Input TMDS Signal: 3.3 Volts

Input DDC Signal: 5.0 Volts/P-P

Connections:

Transmitter: Input: 1 x HDMI Type A [19-pin female], Outputs: 1 x HDMI Type A [19-pin female], 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x CAT OUT [RJ45, 8-pin female]

Receiver: Inputs: 1 x IR IN [3.5 Stereo Mini-Jack] 1 x CAT IN [RJ45, 8-Pin Female], Outputs: 1 x HDMI Type A [19-pin female]

Mechanical:

Housing: Metal Enclosure

Colour: Black

Dimensions: 79.5W x 69D x 16.5Hmm

Weight: Transmitter: 132g, Receiver: 130g

Power Supply: 12V/1A DC

Power Consumption: Transmitter: 1.86W, Receiver: 0.87W

Operation Temperature: 0°C ~ 40°C

Storage Temperature: -20°C ~ 60°C

Relative Humidity: 20~90% RH (non-condensing)
