Multi-Zone HDMI UTP Balun Extension System

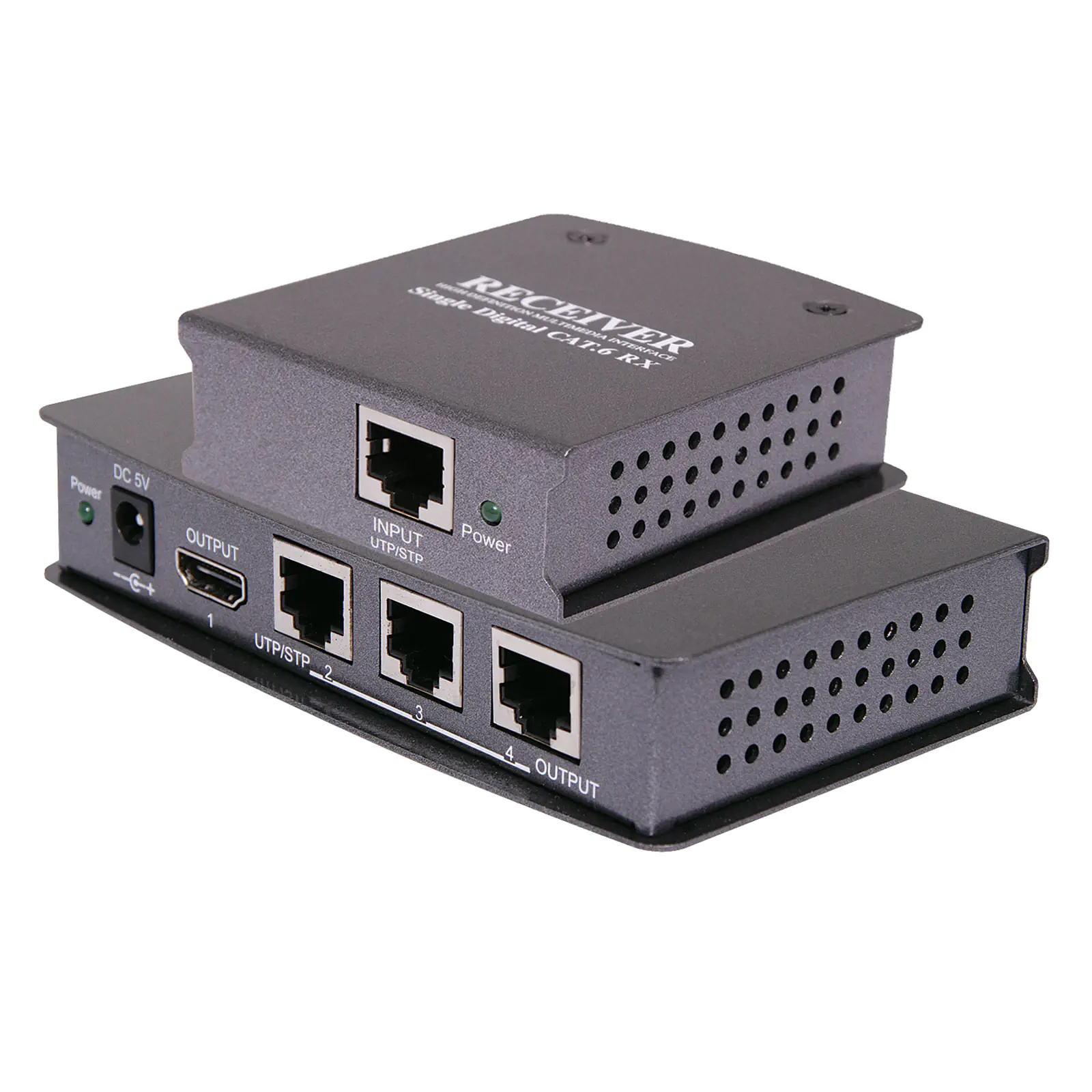

An ideal solution for pubs, clubs and venues, this HDMI balun extender system allows a single HDMI source to be shared across multiple screens located up to 30m away with Cat5e and 50m with Cat6. The transmitter is equipped with four outputs, one HDMI and three Cat6 UTP which transmit the HDMI source signal up to 50m away (1080p). Each UTP output can be either connected direct to a receiver (A 3226), or alternatively a transceiver (A 3225) and receiver can be ‘daisy chained’. Up to 7 screens can be connected to the same HDMI source. HDCP compliant.

Transmitter: Accepts High Definition sources (Games platform, Blu-ray player (inc 3D), DVD player, satellite receivers, digital projectors, AV receivers and set top boxes) and transmits video and audio over Cat.6 up to 50m. HDMI connector input + HDMI output + 3x Cat. 6 outputs. Power Supply 5V 2A.

Receiver: Accepts the Cat. 6 cable from the Transmitter, thereby acting as the extender of the original HDMI source. This is connected to the HDMI port of the HDTV monitor. Cat. 6 connector input + HDMI output. Power Supply 5V 1A.

Package Contents:
1 x Transmitter
1 x Receiver
2 x Power Supplies: Transmitter 5V 2A; Receiver / Transceiver 5V 1A
