Designed to extend HDMI signals over distances up to 60m across economical UTP cabling.

HDMI & One Way Infra-Red Cat6 Extender UTP Balun

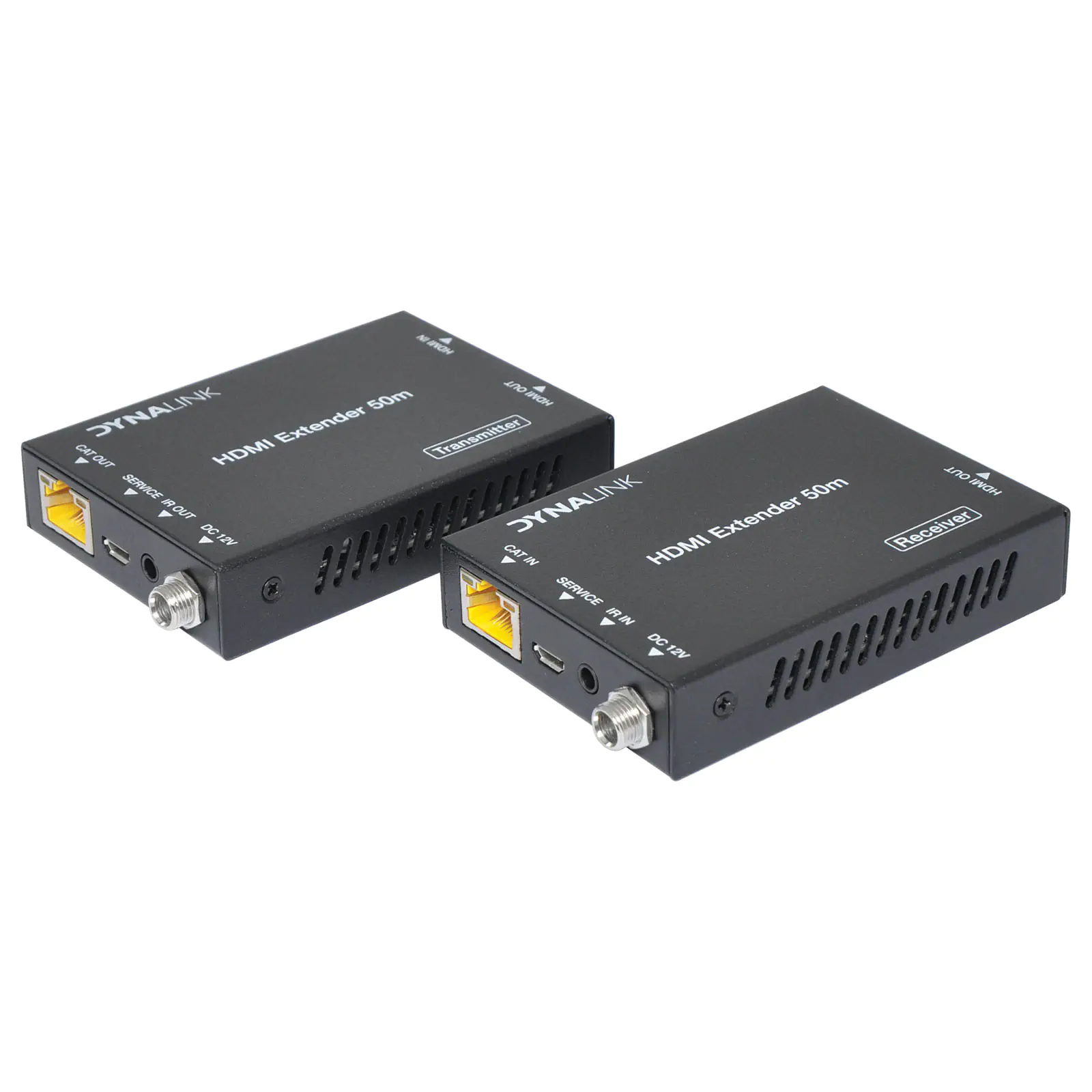

Name: HDMI & One Way Infra-Red Cat6 Extender UTP Balun
SKU: A3242
Price: 235.45 AUD
Availability: InStock

by: Dynalink

SKU: A3242

Designed to extend HDMI signals over distances up to 60m across economical UTP cabling.

$235.45

All Prices Shown are (ex GST)

Bulk Pricing

ea	$235.45
2+	$213.64
4+	$190.00

i h

Overview
Details
Warranty
Downloads

Overview

This HDMI & One Way Infra-Red Cat6 Extender UTP Balun is designed to extend HDMI signals over distances up to 60m across economical UTP cabling. Maximum resolution of 4K @ 60Hz 4:4:4 is achieved when used with Cat6/6a/7 type cables. One way infra-red control of source equipment is also possible using the included infra-red target and emitter. Includes transmitter, receiver, IR target, IR emitter and power supply.

Features:

Extends HDMI signals over distances up to 60m at 4k@ 60Hz 4:4:4 resolutions.
HDMI 2.0, HDCP 2.2 HDCP 1.4 and DVI 1.0 compliant
Supports 18Gbps bandwidth
Supports one HDMI loop output
Supports one-way IR pass-through
Supports HDR function

Specifications:

HDMI Compliance: 2.0

HDCP Compliance: 2.2 / 1.4

Video Bandwidth: 18Gbps

Video Resolution: Up to 4K 60Hz 4:4:4

Max Distance Cat6/6a/7: 60M @ 4K 60Hz, 70m @ 4K 30Hz

Max Disrance Cat5e: 50M @ 4K 60Hz, 50M @ 4K 30Hz

Colour Space: RGB / YCbCr 4:4:4, 4:2:2, 4:2:0, YUB 4:4:4

HDMI Audio: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby digital, True HD,

DD+, DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

Case Dimensions: 61W x 88D x 18Hmm

Power Supply: 12V DC 1A (included)

Details

Products specifications

Warranty	12 Months
Audio Visual
Type	HDMI Extenders
