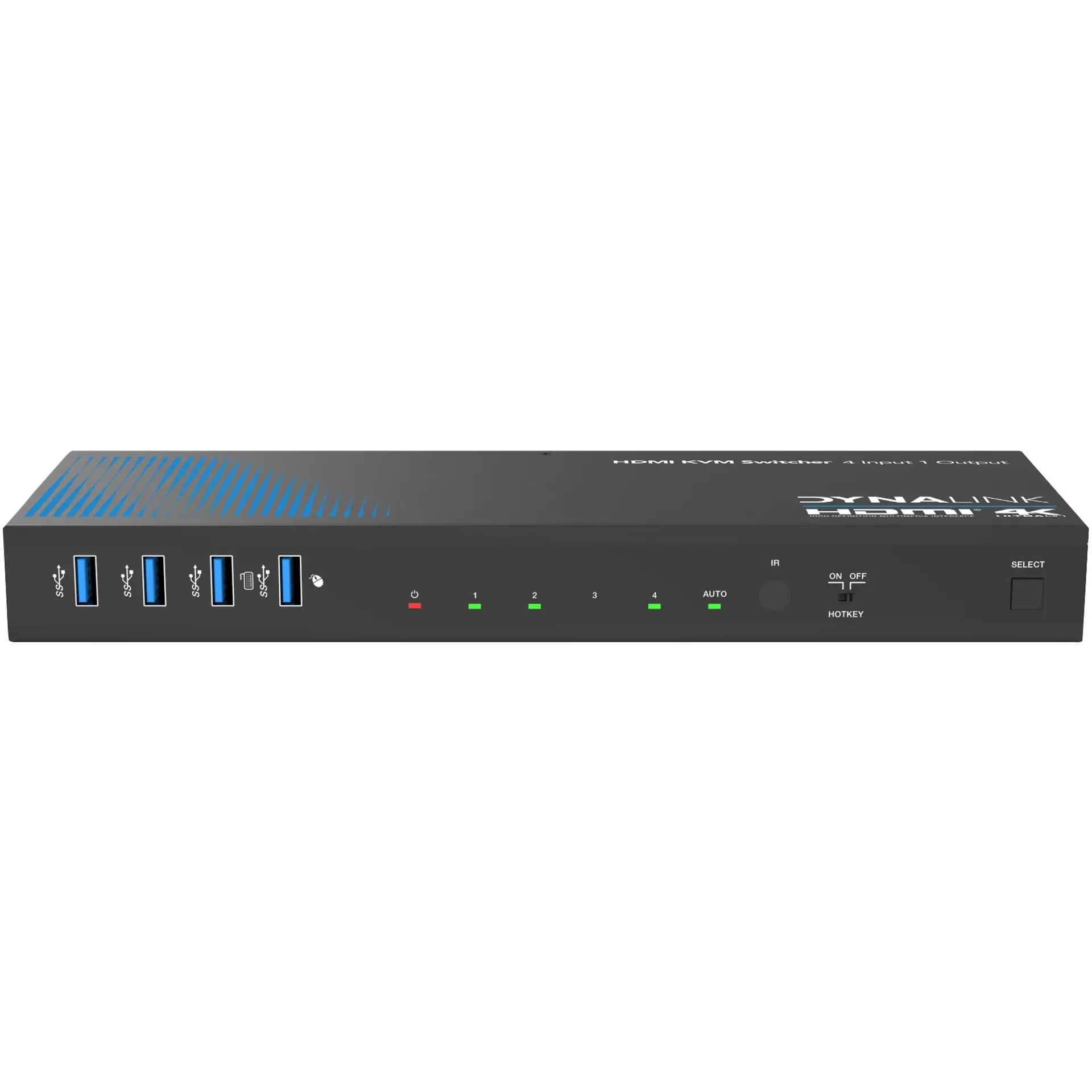

4 Way USB / HDMI 4K KVM Switcher

Name: 4 Way USB / HDMI 4K KVM Switcher
SKU: A3246
Price: 281.82 AUD
Availability: InStock

by: Dynalink

SKU: A3246

This product enables fast, flexible PC switching for up to 4 connected computers.

$281.82

All Prices Shown are (ex GST)

Bulk Pricing

ea	$281.82
2+	$253.64
4+	$226.36

i h

Overview
Details
Warranty
Downloads

Overview

Enables fast, flexible PC switching for up to 4 connected computers. It features automatic wake-up from standby and can be controlled via the front panel, included IR remote control or keyboard hotkeys. Plug and play support for windows, macOS and linux.

Features

Supports ultra-wide screen resolution up to 4K @ 60Hz, 2K @ 60Hz/144Hz
HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
Video fast switching and keyboard/mouse seamless switching
Hot pluggable disconnect/connect of devices at any time
Zero latency design
Integrated USB 3.0 ports for sharing devices with data transfer up to 5Gbps.

Specifications:

Technical

HDMI™ Compliance HDMI™: 2.0

HDCP Compliance: HDCP 2.3

Video Bandwidth: 18Gbps

Audio Latency: No Latency

Video Latency: No Latency

Video Resolution: Up to 4K@60Hz, 2K@60Hz/144Hz

IR Level: 5Vp-p

IR Frequency: Fixed frequency 38KHz

Colour Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Colour Depth: 8/10/12bit

HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG

CEC: Supported

ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

Audio Formats

HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD

L/R OUT: PCM 2.0CH

Connection

Input ports 4 x HDMI input [Type A, 19-pin female]

Output ports 1 x HDMI output [Type A, 19-pin female], 1 x L/R audio output [3.5mm Stereo Jack]

Control ports:

1 x RS-232 [3pin-3.81mm phoenix connector]

1 x IR EXT [3.5mm Stereo Jack]

4 x USB HOST [USB Type B]

4 x USB DEVICES [USB Type A]

Mechanical

Housing: Metal Enclosure

Colour: Black

Dimensions: 270W x 100D x 30Hmm

Weight: 756g

Power Supply Input: AC 100 - 240V 50/60Hz

Output: DC 12V/1A

Power Consumption Typical value: 5.28W

Standby mode: 0.72W

Operating Temperature: 0 - 40°C

Storage Temperature: -20°C ~ 60°C

Relative Humidity: 10% ~ 90% RH (non-condensing)

Recommended HDMI™ Cable

Video Resolution: 4K60 4:4:4, HDMI Cable Length (HDMI IN / OUT) 5m

Video Resolution: 1080P 4:4:4 HDMI Cable Length (HDMI IN / OUT) 10m

The use of “Premium High Speed HDMI” cable is highly recommended.
