USB 3.2 Gen 1 Extender Wallplate System

by: Dynalink
SKU: A3251
Provides a complete long distance USB signal solution for the latest high speed requirements of modern devices. Distance up to 100m.
$740.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $740.91
2+ $680.91
4+ $626.36
i h

Overview

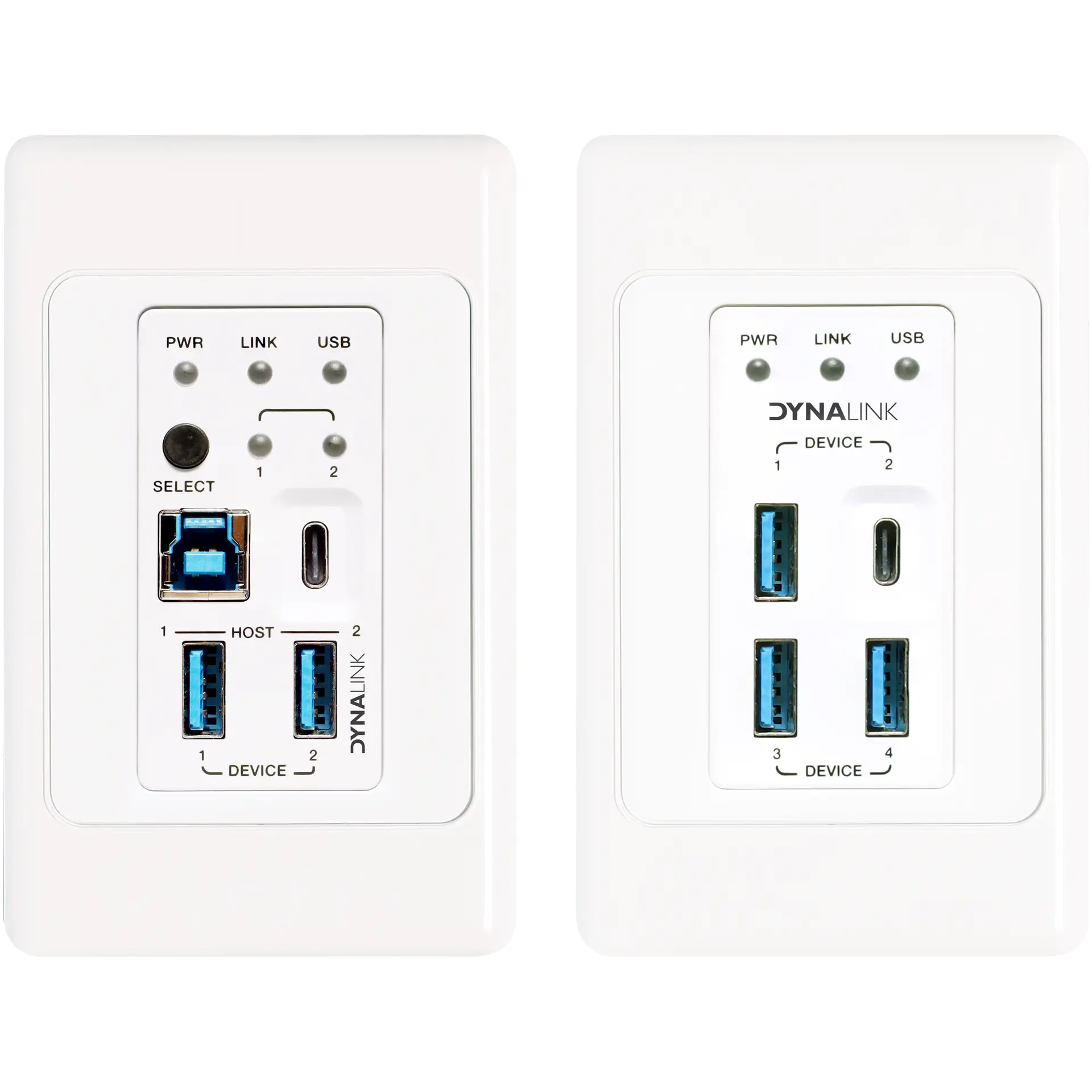

Provides a complete long distance USB signal solution for the latest high speed requirements of modern devices. It utilises standard UTP Cat6a cabling to extend USB connectivity over distances up to 100m. The transmitter and receiver have been integrated to a standard Australian wallplate for simple installation. The transmitter plate features one USB type C and one USB type B input ports which can be selected using the button on the front panel. A USB type A port is provided as a loop output to provide local connectivity to the device if required. The receiver features one USB type C and three USB type A device ports. Bi-directional 24V PoC (Power over Cable) function allows users to only supply power to either the transmitter or the receiver.  Can be widely used for long distance USB signal transmission between USB sources and devices eg: webcams, PTZ cameras, keyboard & mouse, microphones, storage devices, printers, scanners, touch panel displays and other USB devices.



Features:

  • Standard Australian wallplate.
  • Extends USB 3.2 Gen 1 signals up to 100m over CAT6a cable.
  • USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps.
  • Backwards compatible with USB 2.0 and 1.1.
  • Auto switching and manual switching modes.
  • RS-232 pass-through and API control.
  • FSYNC GPIO pass-through for camera use.
  • Bi-directional 24V PoC (Power over Cable).



Specifications:

Technical:

USB Protocol: USB 3.2 Gen 1

Transmission Rate: Up to 5Gbps

Transmission Distance: 100m via CAT6a (F/FTP) cable, 1.5m via USB cable

ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)



Connections (Transmitter):

Input: 1 x HOST 1 [USB Type C, 24-pin female], 1 x HOST 2 [USB Type B, 9-pin female]

Output: 2 x USB-A DEVICE [USB Type A, 9-pin female], 1 x HDBT-USB3 [RJ45 connector, 24V PoC]

Control: 1 x RS-232 [3pin-3.5mm phoenix connector], 1 x FSYNC [1pin-3.5mm phoenix connector], 1 x SERVICE [USB Type C, firmware update port]



Connections (Receiver):

Input: 1 x HDBT-USB3 [RJ45 connector, 24V PoC]

Output: 3 x USB-A DEVICE [USB Type A, 9-pin female], 1 x USB-C DEVICE [USB Type C, 24-pin female]

Control: 1 x RS-232 [3pin-3.5mm phoenix connector], 1 x FSYNC [1pin-3.5mm phoenix connector], 1 x SERVICE [USB Type C, firmware update port]



Mechanical:

Housing: Plastic Front Panel + Metal Enclosure

Colour: White + Black

Dimensions: 45mm [W] x 42mm [D] x 103.5mm [H]

Weight: Transmitter: 115g; Receiver: 115g

Power Supply: Input: AC 100~240V 50/60Hz, Output: DC 24V/3.75A

Power Consumption: 62W (Max)

Operating Temperature: 0°C ~ 40°C

Storage temperature: -20°C ~ 60°C

Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)

Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing)
