HDMI / USB-C HDBaseT Cat6 Extender System with USB KVM

by: Dynalink
SKU: A3252
This 4K60 HDBaseT wall plate provides the latest connectivity for USB type C and HDMI signals over long distances up to 40m (4K @ 60Hz) or 70m (1080p) using standard Ca6/6a/7 UTP cabling. Perfect for boardrooms, conference venues, classrooms where long distances between source and display are common.
$1,031.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $1,031.82
2+ $936.36
4+ $845.45
i h

Overview

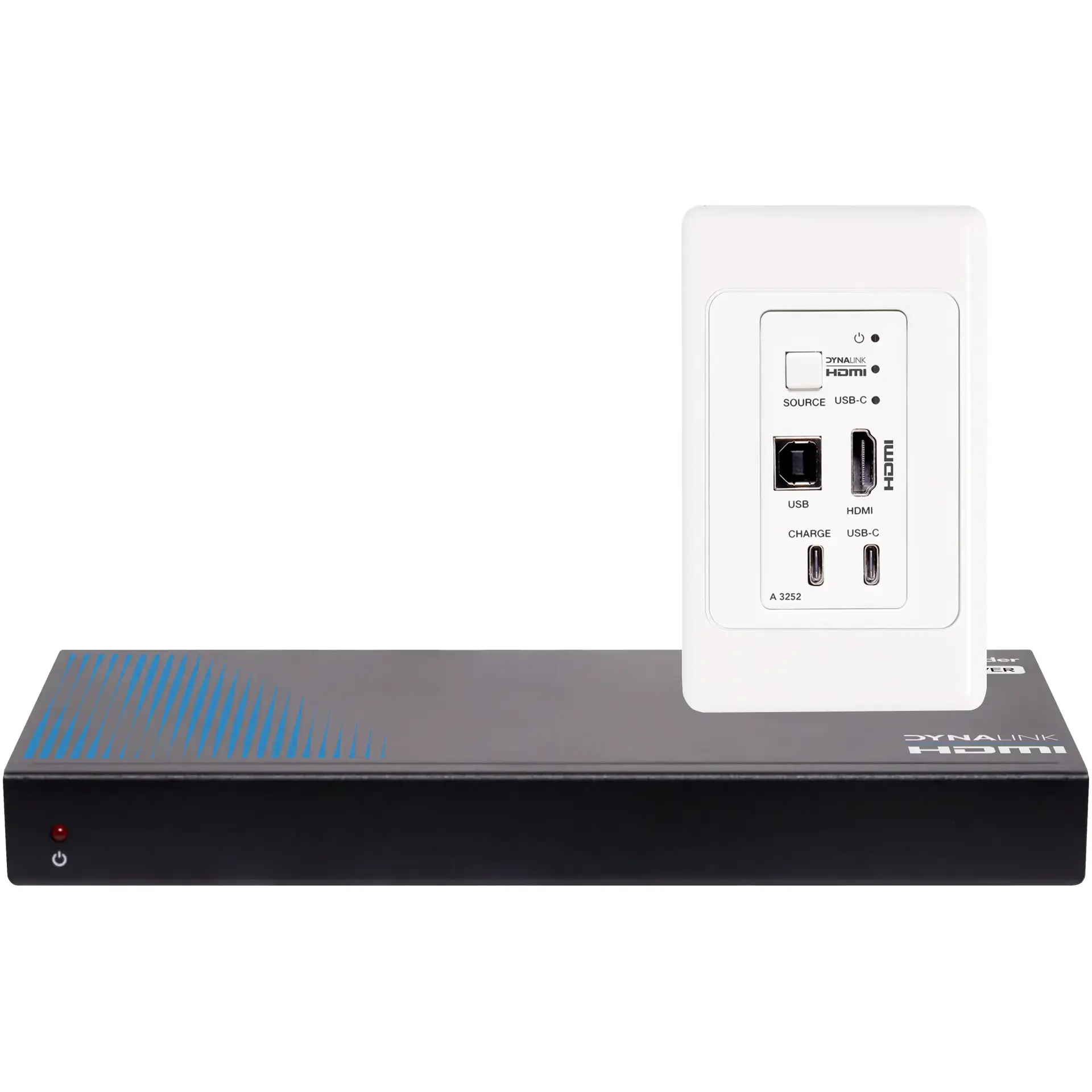

This 4K60 HDBaseT wall plate provides the latest connectivity for USB type C and HDMI signals over long distances up to 40m (4K @ 60Hz) or 70m (1080p) using standard Ca6/6a/7 UTP cabling. Perfect for boardrooms, conference venues, classrooms where long distances between source and display are common. The use of HDBaseT technology ensures optimum signal integrity without losses while providing the latest audio & video feature support (such as HDR10+, Dolby Atmos, DTSX, HD Master Audio and more). Plus power over ethernet (PoE) makes installation simple. The wallplate is provided with a simple 2x1 input switcher (USB C or HDMI) and is mated to a standard Australian electrical wallplate. System includes 1 wallplate transmitter and 1 receiver. A USB type B connector is provided for connection to local console computer which can be controlled using the KVM peripheral ports on the receiver box. Includes power supply.

In the box:

1 x Transmitter wallplate.
1 x Receiver unit.
1 x 24V DC power supply.
1 x User manual.



Features:

  • Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a specifications.
  • HDMI input supports a maximum video bandwidth of 18Gpbs and USB-C input supports a maximum video bandwidth of 5.4Gpbs.
  • Video resolution supports up to 4K@60Hz 4:4:4.
  • Through a single CAT6/6a/7 network cable, HDBaseT output can extend the video signal by 40 meters (resolution of 4K@60Hz) or 70 meters (resolution of 1080P@60Hz).
  • Supports HDR10 and HDR10+.
  • Supported HDMI audio formats include Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8CH.
  • Support HDMI and USB-C input.
  • Fitted to a standard Australian wallplate.
  • Input signal selection supports automatic mode and manual mode.
  • Receiver with USB 2.0 expansion.
  • Support POE power supply (only one-way power supply from receiver to transmitter).
  • With USB-C charging port.





Specifications:

Audio Visual
HDMI: HDMI 2.0b
HDCP: HDCP 2.2
DisplayPort: DisplayPort 1.2a
Video bandwidth: HDMI 18Gbps, USB-C 5.4Gbps
Video resolution: 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
Color depth: 8/10/12-bit
HDR: HDR10, HDR10+
HDMI Audio Format:    Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio 5.1; PCM 2-8Ch
Transmission distance:    Through a single CAT6/6a/7 network cable, the video signal can be transmitted 70 metres (resolution 1080P@60Hz) or 40 metres (resolution 4K@60Hz)

Transmitter Connections
Input Ports: 1 x HDMI, 1x USB-C
Output Ports: 1 x HDBaseT OUT RJ45, 1x USB-C (for power only)
Console Port: 1 x USB-B
Firmware Upgrade: Micro USB

Receiver Connections
Input Ports: 1 x HDMI IN, 1x HDBaseT IN RJ45
Output Ports: 1 x HDMI OUT, 1x audio OUT (terminal block connector)
Console Ports: 2 x USB-A
Firmware Upgrade: Micro USB

General
Case: Metal casing
Plate Color: White
Wall Plate Dimensions: 76W x 116H x 47Dmm
Receiver Dimensions: 200W x 23D x 98Dmm
Power supply: POE power supply (only one-way power supply from receiver to transmitter)
Wall plate power consumption: 9W (max)
Receiver power consumption: 11W (max)
Operating temperature: 0°C - 40°C
