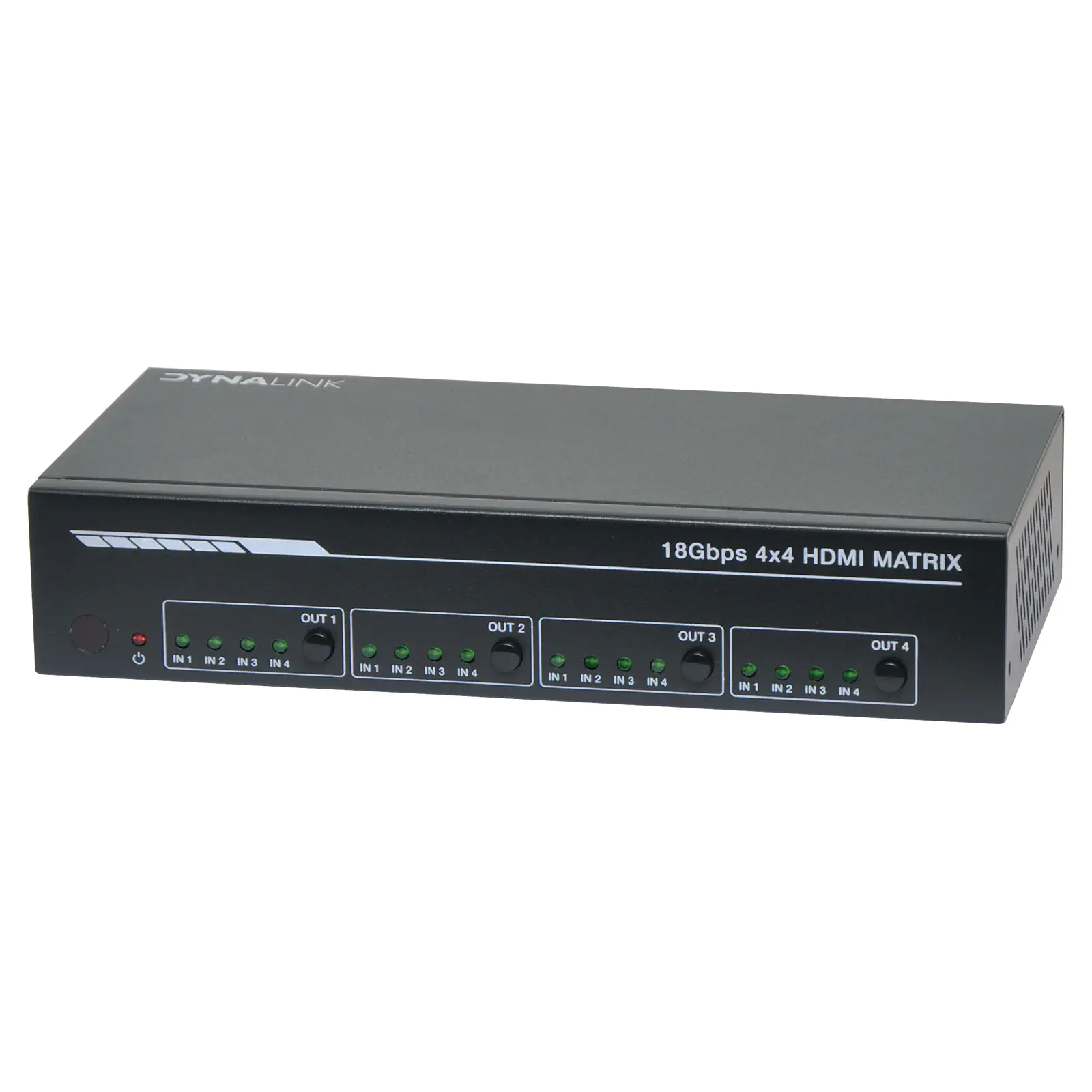

This 4x4 HDMI 2.0 18Gbps Matrix Switcher can switch any of these 4 HDMI 2.0 Sources to four HDMI 2.0 Displays.

4x4 HDMI 2.0 18Gbps Matrix Switcher

Name: 4x4 HDMI 2.0 18Gbps Matrix Switcher
SKU: A3443B
Price: 680.91 AUD
Availability: InStock

by: Dynalink

SKU: A3443B

This 4x4 HDMI 2.0 18Gbps Matrix Switcher can switch any of these 4 HDMI 2.0 Sources to four HDMI 2.0 Displays.

$680.91

All Prices Shown are (ex GST)

Bulk Pricing

ea	$680.91
2+	$613.64
4+	$544.55

i h

Overview
Details
Warranty
Downloads

Overview

This 4x4 HDMI 2.0 18Gbps Matrix Switcher is designed for commercial AV systems and can switch any of the 4 HDMI 2.0 Sources to four HDMI 2.0 Displays. Each input and output supports up to 4K @ 60Hz 444 resolution and HDCP 2.2. The outputs can be individually scaled for 1080p. De-embedded audio as analog L/R and coaxial is available for both outputs. The ARC function can return display device audio to coaxial port output only. Advanced EDID management is supported. With its 18Gbps bandwidth and the additional features with latest HDMI standards. This switcher can be controlled from the front panel, RS-232, IR remote or TCP/IP. See accessories list below for replacement remote control battery.

Package Contents
1 x 4x4 HDMI 2.0 18Gbps Matrix Switcher
1 x 12V/2.5A Locking Power Adapter
1 x IR Remote
2 x Mounting Ears
1 x 38KHz IR Receiver Cable (1.5m)
1 x 3-Pin Phoenix Connector
1 x User Manual

Features

HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
Four 18G HDMI 2.0 video outputs support up to 4K60 444 resolution
Four outputs can be individually scaled for 4K - 1080p
De-embedded audio to analog L/R and Coaxial ports output
ARC audio return to the coaxial ports output only
Built-in Web GUI for TCP/IP control
Advanced EDID management supported
Four methods of control: Front panel, RS-232, IR remote and TCP/IP
Compact design for easy and flexible installation

Specifications

Mechanical

Housing: Metal Enclosure

Colour: Black

Dimensions: 220W × 105 × 44H mm

Weight: 792g

Power Supply: Input: AC100~240V 50/60Hz, Output: DC12V/2.5A (Locking connector)

Power Consumption: 10W (max), 1.56W (Standby)

Operating Temperature: 0°C ~ 40°C

Storage Temperature: -20°C ~ 60°C

Relative Humidity: 20~90% RH (non-condensing)

Technical

HDMI Compliance: HDMI 2.0

HDCP Compliance: HDCP 2.2 and HDCP 1.4

Video Bandwidth:18 Gbps

Video Resolution: 4K2K 50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:0, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats, All PC resolutions including 1920 x 1200

Output Scaling: 4K to 1080p

3D Support: Yes

Colour Space: RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0

Colour Depth: 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] 8-bit [4K60Hz (YCbCr 4:4:4)]

HDMI Audio Formats: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

Coaxial Audio Formats: PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1

L/R Audio Formats: PCM2.0CH

HDR Support: HDR10, HDR10+. Dolby Vision, HLG

ESD Protection: Human-body Mode:l ±8kV (Air-gap discharge), ±4kV (Contact discharge)

Connections

Input Ports; 4×HDMI Type A [19-pin female]

Output Ports: 4×HDMI Type A [19-pin female], 4×L/R audio out[3.5mm Stereo Mini-jack] 4×COAX audio out[RCA]

Control ports: 1x TCP/IP [RJ45], 1x RS-232[3-pin phoenix connector], 1x IR EXT [3.5mm Stereo Mini-jack]

Resolution/Cable Length

HDMI IN / OUT : 4K60 - 3M

HDMI IN / OUT : 4K30 - 10M

HDMI IN / OUT : 1080P60 - 15M

The use of “Premium High Speed HDMI” cable is highly recommended.

THIS PRODUCT CONTAINS A BUTTON BATTERY.

If swallowed, a lithium button battery can cause severe or fatal injuries within two hours.
Keep batteries out of reach of children.
If you suspect your child has swallowed or inserted a button battery, immediately call the 24-hour poisons information centre on 13 11 26 (within Australia) and seek medical attention.

Details

Products specifications

Warranty	12 Months
Audio Visual
Type	HDMI Switchers

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
