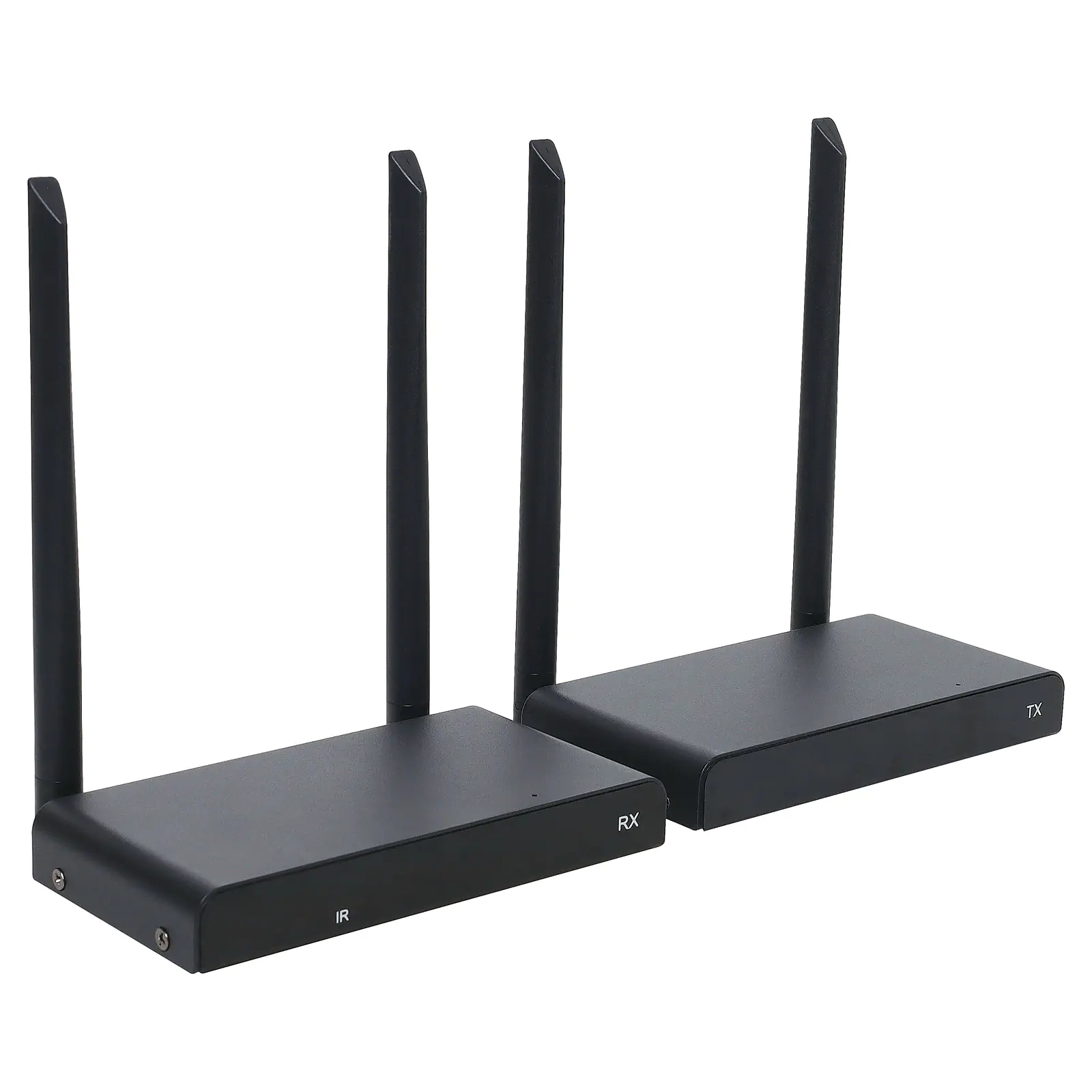

4K Wireless HDMI Video Sender System

by: Dynalink
SKU: A3605
This 4K wireless HDMI extender system supports 4K 60Hz resolutions with super smooth playback and low latency. You can now watch TV in your bedroom, study or any other room without messy cables.
$544.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $544.55
2+ $490.00
4+ $435.45
i h

Overview

This 4K wireless HDMI extender system supports 4K 60Hz resolutions with super smooth playback and low latency. You can now watch TV in your bedroom, study or any other room without messy cables. You can wirelessly send the HD video signal from an HDMI source (for example, your set-top box) to a second TV or projector in another room and continue to operate those remotely.

Wirelessly stream video content from one transmitter to multiple receivers simultaneously, with only minimal latency. Excellent for applications like education or digital signage.

Important note about latency performance: This sender utilises compressed signal transmission, which encodes the video prior to being transmitted to the wireless receiver. Latency performance will vary according to the complexity of the video being encoded AND the environment the system is installed in. Longer distances and sources of interference, whether they be walls or other sources of RF/EM interference, will have an effect on the overall latency of the transmission.

In The Box:
1 x HDMI Transmitter
1 x HDMI Receiver
2 x 5V 2.1A Power Supplies
2 x USB Type C Cables
1 x Micro USB Cable
1 x IR Transmitter Cable
2 x HDMI Cables



Features:

  • Supports 4K @ 60Hz.
  • As low as 100ms latency.
  • Supports 20-60KHz IR remote extension.
  • Supports USB KVM function.
  • Up to 150m transmission line of sight.
  • Auto channel selection.
  • Equipped with 802.11ac 2T2R WiFi MIMO module.
  • High-security protection.
  • Supports one transmitter to multiple receivers.
  • Supports HDCP2.2





Specifications:



General:

System Video Resolution: 4K60; 4K30; 4K24; 1080P60/50/30/24;1080i60/50; 720P/60/50/30 480P

Audio: Stereo, 44.1KHz

Wireless standard: IEEE 802.11b/g/n/ac, 2.4G/5GHz, 2T2R

Latency: About 100ms latency

HDMI Version: HDMI 2.0 with HDCP2.2

Platform: supported Any devices that support HDMI Port

Distance: approx. 150m in clear line of sight



Transmitter:

Interface: HDMI out x1; HDMI in x 1; Micro USB x 1; 3.5mm jack x1; Type x1

LED: Red/Blue LED x 1

Switch: Button x 1

Power supply: DC5V/2.1A

Power Consumption: About 7W

Dimension: 154 x 77.5 x 21mm

Weight: 330g



Receiver:

Interface: HDMI out x1; USB x 2; Type C x1

LED: Blue LED x 1

Power supply: DC5V/2.1A

Power Consumption: About 5W

Dimension: 154*77.5*21mm

Weight: 330g

Details

Products specifications

Warranty 12 Months
Audio Visual
Type HDMI Extenders

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
