With the help of this audio extractor you can extract audio signals from any HDMI compliant source to digital optical or analog stereo audio outputs.

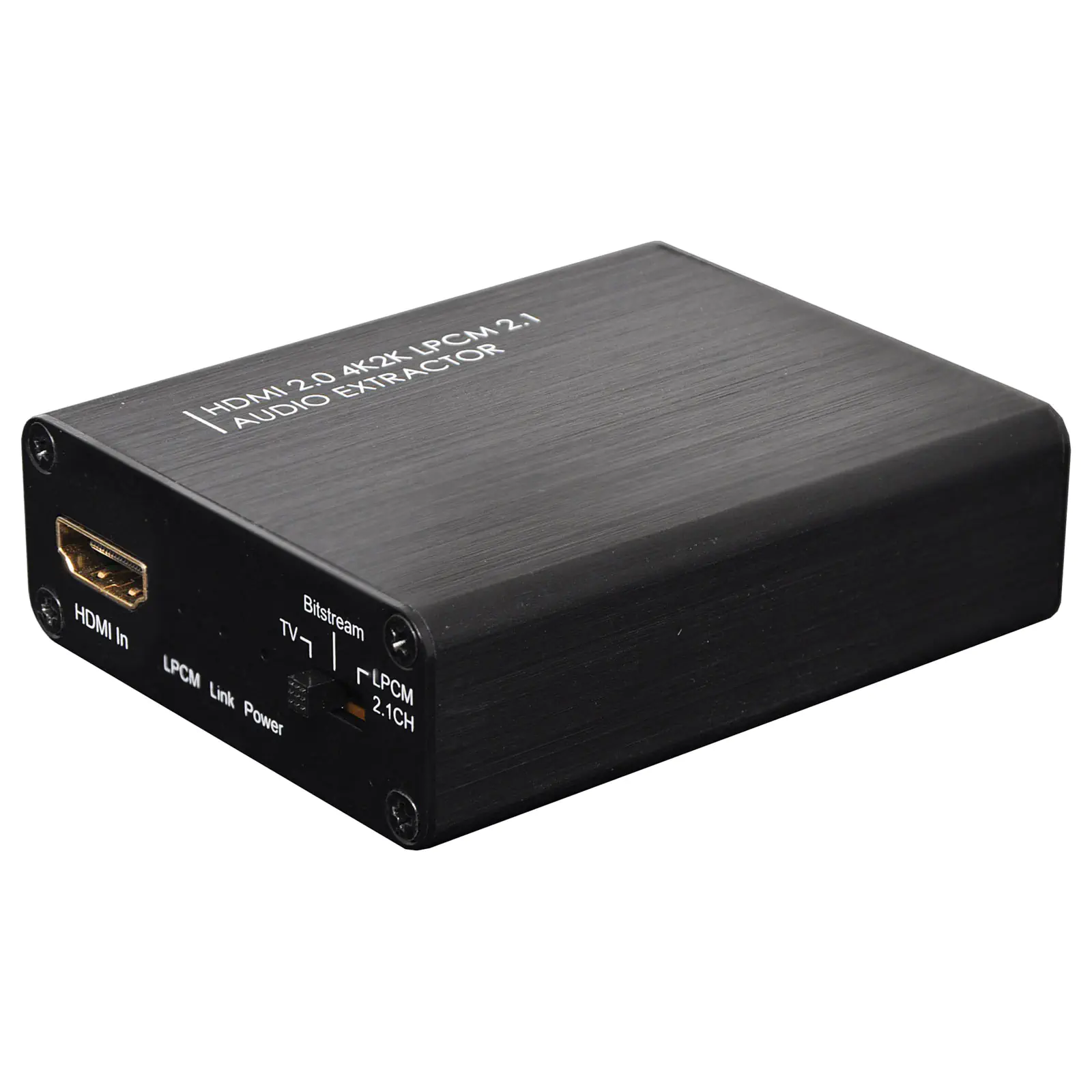

HDMI 2.0 4K2K Audio Extractor

Name: HDMI 2.0 4K2K Audio Extractor
SKU: A3831
Price: 71.82 AUD
Availability: InStock

SKU: A3831

With the help of this audio extractor you can extract audio signals from any HDMI compliant source to digital optical or analog stereo audio outputs.

Save $18.18 $71.82 ~~$90.00~~

All Prices Shown are (ex GST)

Bulk Pricing

ea	$71.82 $90.00
2+	$71.82 $80.91
4+	$71.82

i h

Overview
Details
Warranty
Downloads

Overview

With the help of this audio extractor you can extract audio signals from any HDMI compliant source to digital optical or analog stereo audio outputs. It features both input and output of HDMI supporting video resolution up to 4K2K at 50/60Hz. Includes power supply.

Features

Compliant with HDMI 2.0b, HDCP 2.2 and DVI
Supports HDMI Video resolution up to 4K2K@60Hz YUV4:4:4
Extracts HDMI Audio to multi-channel optical (SPDIF) or L/R analog audio
Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1Ch
Supports HDMI Hight bit Rate audio pass through
Audio Sample rates up to 192kHz
10bits HDR (high dynamic range) pass through
Supports CEC bypass

Specifications

General

Dimensions: 77x64x23mm

Power Supply: Input: AC 100-240V 50/60Hz

Output: DC 5V/2A

Technical

HDMI Compliance: HDMI 2.0b

HDCP Compliance: HDCP 2.2 and HDCP 1.4

Video Bandwidth: 18Gbps

Video Resolutions: Up to 4K2K at 50/60Hz (YUV 4:4:4), 4K2K at 30Hz, 1080p at 120Hz, 1080p 3D at 60Hz

Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2

Colour Depth: 10-bit, 12-bit

HDMI Audio Formats: LPC< 2.1CH, Dolby Digital, DTS 2.1, Dolby Digital + Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

Optical Audio Formats: LPCM 2.1CH, Dolby Digital 2.1CH, DTS 2.1CH

L/R Audio Formats: Analog Stereo 2CH

ESD Protection: Human body model

Connections

Inputs: 1x HDMI Type A (19-pin Female)

Outputs: 1x HDMI Type A (19-pin Female)

1x L/R Audio Out (3.5mm Stereo Mini-jack)

1x Optical Out (S/PDIF)

Details

Products specifications

Warranty	12 Months
Audio Visual
Type	HDMI AV Converters

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Instructions

PDF
