Designed to meet the requirements of small to medium sized professional public address installations, delivering an output power of 30W RMS.

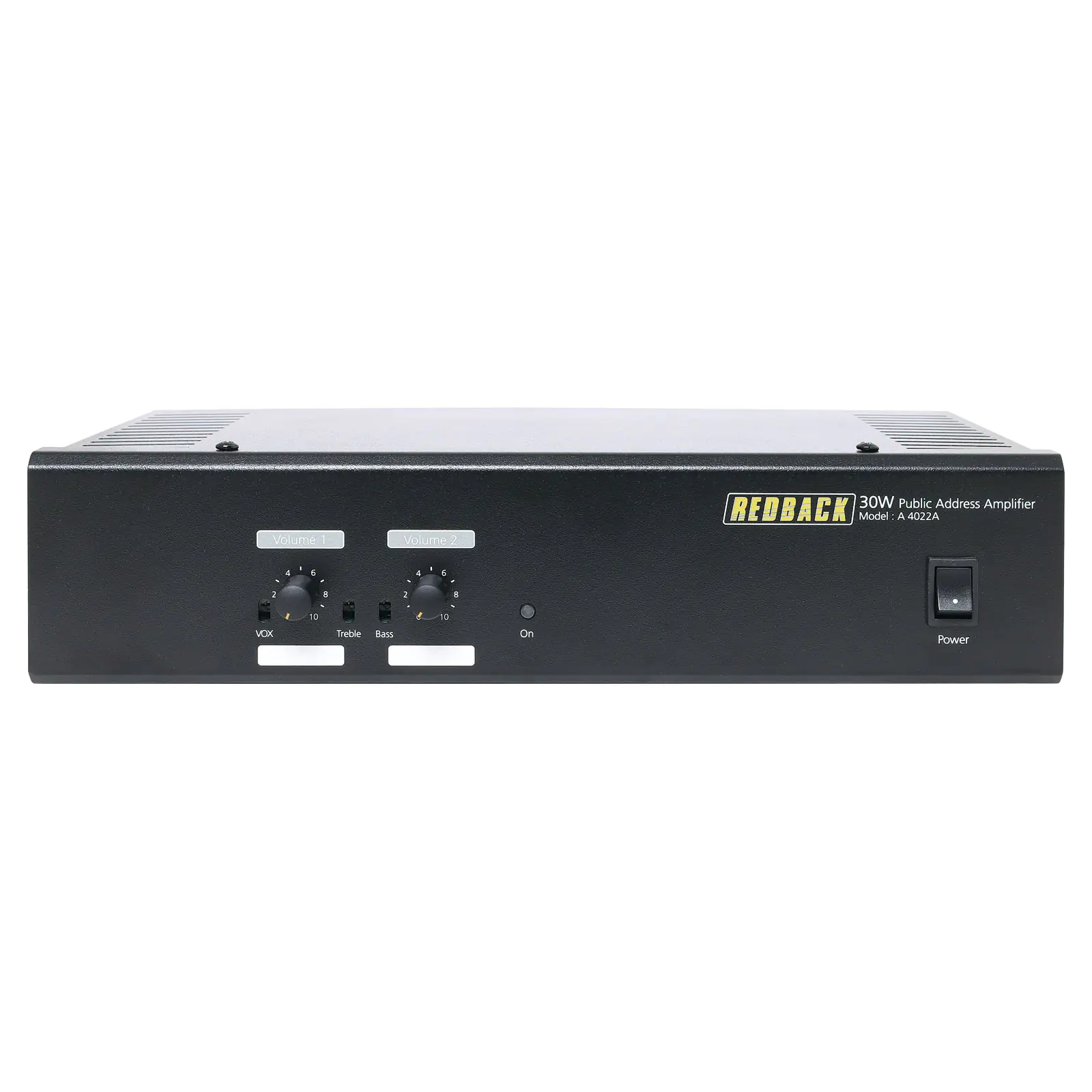

30W 2 Input 100V Public Address (PA) Amplifier

Name: 30W 2 Input 100V Public Address (PA) Amplifier
SKU: A4022A
Price: 386.36 AUD
Availability: InStock

by: Redback

SKU: A4022A

Designed to meet the requirements of small to medium sized professional public address installations, delivering an output power of 30W RMS.

$386.36

All Prices Shown are (ex GST)

Bulk Pricing

ea	$386.36
2+	$344.55

i h

Overview
Details
Warranty
Downloads

Overview

Designed to meet the requirements of small to medium sized professional public address installations, delivering an output power of 30W RMS. . With one balanced microphone and two stereo line inputs, with recessed treble and bass controls, it’s perfect for simple installations requiring minimal inputs. Frequency response extends from 40Hz to 10kHz at a total harmonic distortion (THD) of less than 0.5%. Output is 100V line only. VOX circuit on input 1 mutes input 2. Features variable sensitivity and time delay setting.

Features:

Balanced microphone input
Built in VOX muting circuit
Stereo line inputs
Bass and treble tone controls
240V AC operation

Specifications:

Power output: 30 watts RMS

Distortion: < 0.5% @ 1kHz

Output line: 100V

Signal to Noise Ratio

All volume controls min, typically 72dB below rated output.

All inputs display same S/N ratio.

Frequency Response

Mic: 52Hz - 10kHz, -3dB

Line: 40Hz - 10kHz, -3dB

Input Sensitivity

Mic input: 2.6mV balanced

Line inputs: 150mV

Controls

Volume 1: Controls mic 1 / line 1

Volume 2:. Controls line 2

Bass: ±10dB @ 100Hz

Treble: ±13dB @ 10kHz

Power: On/off switch

Output Connectors

Speakers: Screw terminals

Muting

VOX muting on Input 2 only.

Input Connectors

Mic input: 3 pin XLR balanced

Line inputs: RCA stereo socket, bridged mono

240V AC power: IEC power connector

General

Power supply: 240V AC

Indicators: Power

Fuse protection: 800mA AC, 3A x 2 DC internal

Size: 300W x 220D x 74H mm

Weight: ≈4.8kg

Colour: Black

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.
