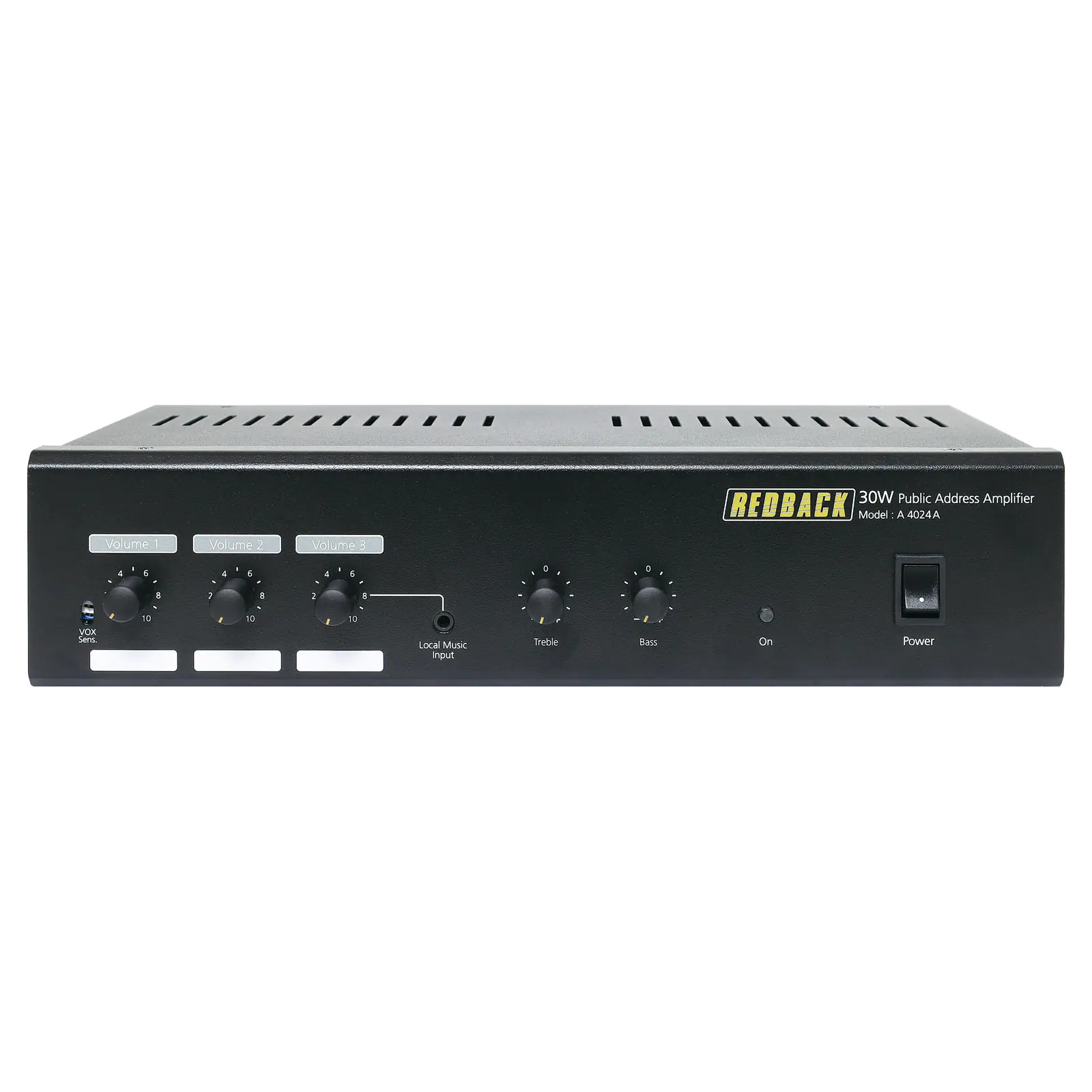

30W 3 Input 100V Public Address (PA) Amplifier

by: Redback
SKU: A4024A
A longstanding staple of the Redback range, the 30W amplifier meets the requirements of small to medium public address installations.
$436.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $436.36
2+ $395.45
i h

Overview

A staple of the Redback range since we first started, the 30W amplifier meets the requirements of small to medium public address installations. Features VOX muting, three combined balanced microphone / stereo line inputs, tape out, and separate bass and treble controls. Offers a wide scope of installation applications, including schools, public halls, workshops and sporting complexes. Output may be 100V line or low impedance (8 - 16Ω) speaker loads. This unit features thermal overload shutdown, over current and short circuit protection.

Vox muting: VOX muting is provided on input one, which, when activated, automatically mutes inputs 2 and 3.

Output Muting: An output mute is provided which will mute the output of the amplifier when the Mute Trigger terminals are closed. The output will remain muted while the contacts are closed. This is ideal for emergency override situations.



Features:

  • VOX muting on input 1.
  • Balanced microphone inputs.
  • Output muting circuit.
  • Stereo line inputs & tape output.
  • Bass and treble tone controls.
  • Output terminals for 100V line and 8 - 16Ω loads
  • Over-voltage, over current, thermal run-away and short circuit load protection.
  • Muting Features: VOX Muting Via Input 1, Switch Contacts and Output Muting





Specifications:



General:

Power Output:. 30 Watts RMS

T.H.D.: typically < 0.5% @ 1kHz

Frequency Response:

Microphone: 52Hz - 10kHz, ±3dB

Auxiliary: 40Hz - 10kHz, ±3dB

Speaker Outputs: 100V (330Ω) (floating) or 8 - 16Ω (0V referenced)

Noise Level: All volume controls min: Typically 76dB below rated output (All inputs display same signal to noise ratio)

Dimensions: ˜ 300W x 220D x 80H mm

Weight: ˜ 4.1kg

Colour: Black

Accessories: IEC Mains Lead



Output Connectors:

Speakers: Screw Terminals

Tape Output: RCA Stereo Socket



Input Sensitivity:

Mic 1: 2.6mV Balanced or 3.2mV Unbalanced

Mic 2: 2.6mV Balanced

Mic 3: 2.6mV Balanced

Aux 1: 150mV

Aux 2: 150mV

Aux 3: 150mV



Muting:

PTT Via Microphone

Switch Contacts

or Optional VOX Muting

-79dB below rated output



Input Connectors:

Mic 1: 3 pin XLR balanced

Mic 2: 3 pin XLR balanced

Mic 3: 3 pin XLR balanced

Aux 1: RCA Stereo Socket

Aux 2: RCA Stereo Socket

Aux 3: RCA Stereo Socket

240V AC Power: IEC Type Chassis Socket



Controls:

Input 1 (Mic 1 / Aux 1): Volume

Input 2 (Mic 2 / Aux 2): Volume

Input 3 (Mic 3 / Aux 3): Volume

Bass: ±10dB @ 100Hz

Treble: ±13dB @ 10kHz

Power: On/Off Switch

Power Supply: 240V AC

Indicators: Power on LED

Protection: AC Fuse 0.5A, DC Fuse 2 x 3A (internal)





10 year warranty

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

australian made

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.
