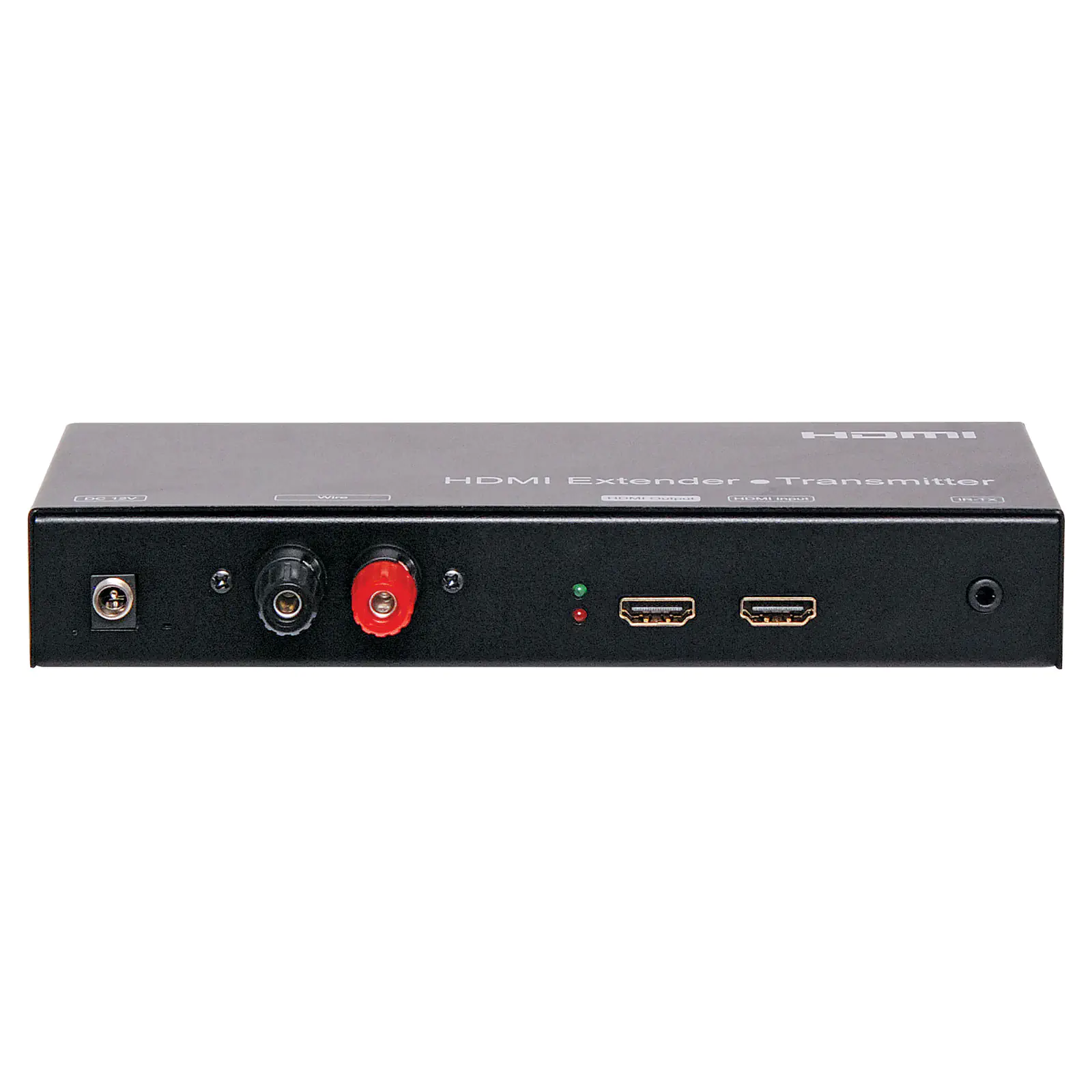

HDMI Two Core Cabling Balun Extender System Transmitter

SKU: A4125
This ingenious Foxtel compatible device allows you to extend your 1080p HDMI source over any 2-conductor cable including twisted cable, telephone cable or Cat5/6 etc. Extends a 1080p signal up to 3800m over standard figure 8 cable!
$68.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $68.18
i h

Overview

This ingenious Foxtel compatible device allows you to extend your 1080p HDMI source over any 2-conductor cable including twisted cable, telephone cable or Cat5/6 etc. We recommend 12AWG - 19AWG cable. The transmitter compresses/ converts the HDMI signals into a serial data stream, which is then encoded for transmission over any copper media. It is an ideal HDMI extender over your existing cabling. It can distribute HDMI up to 3800m. Includes power supplies and mounting hardware. Size: 206 x 110 x 33mm.

NOTE: This is not a HDMI over mains product. DO NOT CONNECT TO MAINS VOLTAGE WIRING OF ANY KIND.



Features:

  • HDMI over 2-conductor cable (Such as Twisted cable, telephone cable, Cat5e/6/7 cable etc)
  • With 1x Loop HDMI output at transmitter
  • Transmission more than 3800m
  • Support Multi-level cascading
  • HDMI Resolution up to 1080p
  • HDCP compliant
  • IR pass-through control
  • Includes power supply





Specifications:



Support Audio Format: LPCM audio format

Transmission Distance: 3800m 2-Conductor cable (Recommend to use 12AWG-19AWG cable)



Supported Video Format:

DTV/HDTV:480i/ 480P/576i/576P/720P/1080i/1080P

VESA: 800x600, 1024x768, 1280x768,1280x960,1280x1024, 1680x1050,1920x1080, 1280x720, 1360x768,1400x1050,1280x1024.



Connections on Transmitter:

1x HDMI Input, 1x HDMI Looing output

1x 3.5mm jack for IR-TX

1x Red Terminal Post, 1x Black Terminal Post

DC 5.5 x2.1mm Jack



General:

Power consumption: 6.5 Watts (maximum).

Dimension: 206Lx110Wx33Hmm

IR frequency: 38K-56KHZ

Weight: 545g

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
