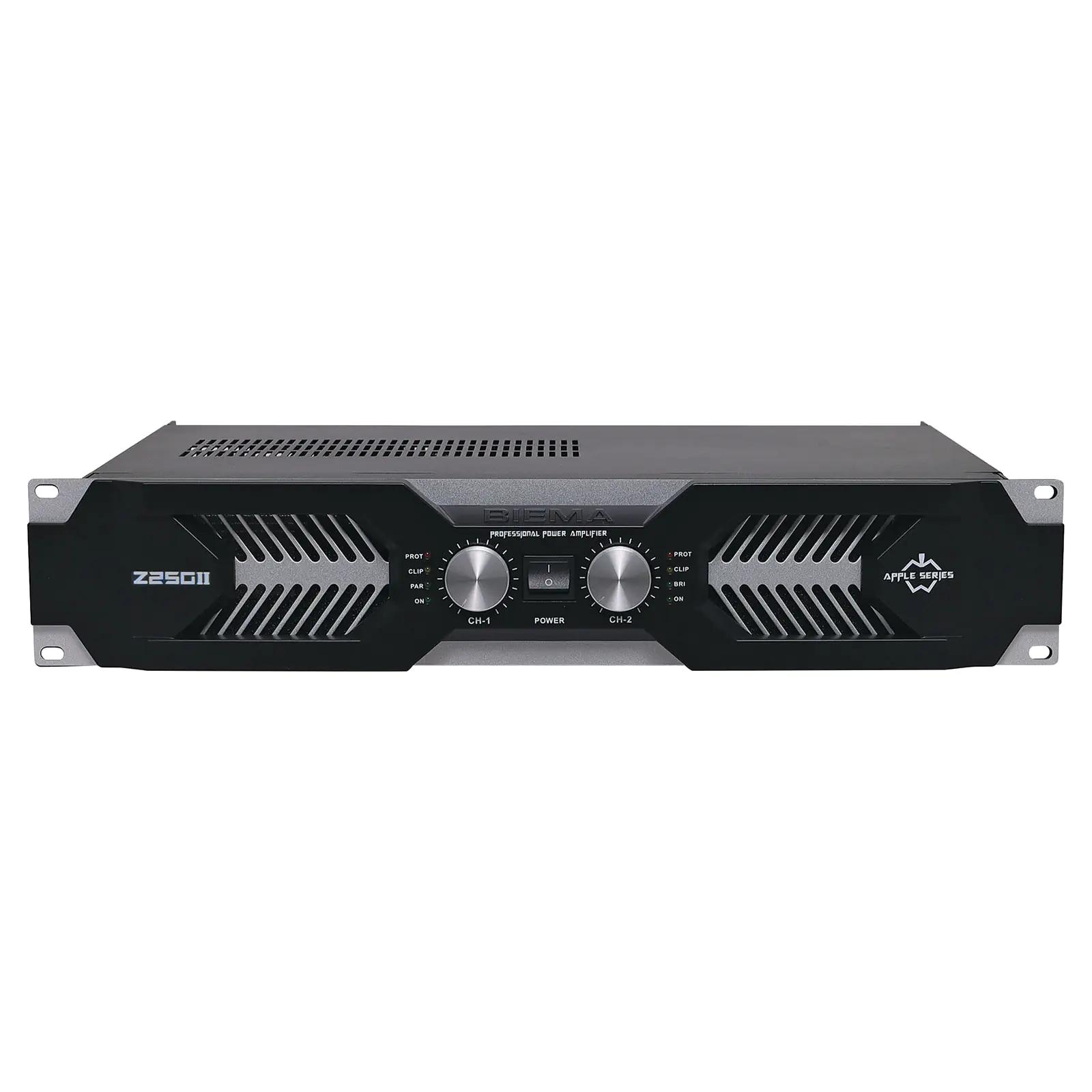

PA Amplifier Stereo/Bridgeable 2x250W

by: Biema
SKU: A4157
The Apple series Biema power amplifiers are a cost effective solution for demanding commercial audio applications. These non-bridgeable models are designed to be used as standard 2 channel or stereo amplifiers. The design incorporates a fan forced cooling system.
$590.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $590.00
2+ $531.82
i h

Overview

This series dubbed the “Apple” range have been completely redesigned by Biema to offer vastly improved cooling, efficiency and circuit protection. This range is designed to function as a high power bridgeable stereo amplifier for use in foreground sound reinforcement ie: pubs, clubs, cinemas and multi-function venues. The variable speed cooling fan and ‘T’ shaped heatsink tunnel ensure the amplifier performs well even in demanding conditions. The protection circuitry employed ensures the integrity of the amplifier during overload condition, output terminal short circuit and output clipping.


Specifications:

Output Power (Stereo 8O): 250W + 250W

TA 1KHz THD=1% (4Ω): 370W + 370W

Bridge 8Ω: 740W

Frequency Response: 20Hz-20KHz +/-0.5dB

Input Sensitivity: 0.77V

Maximum input level: 18dB/6.2V

Input Impedance active balanced: 20KOHMS/Balanced, 10KOHMS/un-Balanced

Signal/noise ration a-weighted RMS: =95dB

Crosstalk at rated output power (8Ω 1kHz): >70dB

Damping Factor (f=1kHz 8Ω): >240

Slew rate internal: 15V/us

Protection: Short circuit, current limited DC fault AC line fuse, thermal cut off, power up/down transients

Indicators: POWER (BLUE) PROT (RED) CLIP (YELLOW) BR (GREEN) PAR (GREEN)

Cooling: Variable Speed Fan

Front Panel Controls: LEVEL ACH, BCH POWER SWITCH

Rear Panel Controls: STEREO/BRIDGE/PARALLEL MODE SWITCH

Connector: XLR BALANCED INPUT, PROFESSIONAL SPEAKON OUTPUT

Power consumption half power 8Ω: <740W

Power Supply: 240V AC/50Hz

Interior Dimensions: 482 x 325.5 x 88mm

Exterior Dimensions: 555 x 415 x 168mm

Net Weight: 9kg

Gross Weight: 10kg

Details

Products specifications

Warranty 2 Years
Professional Audio
Type Power PA Amplifiers
Output Stereo Amplifiers

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
