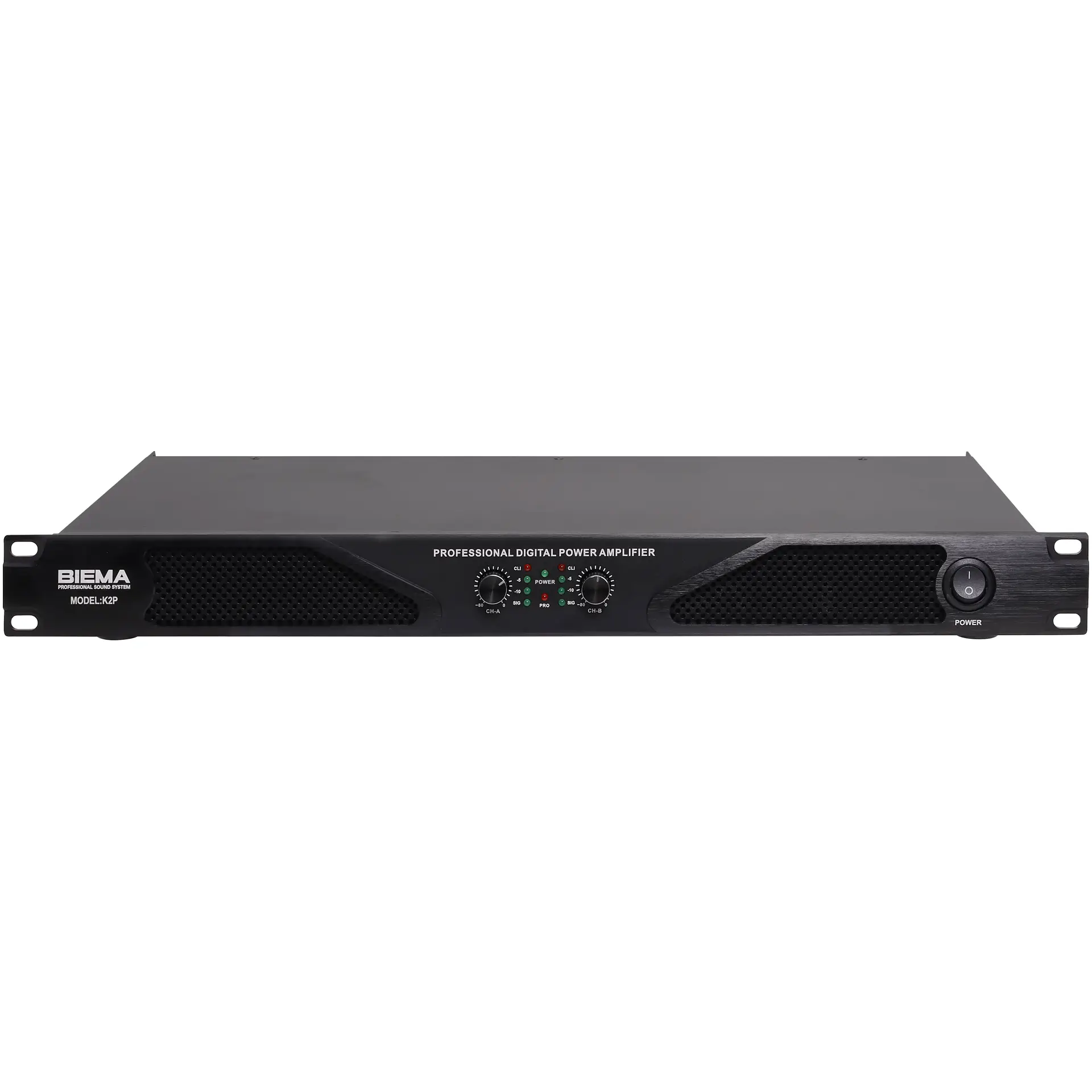

PA Amplifier Stereo/Bridgeable 2x800W

by: Biema
SKU: A4178
This compact, affordable series of amplifiers offer high power audio output within a single rack unit of space.
$680.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $680.91
2+ $613.64
i h

Overview

This compact, affordable series of amplifiers offer high power audio output within a single rack unit of space. The design has been tailored for maximum efficiency and low heat generation with clean, distortion free audio even at high volumes. They are dedicated stereo amplifier designs capable of running 4 or 8 Ohm speaker systems. Ideal for foreground sound reinforcement ie: pubs, clubs, cinemas and multi-function venues.  The protection circuitry employed ensures the integrity of the amplifier during overload condition, output terminal short circuit and output clipping. Each channel is fitted with a dedicated level control, 3 pin XLR input, 3 pin XLR output and SpeakOn connection for speakers.



Features:

  • High efficiency compact design

  • 1RU 19” rack mount

  • Parallel or two channel stereo operation

  • 3 pin XLR inputs and outputs

  • Short circuit protection with indicator

  • Overload protection with indicator

  • Clipping prevention circuitry with indicator



Specifications:

Power: 2 x 800W 8Ω, 2 x 1250W 4Ω

Freq. response: 20Hz - 20kHz +/-0.5dB@1W@8R

Distortion: <0.1%

THD: 0.02 (@1KHz/8R)

Signal to noise ratio: >100dB

Input Impedancw: 20kΩ/Balanced, 10kΩ/Un-Balanced

Damping factor: >240

Slew rate: 15V/uS

Crosstalk: ≥65dB

Input Sensitivity: 1V

Protection: Soft start, short circuit, limiter, DC fault, AC line fuse, thermal cut

Rear control panel: On/Off controls for each channel and switches for selecting stereo or bridge mode breaker for channel. Inputs XLR female, TRS (1/4 inch): Outputs: Speakon outputs

Power supply: AC220V -240V/50-60Hz

Dimensions (mm): ≈ 482W x 370D x 44H

Weight: 7.5kg

Details

Products specifications

Warranty 2 Years
Professional Audio
Output Stereo Amplifiers
Type Power PA Amplifiers

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
