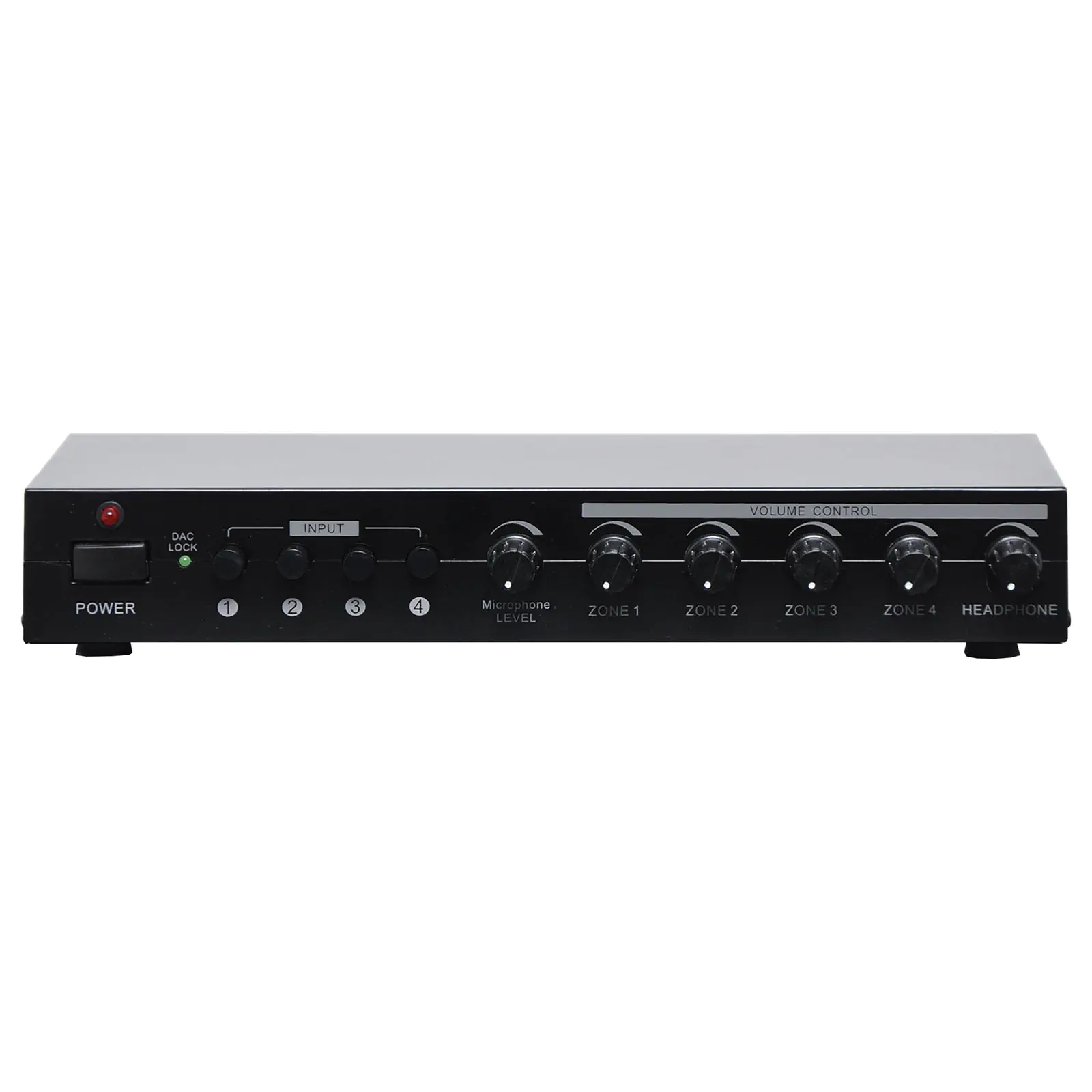

4 Input 4 Zone 30W Stereo Amplifier

SKU: A4199
Ideal for small businesses or simple multi-zone home audio systems. Switch between up to 4 different audio sources - connect up to 8 speakers. Toslink digital audio input for TV audio. Great for background music use. Also fitted with 6.35mm microphone connection.
$308.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $308.18
2+ $290.00
4+ $271.82
i h

Overview

This integrated 4 zone amplifier and source switcher is designed to power up to 8 speakers and switch between four audio sources. Connection of sources is via 6.35mm jack (microphone), 3.5mm stereo jack, stereo RCA and S/PDIF digital (coaxial or optical). It’s ideal for small businesses looking to provide background music, announcing etc using ceiling or wall speakers. Toslink audio connection is ideal for television audio. A local loop output and headphone jack connection is also provided. Each zone is fitted with its own level control to make adjustments in each area. Power supply included.



Features:

  • 4 30W stereo output zones
  • 4 inputs via 6.35mm, 3.5mm, RCA & digital (either optical or coaxial)
  • Ideal for small zoned audio requirements
  • Digital audio connection ideal for TV audio playback
  • Individual level controls on each zone output
  • Compact all metal casing
  • Power supply included





Specifications:

Amplifier type: Class D stereo

Output power: 15W RMS per channel @ 4 ohm

Distortion: 0.06%

Headphone output: 105mW RMS per channel

Headphone distortion: 0.05%

Min load: 4Ω

Current draw: 9A max.

Power: 12V DC

Dimensions: 285W x 128D x 43Hmm

Weight: 0.8kg

Details

Products specifications

Warranty 12 Months
Professional Audio
Output Stereo Amplifiers
Type Power PA Amplifiers

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
