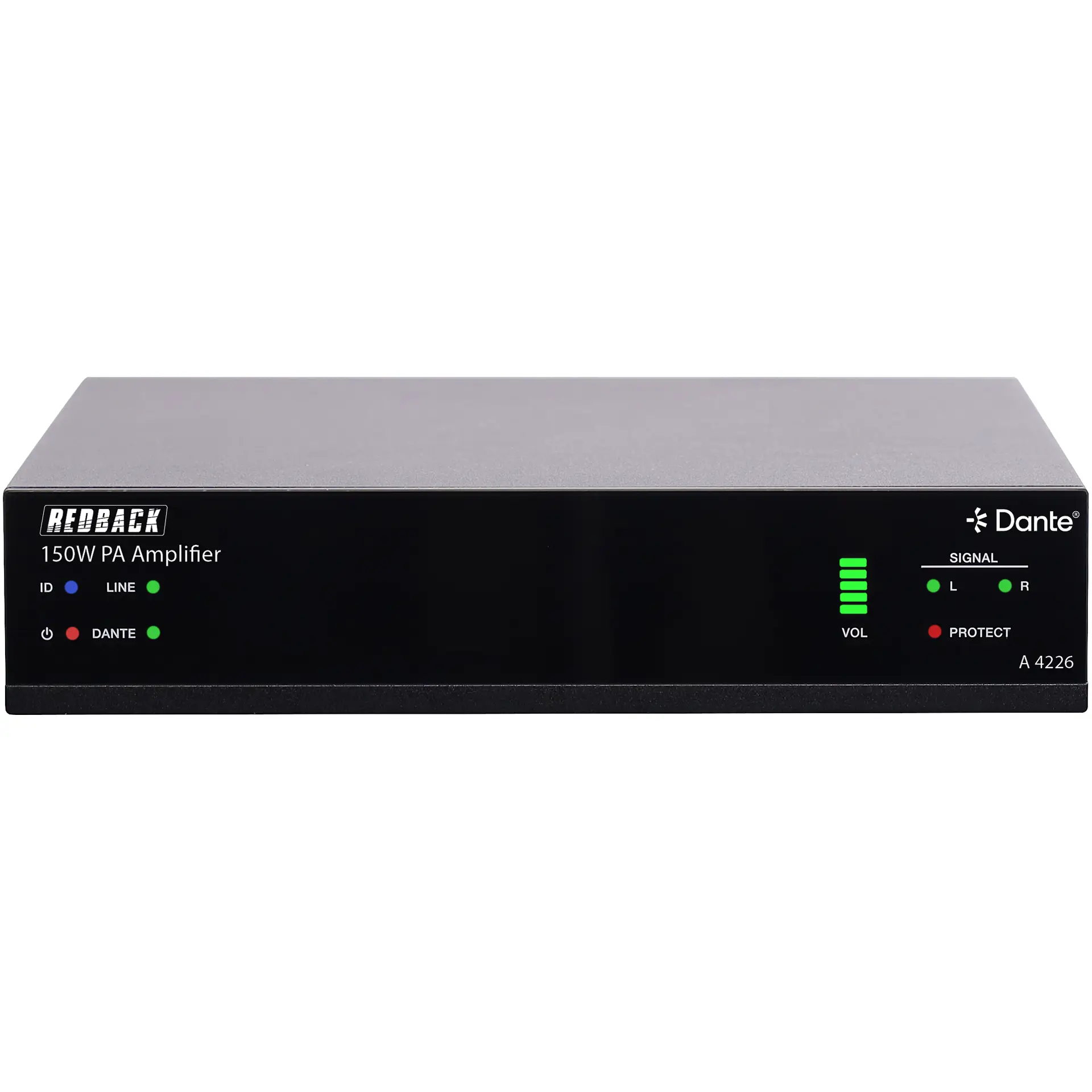

150W 100V/Stereo Class-D PA Amplifier With Dante & DSP

by: Redback
SKU: A4226
Compact amplifier featuring Dante connectivity and in-built DSP, provides the latest technology for digital ready PA systems while offering the flexibility of 150W 100V line or 2x75W stereo operation.
$1,000.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $1,000.00
2+ $900.00
4+ $800.00
i h

Overview

This compact amplifier featuring Dante connectivity provides the latest technology for digital ready PA systems while offering the flexibility of 150W 100V line or 2x75W stereo operation (plus bridging mode if needed). This amplifier can be completely controlled over Dante using standard web based GUI, allowing it to be utilised across small or large scale PA installations where IP based devices are required. It also features a built in digital signal processor (DSP) and RS-232 interface.



Features:

  • Flexible 4-8 Ohm or 70V/100V line output.
  • Dante® 2CH digital audio, balanced or unbalanced line level analog inputs.
  • Dante® 2CH digital audio, balanced or unbalanced line level analog and amp outputs
  • Built-in audio DSP processor
  • Control via RS-232, LAN and Web GUI
  • Half rack design/one rack design





Specifications

Technical

Input: 2x Dante® Network audio input, 2x LINE balanced/unbalanced stereo 2Vrms input

Output: 2x Dante® Network audio output, 1x Constant voltage 70V/100V speaker output , 2x LINE balanced/unbalanced stereo output

Input Sensitivity: 2Vrms

Output Power: DC power supply: 2x 75W@4Ω/8Ω; 1x 150W@8Ω/16Ω; 1x 150W@70V/100V

Maximum Voltage Gain: 27 - 30dB SE/39 - 42dB BTL

Amplifier Type: Class D

Frequency Response: 20Hz - 20kHz @ ±1dB

Signal to Noise Ratio 87dB, 20Hz - 10kHz

THD+N: THD+N (1KHz@1W) 0.04%

Control: RS-232, Web GUI

ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)


Audio Formats

LINE IN [Analog audio, Balanced/unbalanced 2CH, Max input level 2Vrms]

LINE OUT [Analog audio, Balanced/unbalanced 2CH, Max output level 2Vrms]

Dante® [Digital audio 2x2 in/out, PCM 2CH 44.1K-96KHz 16/24Bit]

AMP OUT [Analog audio, Balanced 2CH, Max output level 24.5Vrms]

70V/100V AMP OUT [Analog audio, Max output level 70V/100Vrms]


Connections

1x DANTE [RJ45 connector, 2CH Dante® input/output]

1x LINE IN [5pin-3.81mm phoenix connector, balanced/unbalanced 2CH]

1x LINE OUT [5pin-3.81mm phoenix connector, balanced/unbalanced 2CH]

1x 4/8Ω AMP OUT [MSTB 2.5-GF-5.08, 4pin-5.08mm locking phoenix, 2CH amplifier output]

1x 70V/100V AMP OUT [MSTB 2.5-GF-5.08, 4pin-5.08mm locking phoenix, constant voltage speaker output]

1x RS-232/TRG [5pin-3.81mm phoenix connector][TRG: 5-12V trigger input to turn on/off the amplifier]

1x LAN [RJ45 connector]


Mechanical

Housing: Front panel: Aluminum; Rear case: Metal Enclosure

Color: Black

Dimensions: 240mm [W]×210mm [D]×44mm [H]

Weight: 1.88Kg

Power Supply: DC Input: AC100 - 240V 50/60Hz

Power Consumption: 70W

Operating Temperature: 0°C ~ 40°C

Storage Temperature: -20°C ~ 60°C

Operating Humidity: 20% ~ 80% RH (relative humidity, non-condensing)

Storage Humidity: 10% ~ 90% RH (relative humidity, non-condensing)

Details

Products specifications

Warranty 2 Years, 2 Years
Professional Audio
Output 100 Volt Line Amplifiers
Type Mixer PA Amplifiers
