Australian Made

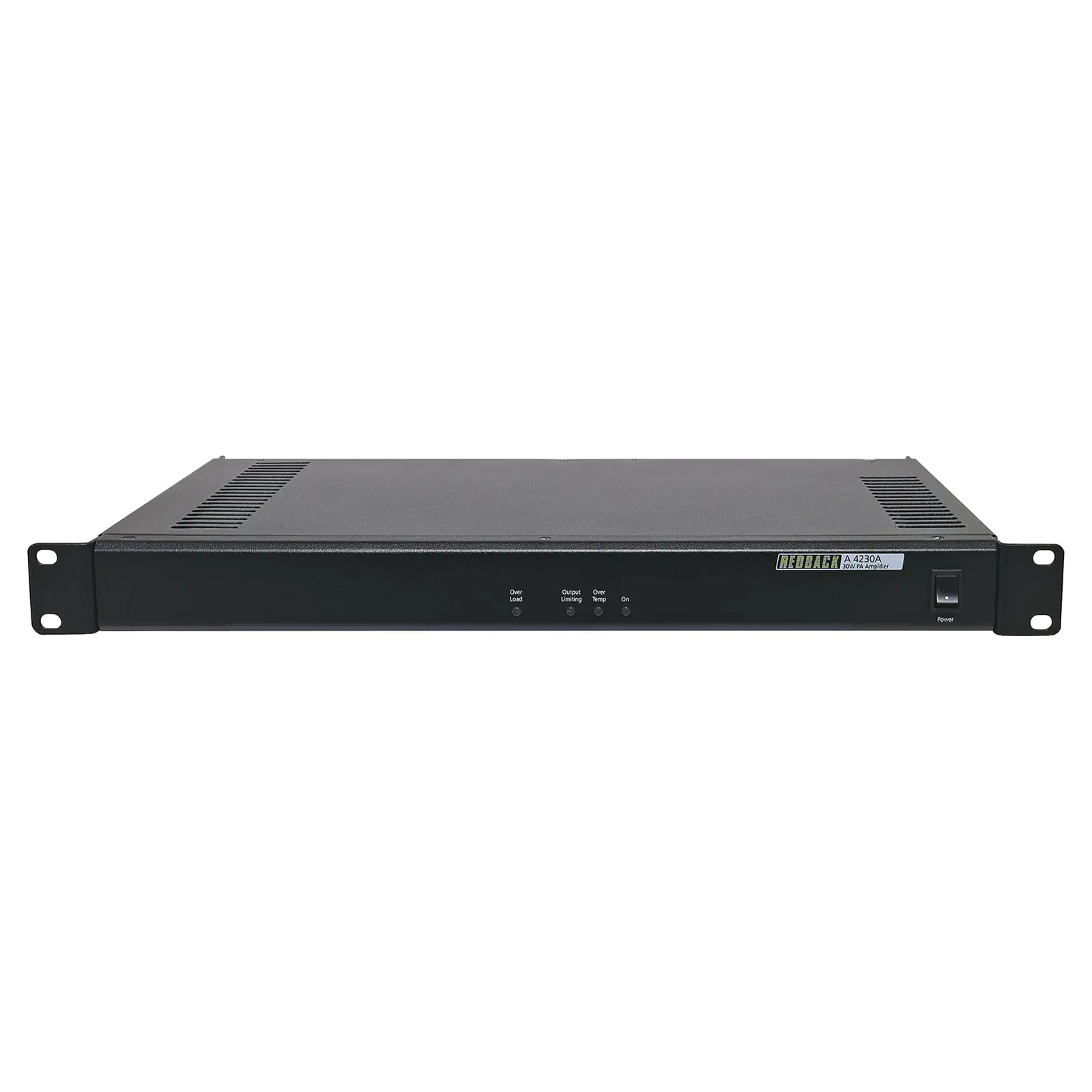

Compact 1RU Public Address (PA) 100V Amplifier 30W

by: Redback
SKU: A4230A
Utilising only 1RU of rack space, this range of Redback power amplifiers is available in three power ratings of 30W, 60W and 100W RMS. They lend themselves perfectly for installations requiring individual zone amplifiers.
$550.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $550.00
2+ $513.64
i h

Overview

These compact 1RU rack mount amplifiers are suitable for both stand alone PA system use, or as zone amplifiers in larger systems requiring local inputs. All models operate on 240V ac or 24V dc for battery backup operation. The input consists of a 3-pin XLR which can be set for either balanced mic level (3mV) or balanced line level (2V), adjusted via a rear mounted trimpot. A dual RCA input is also provided with adjustable sensitivity of either 300mV or 1V. Phantom power is also provided on the input XLR. The circuit includes protection features in case of output over voltage, over current and over temperature. All are self re-setting once the fault condition is removed. Visual indication via front panel LEDs display amplifier status at all times.



Features:

  • Compact 1RU 19” rack mount design
  • Balanced mic or line input
  • 100V line output
  • Phantom power
  • Overload limiting
  • Over voltage limiting
  • On demand fan cooling (60W and 100W versions only)
  • Over temperature shut down protection
  • Dual input connectors
  • Variable input sensitivities
  • 240V ac / 24V dc operation
  • Australian designed & manufactured





Specifications:



Power Outputs:

30 watts RMS

Distortion: < 0.5%, @ 1kHz



Frequency Response:

Mic input: 50Hz - 12kHz, -3dB

Line input: 50Hz - 15kHz, -3dB



Sensitivity:

Mic input: 3mV-2V balanced

Line input: 300mV-1V



Signal to noise ratio:

Mic input: > 75dB below rated output

Line input: > 81dB below rated output



Output Connectors:

Speakers: Screw terminals (100V line)



Input Connectors:

Inputs: 3 pin XLR balanced or 2 x RCA

24V DC power: Screw terminals

240V AC power: IEC power connector



Current Draw:

Min: 140mA

Max: 2.4A



Size & Weight:

Dimensions: ˜ 483W x 210D x 44H

Weight: ˜ 4.6kg





10 year warranty

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

australian made

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Details

Products specifications

Warranty 10 Years
Professional Audio
Type Power PA Amplifiers
Output 100 Volt Line Amplifiers
