NEW

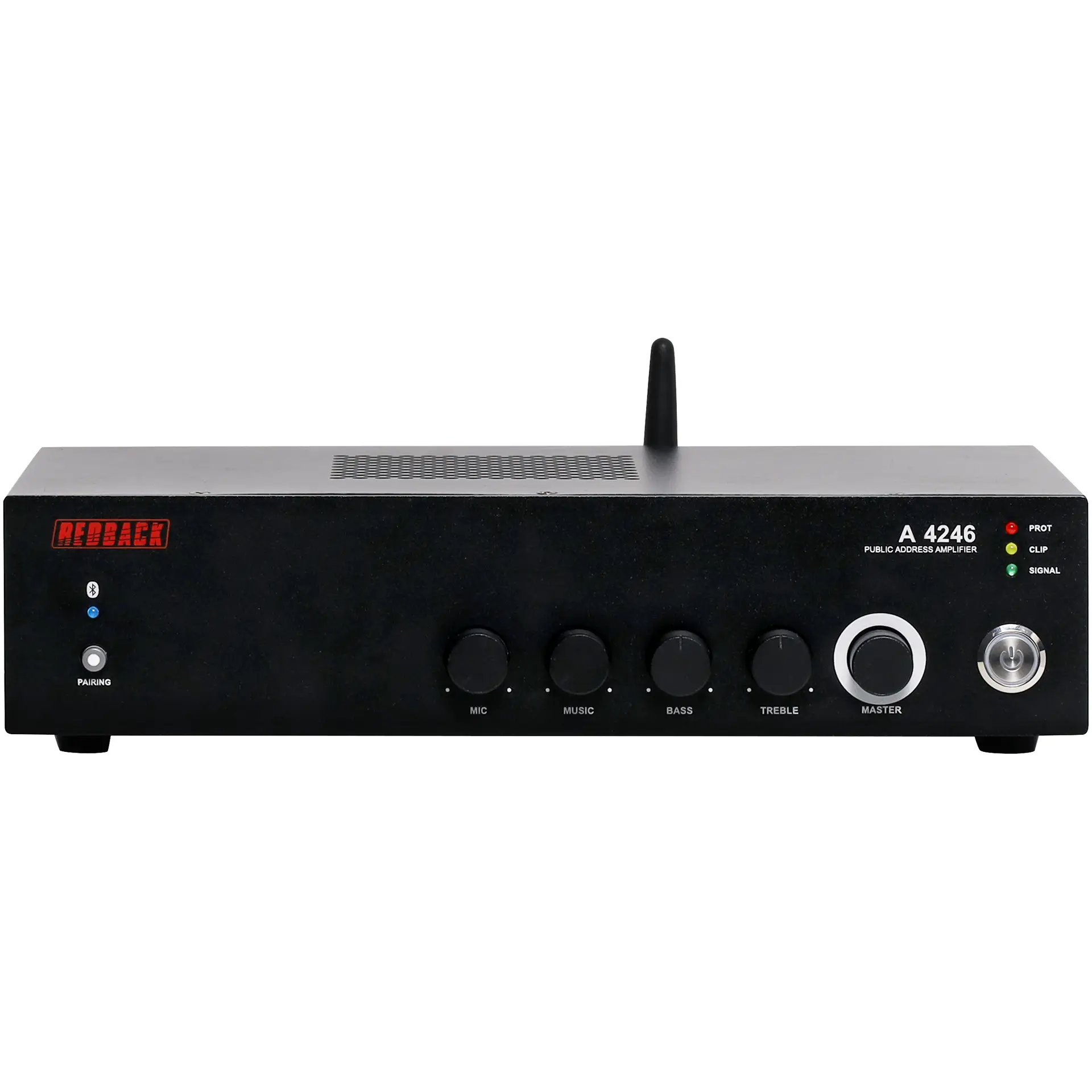

60W Public Address (PA) Amplifier With Bluetooth

by: Redback
SKU: A4246
Designed as an all-in-one compact amplifier for retail music systems and small scale PA systems requiring 100V line output, Bluetooth connectivity and telephone paging input.
Coming Soon

Overview

Designed as an all-in-one compact amplifier for retail music systems and small scale PA systems requiring 100V line output, Bluetooth connectivity and telephone paging input. This 60W desktop amplifier offers Class-D performance in a compact package with 3 pin XLR balanced input, two stereo RCA inputs (music & telephone paging), plus wireless audio streaming via Bluetooth. Also available in 30W and 120W, it makes an ideal zone amplifier or small to medium scale 100V line PA solution for retail and hospitality requirements.



Features:

  • 100V, 70V and 4Ω outputs
  • Stereo RCA music and telephone paging inputs
  • 3 pin XLR balanced microphone input
  • Adjustable VOX muting
  • Adjustable paging level
  • Ground lift switch
  • Individual mic and music level adjustment
  • Bass and treble adjustments



Specifications:

Input sensitivity for full output at maximum gain

Microphone Channels: -50dB ±3dB

LINE, AUX Channels: -6dB ±3dB

Frequency Response (@ 1W speaker out): 8Hz~17kHz



Tone Controls

100Hz, 10kHz: ±10dB ±3dB

Signal to Noise Ratio at rated power output: >80dB

Crosstalk at all control maximum: -65dB at 1kHz

Rated Output Power at THD 1.0%: 60 Watts

Rated Output Power at (THD) at 1kHz rated power: Less than 1.0%

Power Band Width at 1kHz from speaker out tap: 80Hz~17kHz with less than 1.0% THD

Mute Function Priority: Telephone paging, Mic VOX > Bluetooth > Mic, Music

Operating Temperature/Humidity at non-condensing: 0°~40°C at 90% humidity



Output Voltage and Impedance

4Ω: 15V

70V: 82Ω

100V: 166Ω



Mechanical

Cooling: Convection Cooled

Dimensions: (Width/Height/Depth) 280W x 70H x 190Dmm

Weight: 2.50kg

Details

Products specifications

Warranty 2 Years
Professional Audio
Output 100 Volt Line Amplifiers
Type Mixer PA Amplifiers, Bluetooth Amplifiers
